斗山零件查询MAIN PIPING(4) SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
222 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-00593
|
[-] |

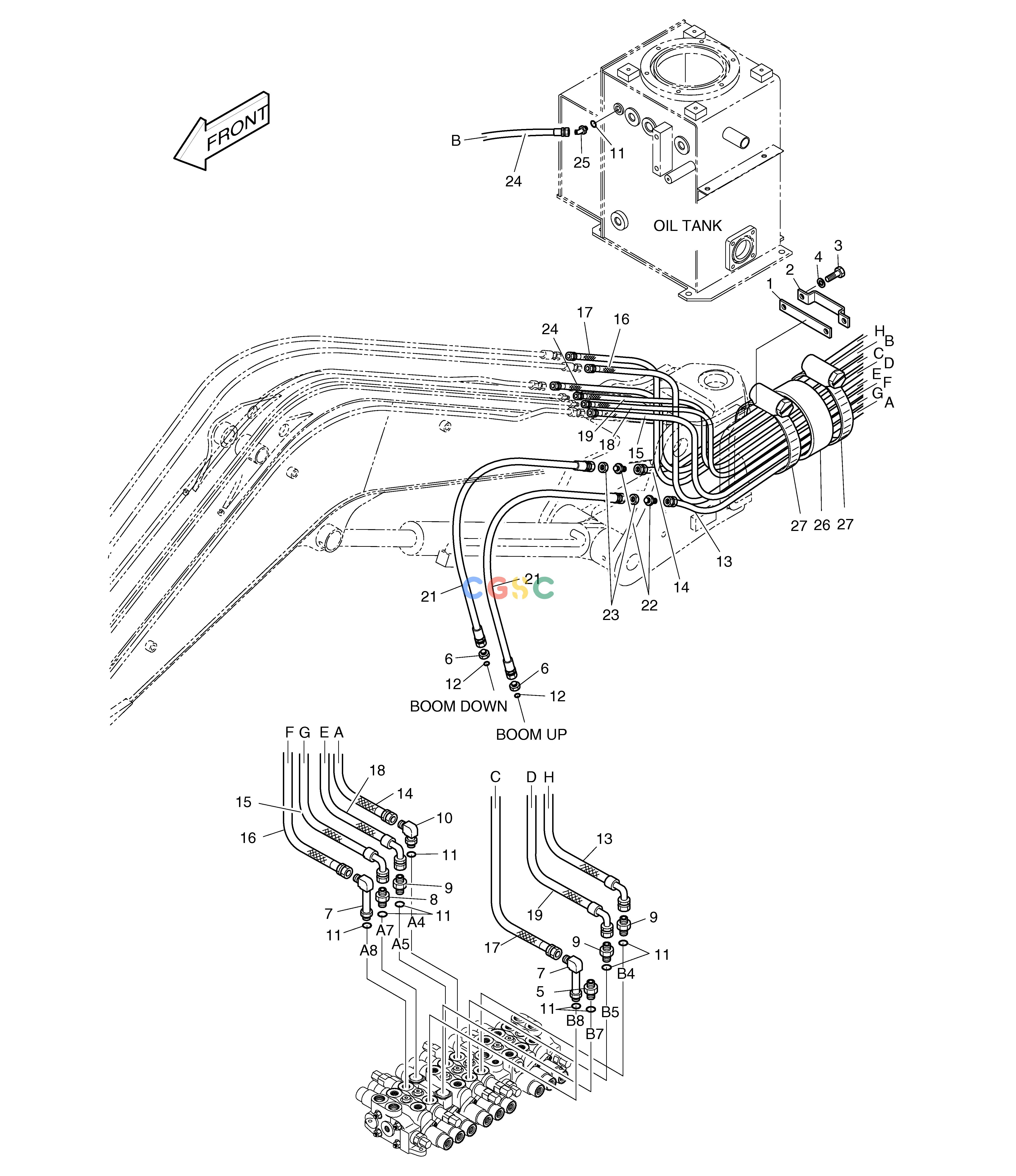

MAIN PIPING (4)
|
|
| 1. |
2124-1651A
|
[1] |
CLAMP
|
|
| 10. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 11. |
S8000141
|
[9] |
O-RING
|
|
| 12. |
S8000111
|
[2] |
O-RING
|
|
| 13. |
2184-1036D442
|
[1] |
HOSE PF1/4-1400L
|
|
| 14. |
2184-1026D451
|
[1] |
HOSE PF1/4-1350L
|
|
| 15. |
2184-1036D153
|
[1] |
HOSE PF3/8-1400L
|
|
| 16. |
2184-1026D403
|
[1] |
HOSE PF3/8-1400L
|
|
| 17. |
2184-1026D223
|
[1] |
HOSE PF3/8-1500L
|
|
| 18. |
2184-1036D443
|
[1] |
HOSE PF1/4-1370L
|
|
| 19. |
2184-1036D444
|
[1] |
HOSE PF1/4-1450L
|
|
| 2. |
2124-1630C
|
[1] |
CLAMP
|
|
| 21. |
2184-1054D66
|
[2] |
HOSE PF1/4-700L
|
|
| 22. |
2181-2178
|
[2] |
ADAPTER
|
|
| 23. |
2121-1260
|
[2] |
NUT PF1/4
|
|
| 24. |
2184-1026D453
|
[1] |
HOSE PF3/8-1550L
|
|
| 25. |
2181-2419D2
|
[1] |
ELBOW
|
|
| 26. |
160-00036
|
[1] |
PLATE;RUBBER
|
|
| 27. |
2124-1084D1
|
[2] |
CLIP;BAND
|
|
| 3. |
S0508853
|
[2] |
. BOLT
|
|
| 4. |
S5102503
|
[2] |
. WASHER
|
|
| 5. |
2181-1890D3
|
[1] |
PLUG
|
|
| 6. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 7. |
DS2281094
|
[2] |
ELBOW
|
|
| 8. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 9. |
2181-1126D36
|
[3] |
ADAPTER
|
|
