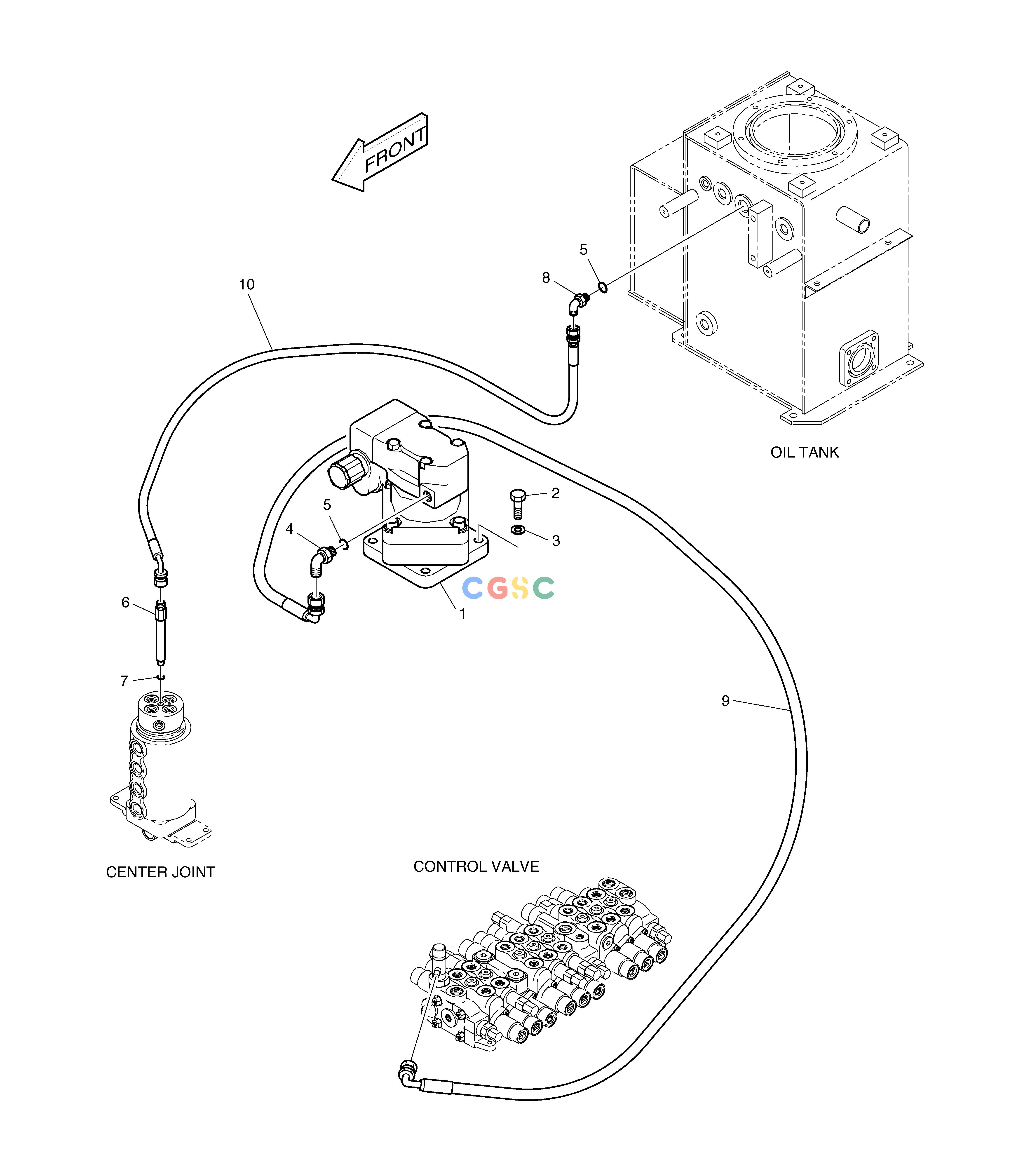

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 400-00595 | [-] | MAIN PIPING(5) | |
| 1. | 2401-9253 | [1] | SWING MOTOR | |
| 10. | 2184-1036D9 | [1] | HOSE | |
| 2. | S0515453 | [4] | BOLT | |
| 3. | S5102703 | [4] | WASHER | |
| 4. | 2181-1702D5 | [1] | ELBOW | |
| 5. | S8000141 | [2] | O-RING | |
| 6. | 2181-2740 | [1] | ADAPTER PFO1/8-PF1/4 | |
| 7. | S8000081 | [1] | O-RING | |
| 8. | 2181-1702D10 | [1] | ELBOW | |
| 9. | DS2059359 | [1] | HOSE |
