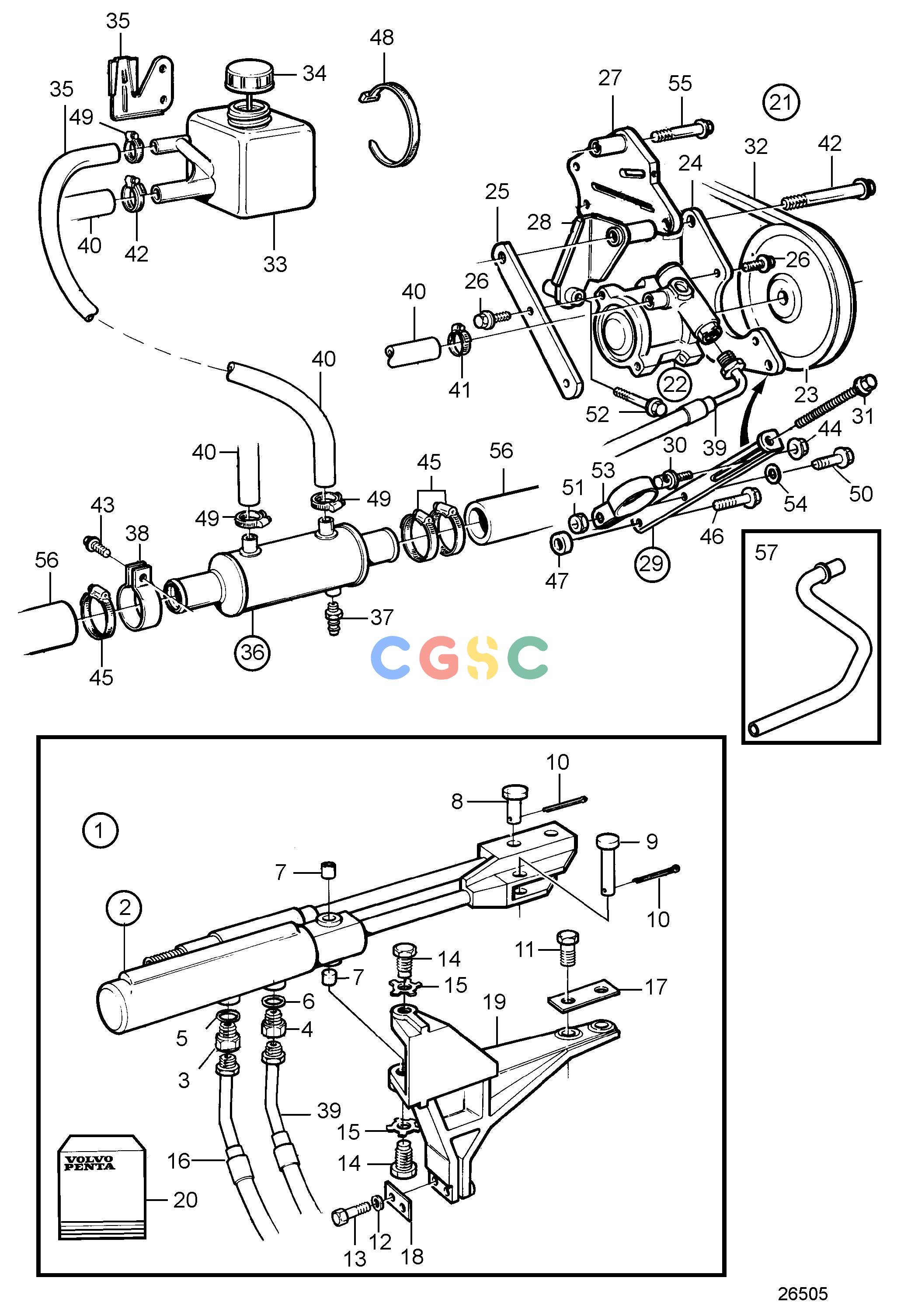

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1ESteering SystemPower SteeringEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
593 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872229
|
[1] |
Power steering kit
|
|
| 2. |
872215
|
[1] |
Steering cylinder
|
|
| 3. |
872698
|
[1] |
Nipple
|
|
| 4. |
872699
|
[1] |
Nipple
|
|
| 5. |
955985
|
[1] |
O-ring
|
|
| 6. |
955982
|
[1] |
O-ring
|
|
| 7. |
872700
|
[2] |
Bushing
|
|
| 8. |
872490
|
[1] |
Clevis pin
|
|
| 9. |
872491
|
[1] |
Clevis pin
|
|
| 10. |
949791
|
[2] |
Split pin
|
|
| 11. |
977625
|
[2] |
Hexagon screw
|
|
| 12. |
941908
|
[2] |
Spring washer
|
|
| 13. |
965185
|
[2] |
Flange screw
|
(970950)
|
| 14. |
872103
|
[2] |
Pivot pin
|
|
| 15. |
872104
|
[2] |
Lock washer
|
|
| 16. |
872217
|
[1] |
Return hose
|
|
| 17. |
872311
|
[1] |
Tab washer
|
|
| 18. |
872369
|
[1] |
Tab washer
|
|
| 19. |
872443
|
[1] |
Bracket
|
|
| 20. |
872697
|
[1] |
Sealing ring kit, steering cylinder
|
|
| 21. |
3582640
|
[1] |
Servo pump kit
|
For engines with a multi-V belt driven water pump
|
| 22. |
1359649
|
[1] |
Servo pump
|
|
| 22. |
|
|
|
|
| 23. |
1378156
|
[1] |
Pulley
|
Early type
|
| 24. |
860682
|
[1] |
Bracket
|
Early type
|
| 25. |
860683
|
[1] |
Bracket
|
Early type
|
| 26. |
946440
|
[5] |
Flange screw
|
Early type
|
| 27. |
861560
|
[1] |
Bracket
|
Early type
|
| 28. |
861659
|
[1] |
Bracket
|
|
| 29. |
861664
|
[1] |
Tensioning arm
|
|
| 30. |
861666
|
[1] |
Flange screw
|
|
| 31. |
977820
|
[1] |
Hexagon screw
|
|
| 32. |
973487
|
[1] |
V-belt
|
|
| 33. |
6819752
|
[1] |
Reservoir
|
(1359621)
|
| 34. |
1359625
|
[1] |
Cover
|
Early type
|
| 35. |
856768
|
[1] |
Bracket
|
|
| 36. |
858541
|
[1] |
Oil cooler
|
|
| 37. |
949918
|
[1] |
Shut-off cock
|
|
| 38. |
860700
|
[1] |
Attaching clamp
|
Early type
|
| 39. |
872232
|
[1] |
Pressure hose
|
|
| 40. |
941995
|
[1] |
Hose
|
L=2,5m
|
| 41. |
961664
|
[2] |
Hose clamp
|
|
| 42. |
947790
|
[1] |
Flange screw
|
|
| 43. |
946671
|
[1] |
Flange screw
|
Early type
|
| 44. |
945408
|
[1] |
Flange nut
|
|
| 45. |
961669
|
[3] |
Hose clamp
|
|
| 46. |
965183
|
[1] |
Flange screw
|
Early type
|
| 46. |
965182
|
[1] |
Flange screw
|
|
| 47. |
191172
|
[1] |
Washer
|
|
| 48. |
948211
|
[1] |
Cable tie
|
|
| 49. |
961663
|
[3] |
Hose clamp
|
|
| 50. |
946544
|
[1] |
Flange screw
|
|
| 51. |
949278
|
[1] |
Flange lock nut
|
|
| 52. |
946473
|
[1] |
Flange screw
|
|
| 53. |
860696
|
[1] |
Attaching clamp
|
|
| 54. |
955893
|
[1] |
Washer
|
|
| 55. |
|
|
|
See group 21
|
| 56. |
|
|
|
Sea water pump-oil cooler., Intake-oil cooler.
|
| 57. |
3582631
|
[1] |
Hose
|
Cooling water - pinion DPS, KAD32P-A
|
