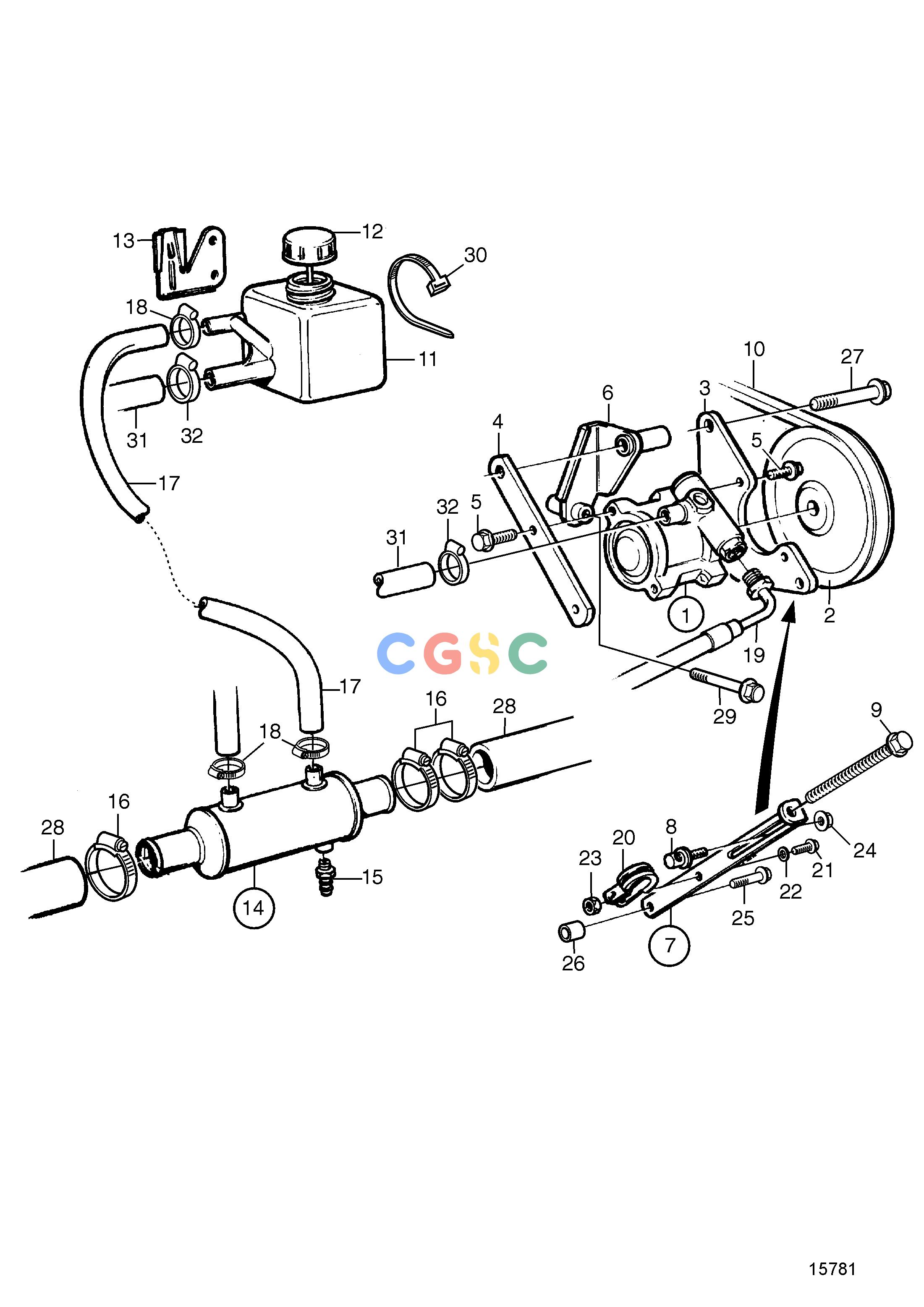

沃尔沃零件查询KAD32P; TAMD42WJ-A; KAD43P-A; KAMD43P; KAMD43P-A; KAMD43P-B; KAD44P; KAD44P-B; KAD44P-C; KAMD44P-A; KAMD44P-C; KAD300-A; KAMD300-A; HS1A; HS1ESteering SystemServo PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
451 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1359649
|
[1] |
Servo pump
|
|
| 1. |
|
|
|
|
| 2. |
1378156
|
[1] |
Pulley
|
|
| 3. |
860682
|
[1] |
Bracket
|
|
| 4. |
860683
|
[1] |
Bracket
|
|
| 5. |
|
|
|
|
| 6. |
861659
|
[1] |
Bracket
|
(860681)
|
| 7. |
861664
|
[1] |
Tensioning arm
|
(860693)
|
| 8. |
1336961
|
[1] |
Screw
|
For 1336962
|
| 8. |
861666
|
[1] |
Flange screw
|
For 977820
|
| 9. |
1336962
|
[1] |
Adjusting screw
|
M6, earlier prod
|
| 9. |
977820
|
[1] |
Hexagon screw
|
M8, later prod
|
| 10. |
973487
|
[1] |
V-belt
|
|
| 11. |
6819752
|
[1] |
Reservoir
|
|
| 12. |
1359625
|
[1] |
Cover
|
Early type
|
| 13. |
856768
|
[1] |
Bracket
|
|
| 14. |
858541
|
[1] |
Oil cooler
|
|
| 15. |
949918
|
[1] |
Shut-off cock
|
|
| 16. |
961669
|
[3] |
Hose clamp
|
|
| 17. |
|
|
|
|
| 18. |
|
|
|
|
| 19. |
|
|
|
|
| 20. |
952640
|
[1] |
Clamp
|
|
| 21. |
946544
|
[1] |
Flange screw
|
|
| 22. |
955893
|
[1] |
Washer
|
|
| 23. |
949278
|
[1] |
Flange lock nut
|
|
| 24. |
945408
|
[1] |
Flange nut
|
|
| 25. |
965182
|
[1] |
Flange screw
|
|
| 26. |
191172
|
[1] |
Washer
|
|
| 27. |
947790
|
[1] |
Flange screw
|
|
| 28. |
861738
|
[1] |
Hose
|
LP4967
|
| 29. |
946473
|
[1] |
Flange screw
|
|
| 30. |
948211
|
[1] |
Cable tie
|
|
| 31. |
941995
|
[1] |
Hose
|
|
| 32. |
|
|
|
|
