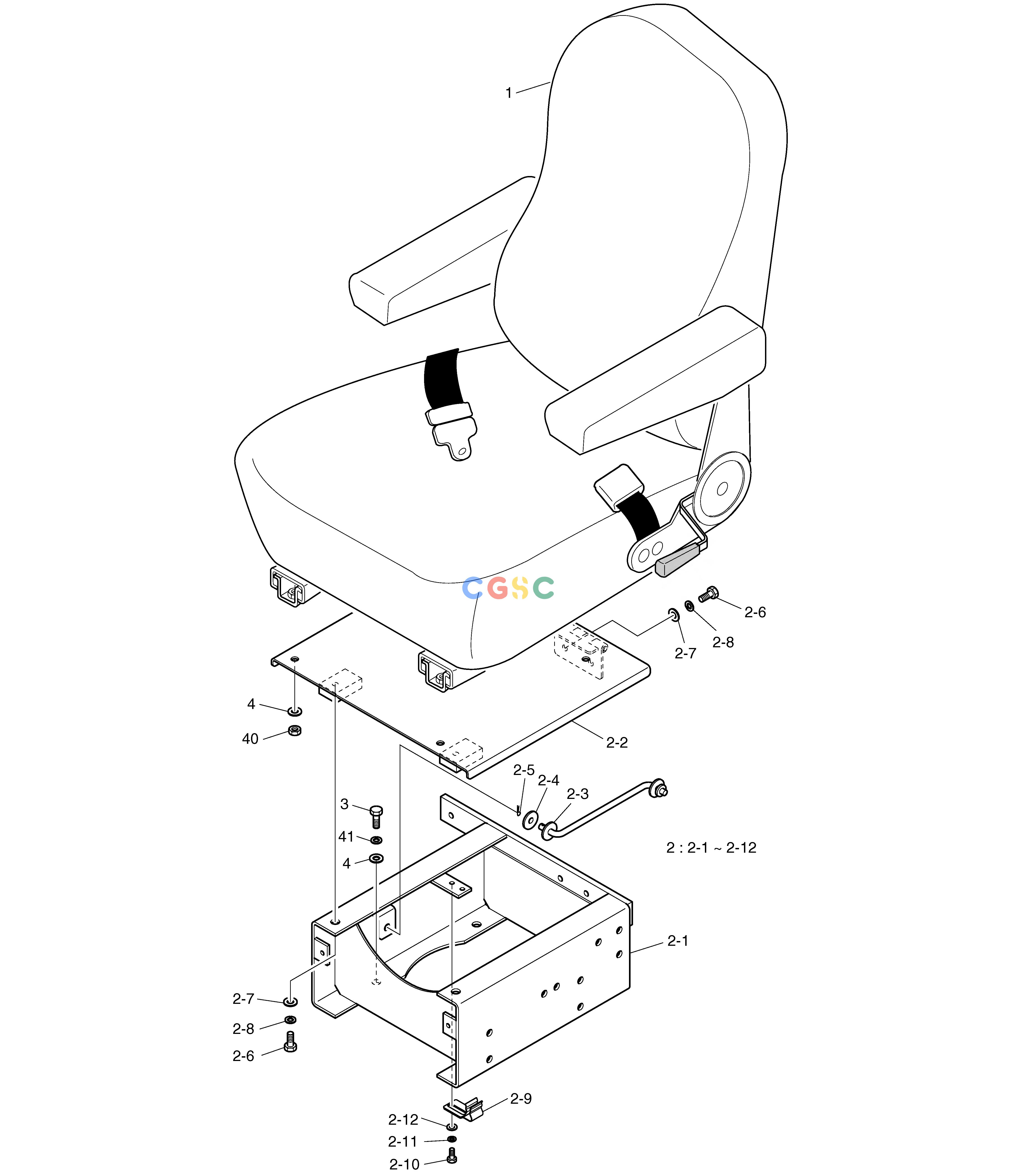

斗山零件查询SEAT SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
761 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
195-01095G
|
[-] |
STAND ASS'Y
|
|
| 1. |
901-00016A
|
[1] |
SEAT
|
|
| 2. |
195-01058B
|
[1] |
BRACKET;SEAT MOUNTING
|
|
| 2-1. |
195-01059B
|
[1] |
BRACKET;SEAT
|
|
| 2-10. |
S0504453
|
[2] |
BOLT
|
|
| 2-11. |
S5102303
|
[2] |
. WASHER
|
|
| 2-12. |
S5010313
|
[2] |
WASHER
|
|
| 2-2. |
191-01292A
|
[1] |
PALTE;SEAT
|
|
| 2-3. |
145-00019
|
[1] |
STAY
|
|
| 2-4. |
2114-1058D29
|
[1] |
WASHER
|
|
| 2-5. |
2705-9002
|
[1] |
PIN
|
|
| 2-6. |
2120-2166D5
|
[6] |
BOLT
|
|
| 2-7. |
2114-1898D2
|
[6] |
WASHER
|
|
| 2-8. |
2114-2031D4
|
[6] |
WASHER
|
|
| 2-9. |
4130-1014C
|
[1] |
SPRING(R.H)
|
|
| 3. |
2120-2166D5
|
[4] |
BOLT
|
|
| 4. |
2114-1898D2
|
[8] |
WASHER
|
|
| 40. |
2121-1311D2
|
[4] |
NUT
|
|
| 41. |
2114-2031D4
|
[4] |
WASHER
|
|
