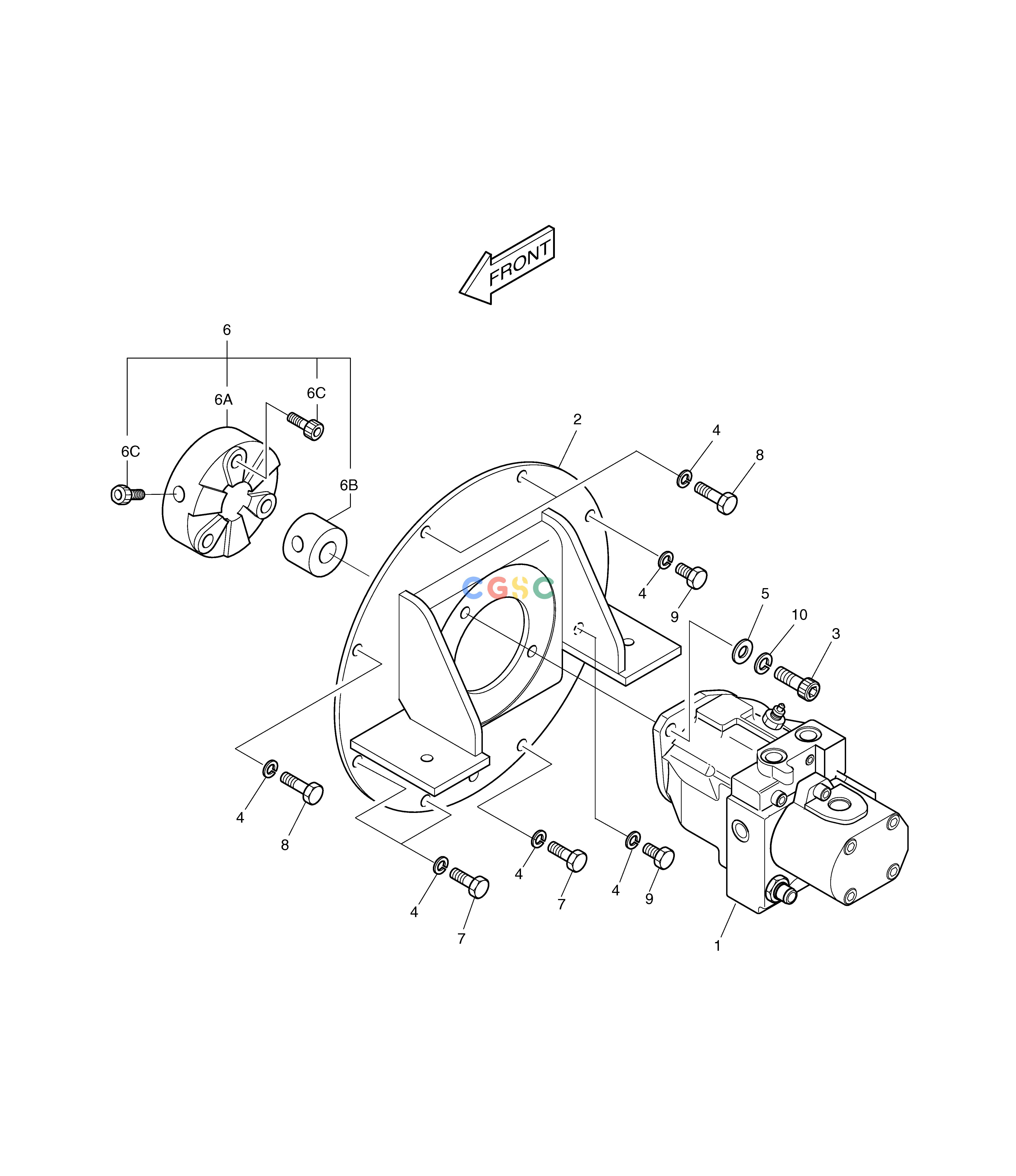

斗山零件查询PUMP SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
451 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
401-00105
|
[-] |
PUMP ASS'Y
|
|
| 1. |
401-00421A
|
[1] |
MAIN PUMP
|
|
| 10. |
S5102703
|
[2] |
WASHER
|
|
| 2. |
401-00108G
|
[1] |
HOUSING;PUMP
|
|
| 3. |
S2265266
|
[2] |
BOLT;SOCKET M12X1.25X30
|
|
| 4. |
S5102603
|
[8] |
. WASHER
|
|
| 5. |
2114-1058D46
|
[2] |
WASHER
|
|
| 6. |
414-00052
|
[1] |
COUPLING ASS'Y
|
|
| 6A. |
K9000413
|
[1] |
RUBBER
|
|
| 6B. |
NA00546
|
[1] |
HUB
|
|
| 6C. |
K9000414
|
[1] |
SOCKET BOLT SET(6EA)
|
|
| 7. |
S0712263
|
[3] |
BOLT M10X1.25X30
|
|
| 8. |
S0712363
|
[3] |
BOLT M10X1.25X35
|
|
| 9. |
S0711863
|
[2] |
BOLT
|
|
