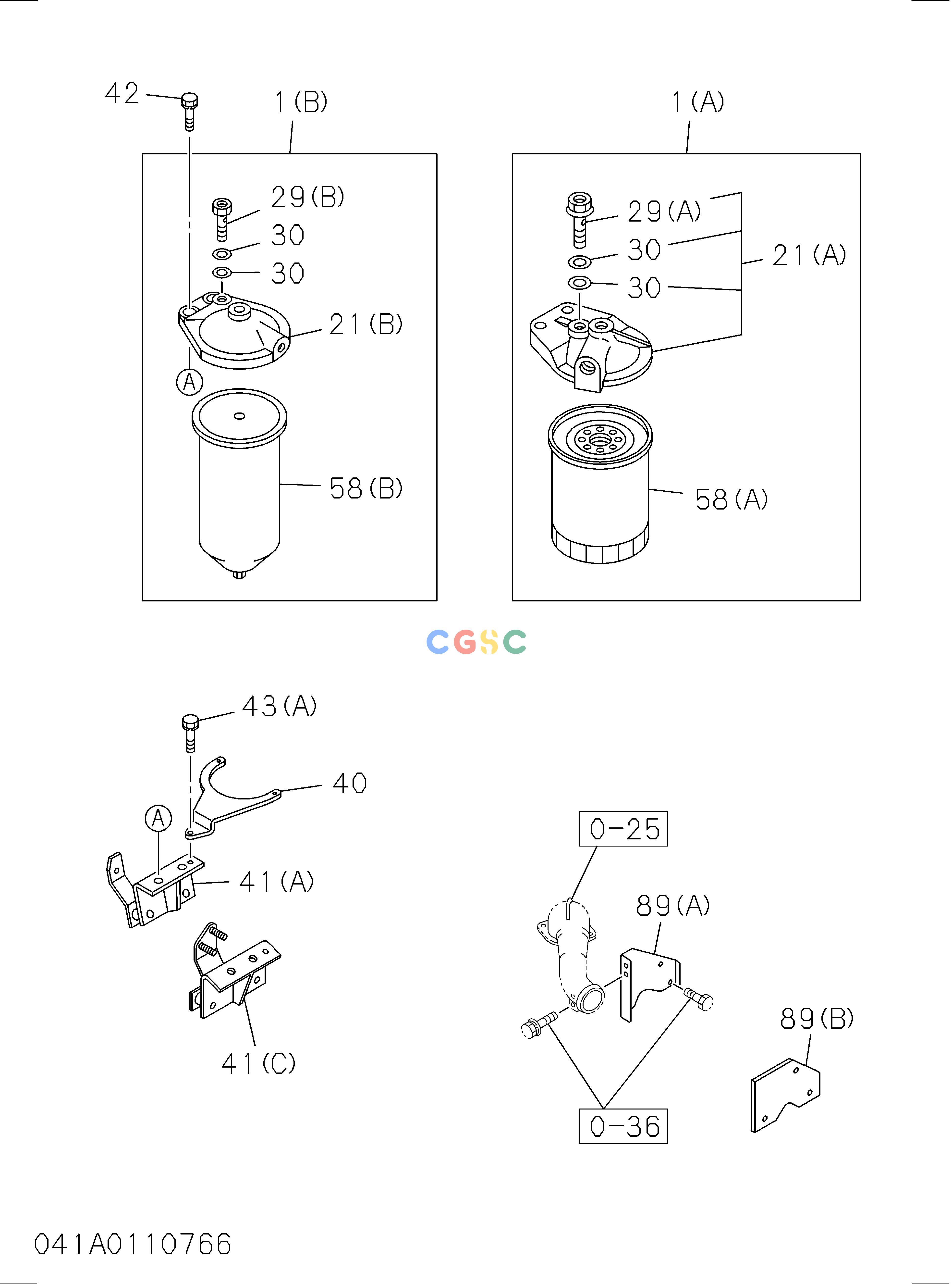

日立零件查询（CD2000）041: FUEL FILTER AND BRACKET Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
297 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001(B). | 1132006662 | [1] | FILTER ASM; FUEL | |
| 021(B). | 1132120921 | [1] | COVER; UPR,FUEL FILTER | |
| 029(B). | 1132600540 | [1] | VALVE; OVERFLOW | |
| 030. | 1096300850 | [2] | GASKET; OVERFLOW VLV | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 040. | 1197551470 | [1] | BRACKET; FUEL FILTER | |
| 041(A). | 1197551460 | [1] | BRACKET; FUEL FILTER | |
| 041(B). | 1197551660 | [1] | BRACKET; FUEL FILTER | |
| 042. | 0501410350 | [2] | BOLT; FUEL FILTER | A M10X35W/LK&PL WASHER |
| 042. | 0506410350 | [2] | BOLT; FUEL FILTER | M10X35W/LK&PL WASHER |
| 043(A). | 0501408250 | [1] | BOLT; BRKT | A M8X25W/LK&PL WASHER |
| 043(A). | 0506408250 | [1] | BOLT; BRKT | M8X25W/LK&PL WASHER |
| 043(B). | 1090200210 | [2] | BOLT; BRKT | M10X140 |
| 043(C). | 0501410350 | [2] | BOLT; BRKT | A M10X35W/LK&PL WASHER |
| 043(C). | 0506410350 | [2] | BOLT; BRKT | M10X35W/LK&PL WASHER |
| 048(B). | 8941235261 | [1] | CLIP; VINYL PIPE | ID=12 WO/PVC COATING |
| 058(B). | 1132400441 | [1] | ELEMENT; FUEL FILTER | |
| 072. | 9091104080 | [3] | NUT; BRKT,FUEL FILTER | A |
| 072. | 0911105080 | [3] | NUT; BRKT,FUEL FILTER | |
