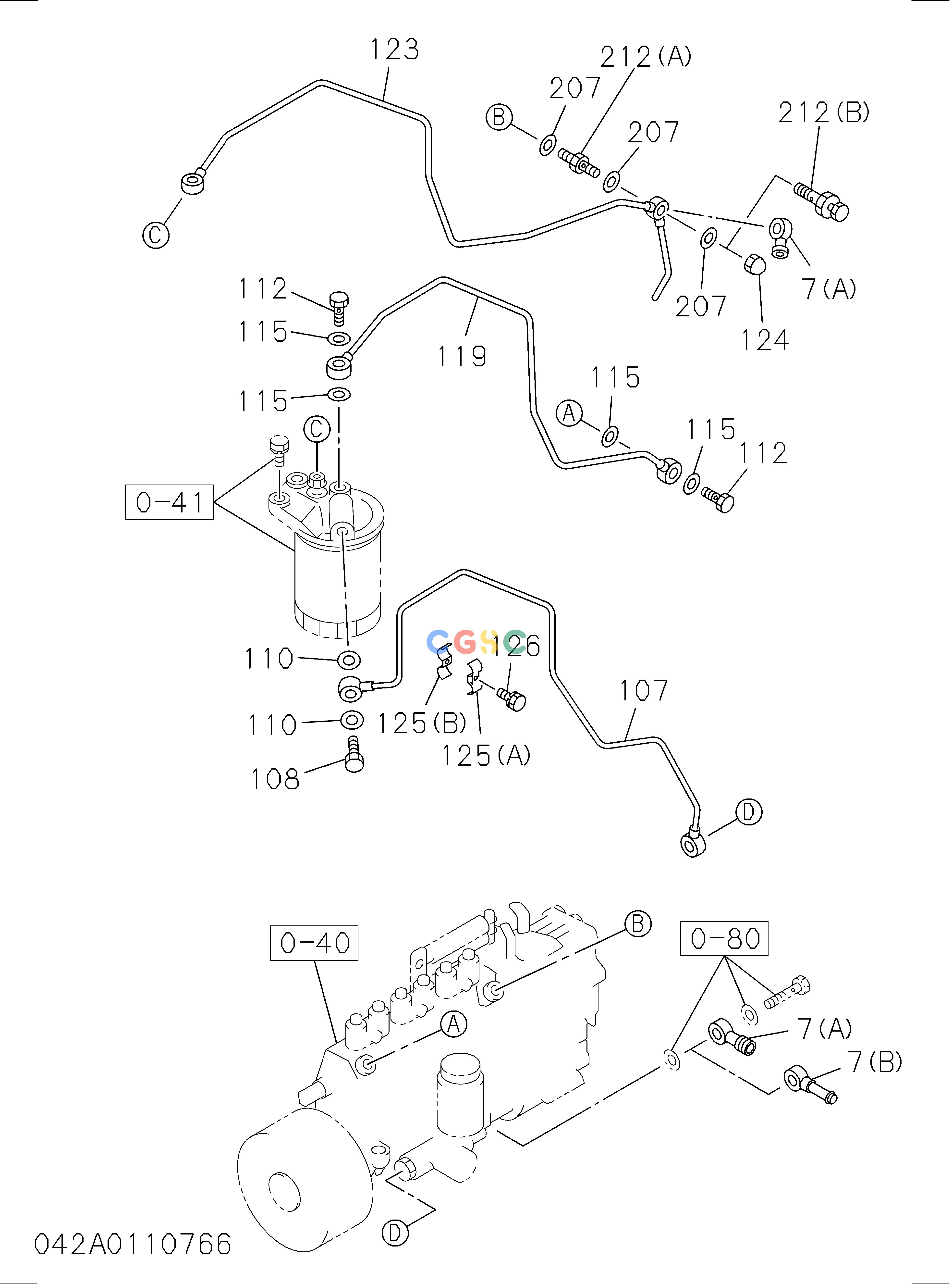

日立零件查询（CD2000）042: FUEL PUMP AND PIPE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
889 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 089(A). | 9091505080 | [4] | WASHER; LK,BRKT | A |
| 089(A). | 0915105080 | [4] | WASHER; LK,BRKT | |
| 089(B). | 9091505100 | [2] | WASHER; LK,BRKT | A |
| 089(B). | 0915105100 | [2] | WASHER; LK,BRKT | |
| 107. | 1154150020 | [1] | PIPE; FUEL,FEED PUMP TO FUEL FILTER | |
| 108. | 1096750860 | [1] | BOLT; JOINT,FUEL FILTER | M14X27 FLANGE |
| 110. | 1096300850 | [2] | GASKET; JOINT BOLT,FUEL PIPE | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 112. | 1096750860 | [2] | BOLT; JOINT,FUEL FILTER | M14X27 FLANGE |
| 115. | 1096300850 | [4] | GASKET; JOINT BOLT,FUEL PIPE | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 117. | 9095250250 | [1] | CLIP; FUEL PIPE | A ID=11 |
| 117. | 0952350250 | [1] | CLIP; FUEL PIPE | ID=11 |
| 118. | 0500408200 | [1] | BOLT; CLIP,FUEL PIPE | C M8X20 W/LK WASHER |
| 118. | 0505408200 | [1] | BOLT; CLIP,FUEL PIPE | M8X20 W/LK WASHER |
| 119. | 1154150030 | [1] | PIPE; FUEL,FUEL FILTER TO INJ PUMP | |
| 123. | 1154162090 | [1] | PIPE; FUEL,FUEL FILTER LEAK OFF | |
| 124. | 1094680021 | [1] | NUT; CAP,FUEL PIPE | |
| 125(A). | 9097161140 | [2] | CLIP; FUEL PIPE | |
| 125(B). | 9097161240 | [2] | CLIP; FUEL PIPE | |
| 126. | 0500406250 | [2] | BOLT; CLIP,FUEL PIPE | C M6X25 W/LK WASHER |
| 126. | 0505406250 | [2] | BOLT; CLIP,FUEL PIPE | M6X25 W/LK WASHER |
| 207. | 1096300850 | [3] | GASKET; EYE BOLT | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 212(A). | 1132600011 | [1] | VALVE; OVERFLOW | |
