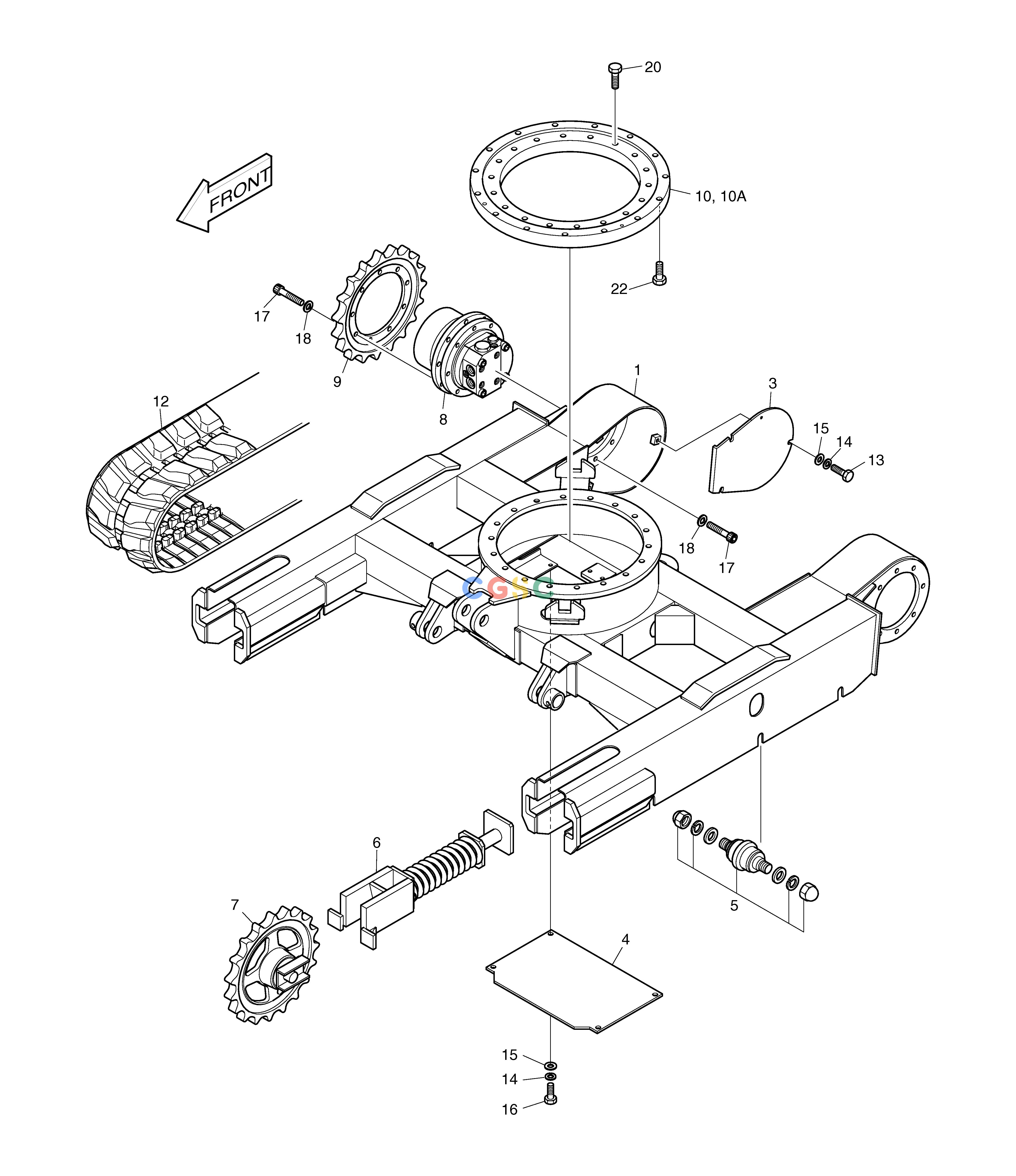

斗山零件查询TRACK FRAME-1300mm SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
948 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
604-00100
|
[-] |
TRACK ASS'Y
|
|
| 1. |
604-00092A
|
[1] |
FRAME;TRACK
|
|
| 10. |
109-00130
|
[1] |
BEARING;SWING
|
|
| 10A. |
180-00297D1
|
[1] |
SEAL
|
|
| 12. |
273-00038
|
[2] |
RUBBER;CRAWLER
|
|
| 13. |
S0508853
|
[6] |
. BOLT
|
|
| 14. |
S5102503
|
[10] |
. WASHER
|
|
| 15. |
S5010513
|
[10] |
WASHER
|
|
| 16. |
S0508453
|
[4] |
BOLT
|
|
| 17. |
S2212061
|
[34] |
BOLT;SOCKET M10X1.5X25
|
|
| 18. |
S5110601
|
[34] |
WASHER;SPRING M10
|
|
| 20. |
S0515561
|
[18] |
BOLT M12X1.75X45
|
|
| 22. |
S0760761
|
[18] |
BOLT M12X1.25X50
|
|
| 3. |
2621-3902A
|
[2] |
COVER
|
|
| 4. |
2621-3903B
|
[1] |
COVER
|
|
| 5. |
270-00008
|
[6] |
ROLLER;TRACK
|
|
| 6. |
2440-9266A
|
[2] |
CYLINDER;GREASE
|
|
| 7. |
270-00010
|
[2] |
IDLER;FRONT
|
|
| 8. |
401-00422
|
[2] |
MOTOR;TRAVEL
|
|
| 9. |
2108-1044
|
[2] |
SPROCKET
|
|
