斗山零件查询TRAVELING PIPING SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
674 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

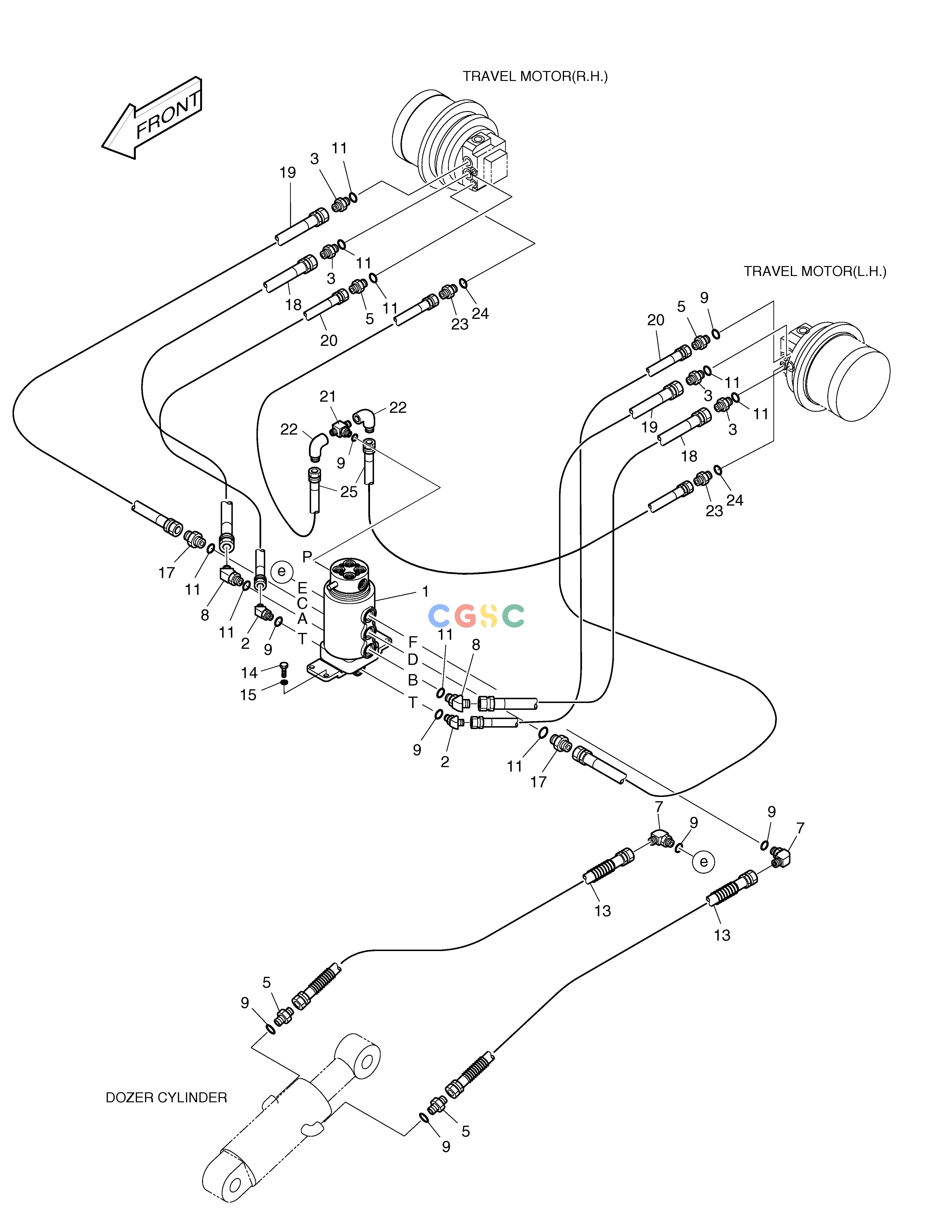

400-00576
|
[-] |
TRAVELING PIPING
|
|
| 1. |
2480-9028A
|
[1] |
JOINT;CENTER
|
|
| 11. |
S8000141
|
[8] |
O-RING
|
|
| 13. |
2184-1054D45
|
[2] |
HOSE PF1/4-550L
|
|
| 14. |
S0508853
|
[4] |
. BOLT
|
|
| 15. |
S5102503
|
[4] |
. WASHER
|
|
| 17. |
2181-1702D10
|
[2] |
ELBOW
|
|
| 18. |
2184-1026D449
|
[2] |
HOSE PF1/4-850L
|
|
| 19. |
2184-1060D237
|
[2] |
HOSE PF1/4-850L
|
|
| 2. |
2181-2419D1
|
[2] |
ELBOW
|
|
| 20. |
2184-1045D90
|
[2] |
HOSE PF1/4-800L
|
|
| 21. |
2181-2281D18
|
[1] |
TEE PFO1/4-2PT1/8
|
|
| 22. |
181-00412
|
[2] |
ELBOW PT1/8-PF1/8
|
|
| 23. |
2181-2739
|
[2] |
ADAPTER PFO1/8-PF1/8
|
|
| 24. |
S8000081
|
[2] |
O-RING
|
|
| 25. |
2184-1045D233
|
[2] |
HOSE PF1/8, 950L
|
|
| 3. |
2181-1126D36
|
[4] |
ADAPTER
|
|
| 5. |
2181-1126D14
|
[4] |
ADAPTER
|
|
| 7. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 8. |
2181-2419D6
|
[2] |
ELBOW PFO3/8-1/4
|
|
| 9. |
S8000111
|
[9] |
O-RING
|
|
