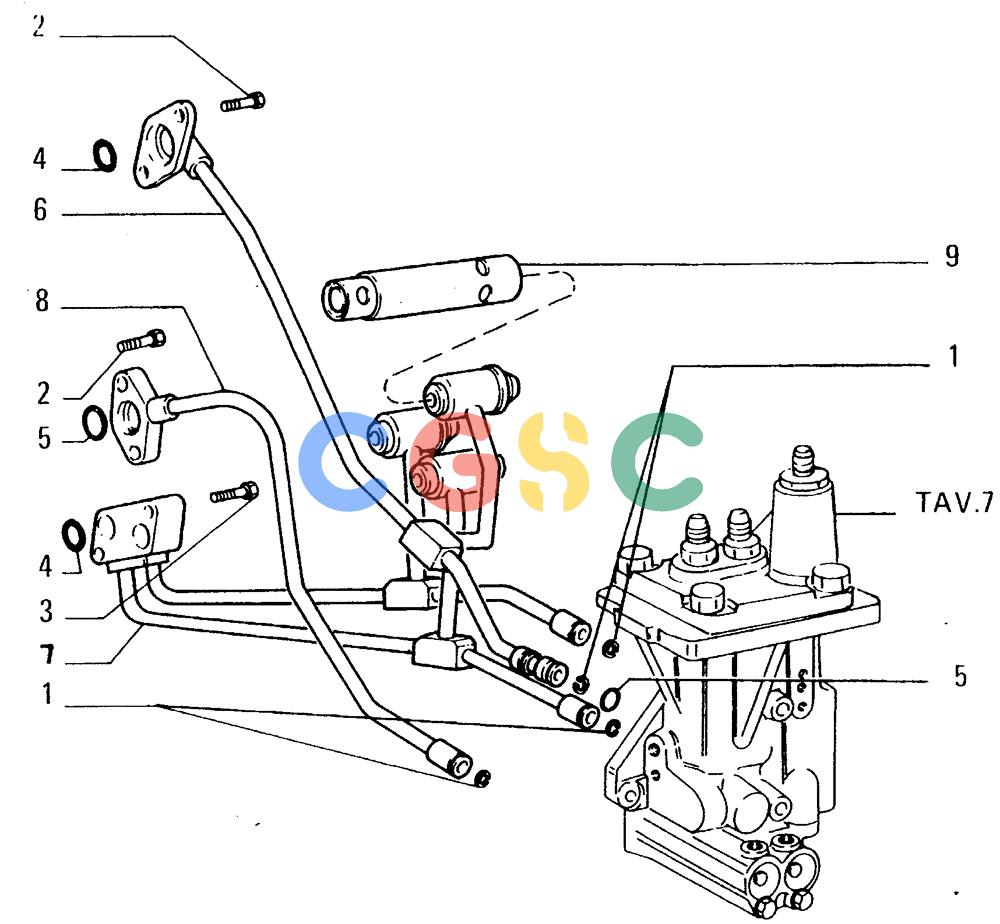

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2110[008]) - TRANSMISSION-PIPING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
839 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 586832 | [4] | CIRCLIP | LECRING |
| 2. | 10902534 | [4] | SCREW,Hex, M6 x 22mm, Cl 10.9, Full Thd | LECBOLT, Hex, M6 x 22, 10.9, Full Thd Superseded by part number: 10902531 |
| 3. | 10903234 | [2] | BOLT,Hex, M6 x 40mm, Cl 10.9 | LEC Superseded by part number: 10903231 |
| 4. | 14456881 | [3] | O-RING,0.362" ID x 0.103" Width | JES-110, Cl 7, .361" ID x .103" Thk (M9.19 ID x 2.62 Thk) |
| 6. | 79038794 | [1] | TUBE | LEC |
| 7. | 79038800 | [1] | TUBE | LEC |
| 8. | 79040811 | [1] | TUBE | LEC |
| 9. | 79053153 | [3] | HYDRAULIC VALVE | LECVALVE - ASSEMBLY SEE TAV.10 |
| 5. | 14456981 | [2] | O-RING,0.424" ID x 0.103" Width | TTF-111, Cl 7, .424" ID x .103" Thk (M10.77 ID x 2.62 Thk) |
