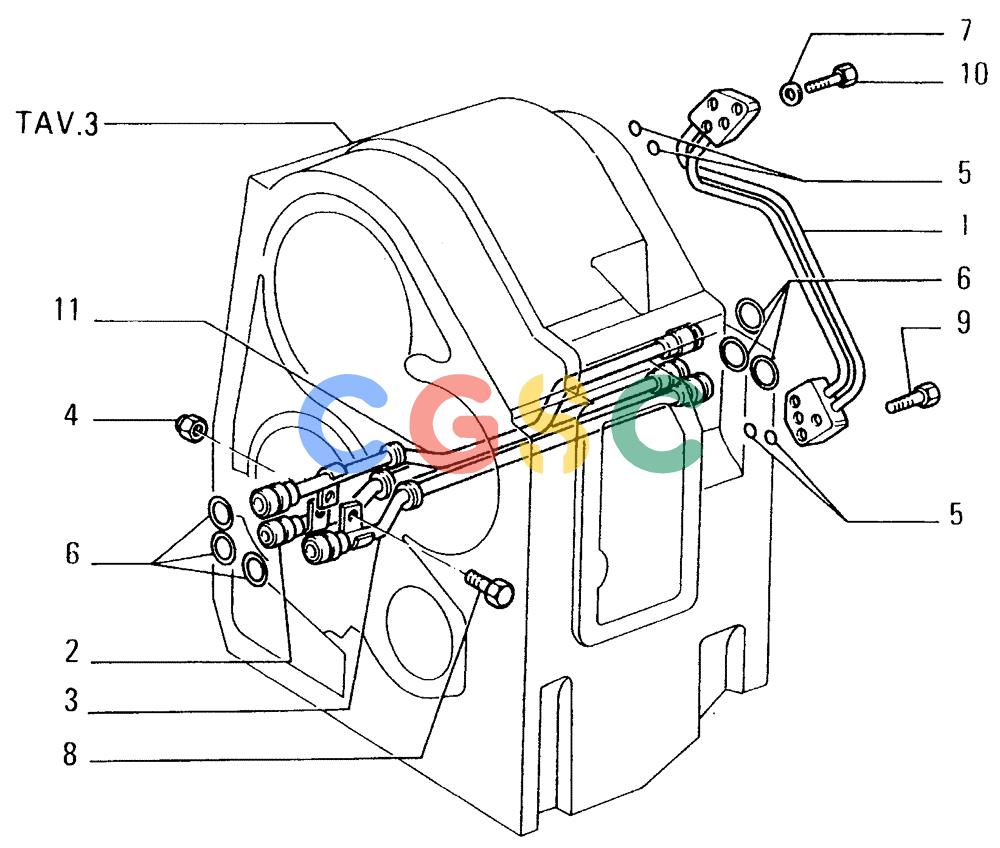

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2110[009]) - TRANSMISSION-PIPING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
511 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4962419 | [1] | TUBE | LEC |
| 2. | 4964148 | [1] | TUBE | LEC |
| 3. | 4979157 | [1] | TUBE | LEC |
| 4. | 14048221 | [1] | NUT,M8 x 1.25, Cl 10 | IMONUT, LOCK, M8 x 1.25, Cl 10 Superseded by part number: 82034883 |
| 5. | 14456881 | [4] | O-RING,0.362" ID x 0.103" Width | JES-110, Cl 7, .361" ID x .103" Thk (M9.19 ID x 2.62 Thk) |
| 7. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC8,15x17 Superseded by part number: 86624184 |
| 8. | 16043434 | [1] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | LEC Superseded by part number: 16043431 |
| 9. | 16043634 | [2] | SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd | LECBOLT, Hex, M8 x 25, 10.9, Full Thd Superseded by part number: 16043637 |
| 10. | 16043834 | [2] | BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 16605734 |
| 11. | 79038355 | [1] | TUBE,525 mm Length | LEC |
| 6. | 14456981 | [6] | O-RING,0.424" ID x 0.103" Width | TTF-111, Cl 7, .424" ID x .103" Thk (M10.77 ID x 2.62 Thk) |
