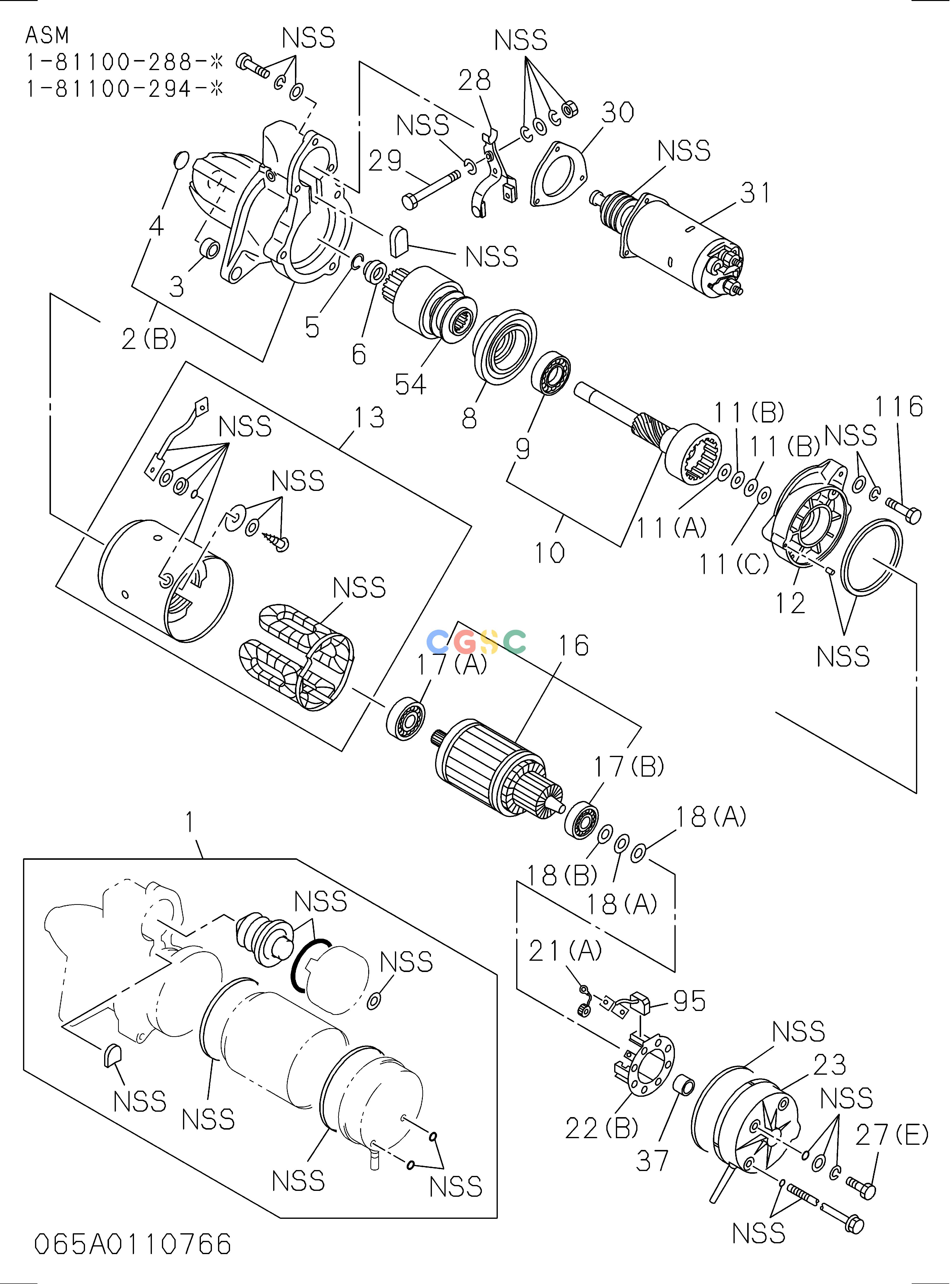

日立零件查询（CD2000）065: STARTER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
191 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 002(A). | 1811140350 | [1] | CASE; PINION,STARTER | |
| 013. | 1811110040 | [1] | YOKE; STARTER | |
| 014. | 1811295020 | [1] | GASKET; YOKE,STARTER | |
| 016. | 1811210440 | [1] | ARMATURE; STARTER | |
| 017(A). | 5098000810 | [1] | BEARING; ARMATURE,STARTER | |
| 017(B). | 1811294950 | [1] | BEARING; ARMATURE,STARTER | |
| 022(A). | 1811180430 | [1] | HOLDER; BRUSH STARTER | |
| 023. | 1811151980 | [1] | COVER; RR COVER STARTER | |
| 027(A). | 1811296750 | [1] | BOLT; THROUGH,STARTER | |
| 027(B). | 1811296760 | [1] | BOLT; THROUGH,STARTER | |
| 027(C). | 1811294830 | [3] | BOLT; THROUGH,STARTER | |
| 031. | 1811510791 | [1] | SWITCH; ENGAGE STARTER | |
| 032. | 1811295040 | [1] | COVER; RUBBER,STARTER | |
| 038. | 1811295020 | [1] | GASKET; RR COVER,STARTER | |
| 043(A). | 5811291210 | [1] | RETAINER; PINION STARTER | |
| 043(B). | 5811291270 | [1] | RETAINER; PINION STARTER | |
| 044. | 5811291200 | [5] | ROLLER; PINION STARTER | |
| 046(A). | 1811230340 | [1] | GEAR; CLU STARTER | |
| 046(B). | 1811230350 | [1] | GEAR; CLU STARTER | |
| 047. | 5811291190 | [1] | SPRING; PINION STARTER | |
| 048. | 5811290920 | [1] | BALL; PINION,STARTER | |
| 054. | 1811220490 | [1] | CLUTCH; PINION,STARTER | |
| 058. | 1811296680 | [1] | PIPE; DRAIN RR COVER STARTER | |
| 095. | 1811160480 | [2] | BRUSH SET; (+) & (-),STARTER | |
| 095. | 1811160490 | [2] | BRUSH SET; (+) & (-),STARTER | |
| 114. | 5811291260 | [2] | NUT; TERMINAL | |
| 115(A). | 5811291340 | [1] | WASHER; TERMINAL | |
| 115(B). | 5811291290 | [1] | WASHER; TERMINAL | |
