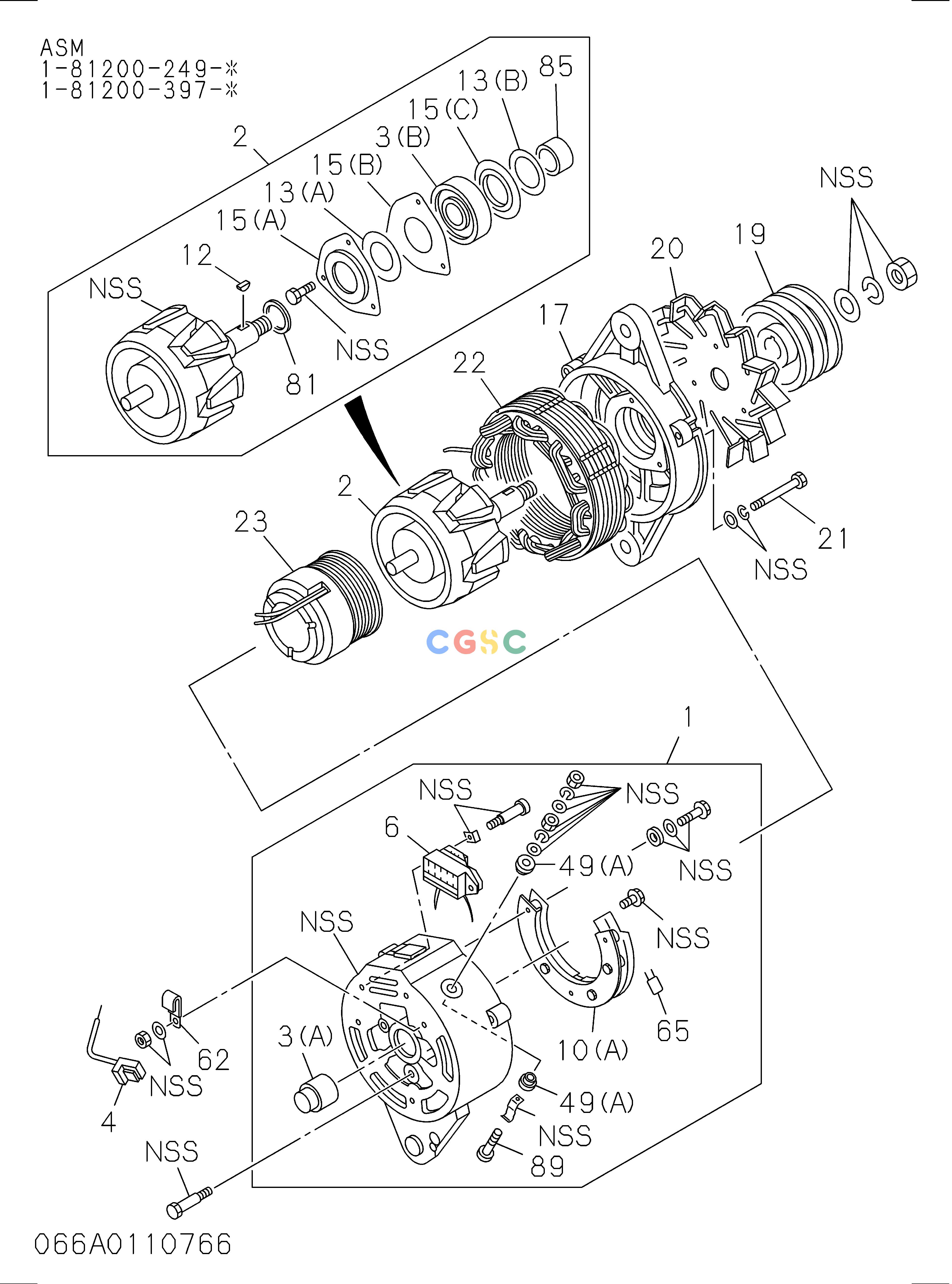

日立零件查询（CD2000）066: GENERATOR Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
339 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 002. | 1812210900 | [1] | ROTOR; GEN | |
| 003(A). | 1812296581 | [1] | BEARING; ROTOR,GEN | |
| 003(B). | 1812296591 | [1] | BEARING; ROTOR,GEN | |
| 005. | 1812294860 | [1] | HOLDER; BRUSH,GEN | |
| 006. | 1812700100 | [1] | REGULATOR ASM; VOLTAGE,GEN | |
| 010(A). | 1812190870 | [1] | RECTIFIER; GEN | |
| 010(B). | 1812190860 | [1] | RECTIFIER; GEN | |
| 011. | 1812142470 | [1] | COVER; RR,GEN | |
| 017. | 1812130770 | [1] | COVER ASM; FRT,GEN | |
| 018. | 8941679480 | [1] | NUT; PULLEY,GEN | |
| 019. | 1812221050 | [1] | PULLEY; GEN | |
| 020. | 5812230060 | [1] | FAN; GEN | |
| 021. | 5812291060 | [4] | BOLT; THROUGH,GEN | |
| 022. | 1812297410 | [1] | STATOR; GEN | |
| 023. | 1812120060 | [1] | COIL; ROTOR GEN | |
| 025(A). | 1812294100 | [2] | BUSHING; INSULATION TERMINAL | |
| 025(B). | 1812294110 | [2] | BUSHING; INSULATION TERMINAL | |
| 027(A). | 8942061860 | [2] | NUT; RECTIFIER,GEN | M6 |
| 027(B). | 8942061880 | [6] | NUT; RECTIFIER,GEN | M8 |
| 033. | 1812150390 | [1] | WIRE; LEAD,GEN | |
| 037. | 1822150540 | [1] | BUSHING; RR COVER,GEN | |
| 043(A). | 1812294640 | [3] | SCREW; RR END COVER | |
| 065. | 1841320090 | [1] | CONDENSER; GEN | |
| 079. | 9822157070 | [1] | WASHER; FELT,ROTOR,GEN | |
