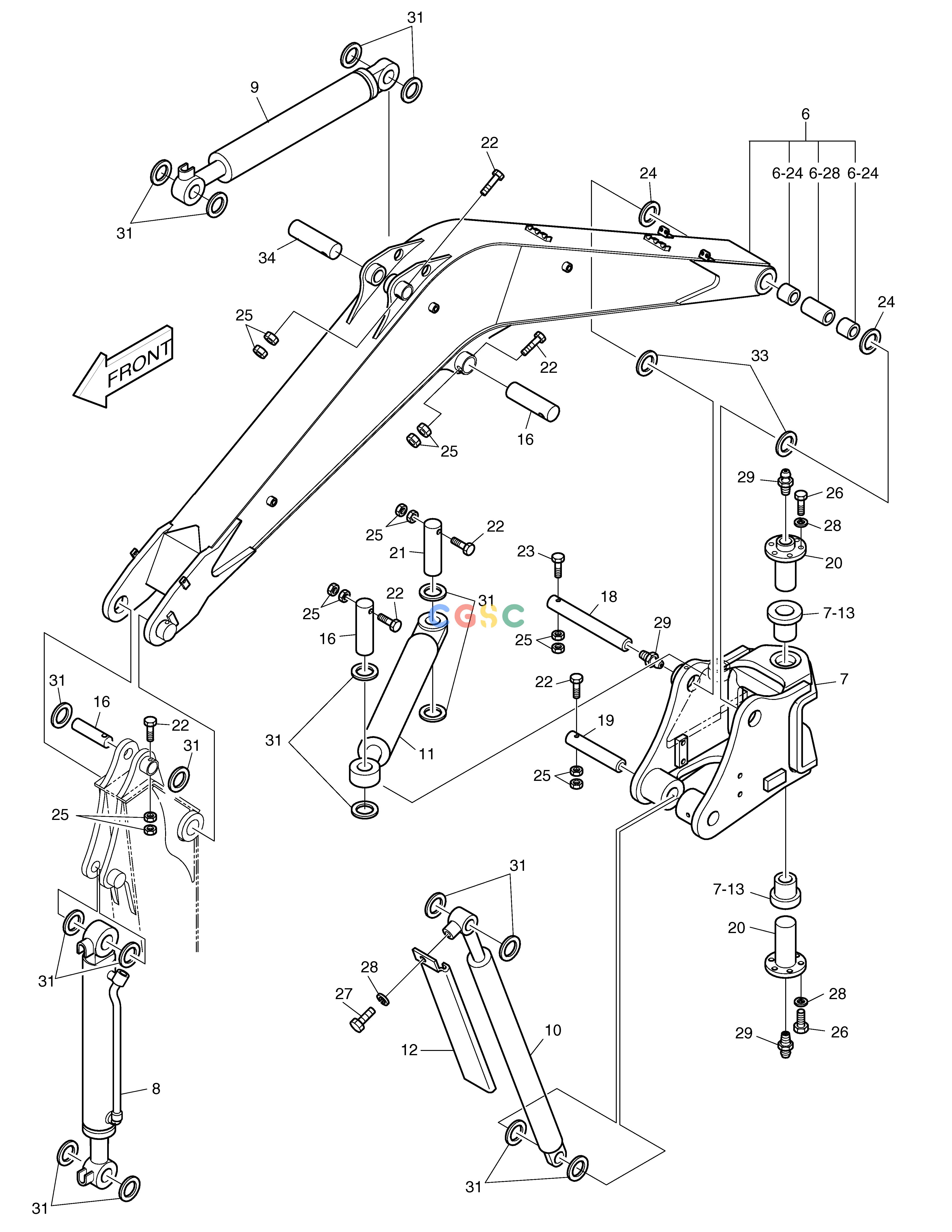

斗山零件查询FRONT-BOOM SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
452 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
700-00031
|
[-] |
FRONT ASS'Y
|
|
| 10. |
2440-9347C
|
[1] |
BOOM CYLINDER ASS'Y
|
|
| 11. |
2440-9350A
|
[1] |
CYLINDER;BOOM SWING
|
|
| 12. |
2621-3904B
|
[1] |
COVER;CYLINDER
|
|
| 16. |
2123-2311B
|
[3] |
PIN
|
|
| 18. |
2123-2293B
|
[1] |
PIN;BOOM
|
|
| 19. |
2123-2294E
|
[1] |
PIN;BOOM CYLINDER HEAD
|
|
| 20. |
2123-2295B
|
[2] |
PIN;SWING BRACKET
|
|
| 21. |
2123-2296B
|
[1] |
PIN;SWING CYLINDER HEAD
|
|
| 22. |
S0558853
|
[6] |
BOLT M10X1.5X65
|
|
| 23. |
S0558953
|
[1] |
BOLT
|
|
| 24. |
2180-1106BD21
|
[2] |
SEAL;DUST
|
|
| 25. |
S4012633
|
[14] |
NUT
|
|
| 26. |
S0515253
|
[12] |
. BOLT
|
|
| 27. |
S0514653
|
[1] |
BOLT M12X1.75X16
|
|
| 28. |
S5102703
|
[13] |
WASHER
|
|
| 29. |
S6710040
|
[3] |
NIPPLE;GREASE
|
|
| 31. |
2114-1059D229
|
[18] |
SHIM
|
|
| 33. |
2114-1059D228
|
[2] |
SHIM
|
|
| 34. |
2123-2371C
|
[1] |
PIN
|
|
| 6. |
701-00295A
|
[1] |
BOOM
|
|
| 6-24. |
2110-1312A
|
[2] |
BUSH
|
|
| 6-28. |
2114-1896
|
[1] |
SPACER
|
|
| 7. |
2707-1022C
|
[1] |
BRACKET;SWING
|
|
| 7-13. |
2110-1363
|
[2] |
BUSH
|
|
| 8. |
2440-9349A
|
[1] |
BUCKET CYLINDER ASS'Y
|
|
| 9. |
2440-9348
|
[1] |
ARM CYLINDER ASS'Y
|
|
