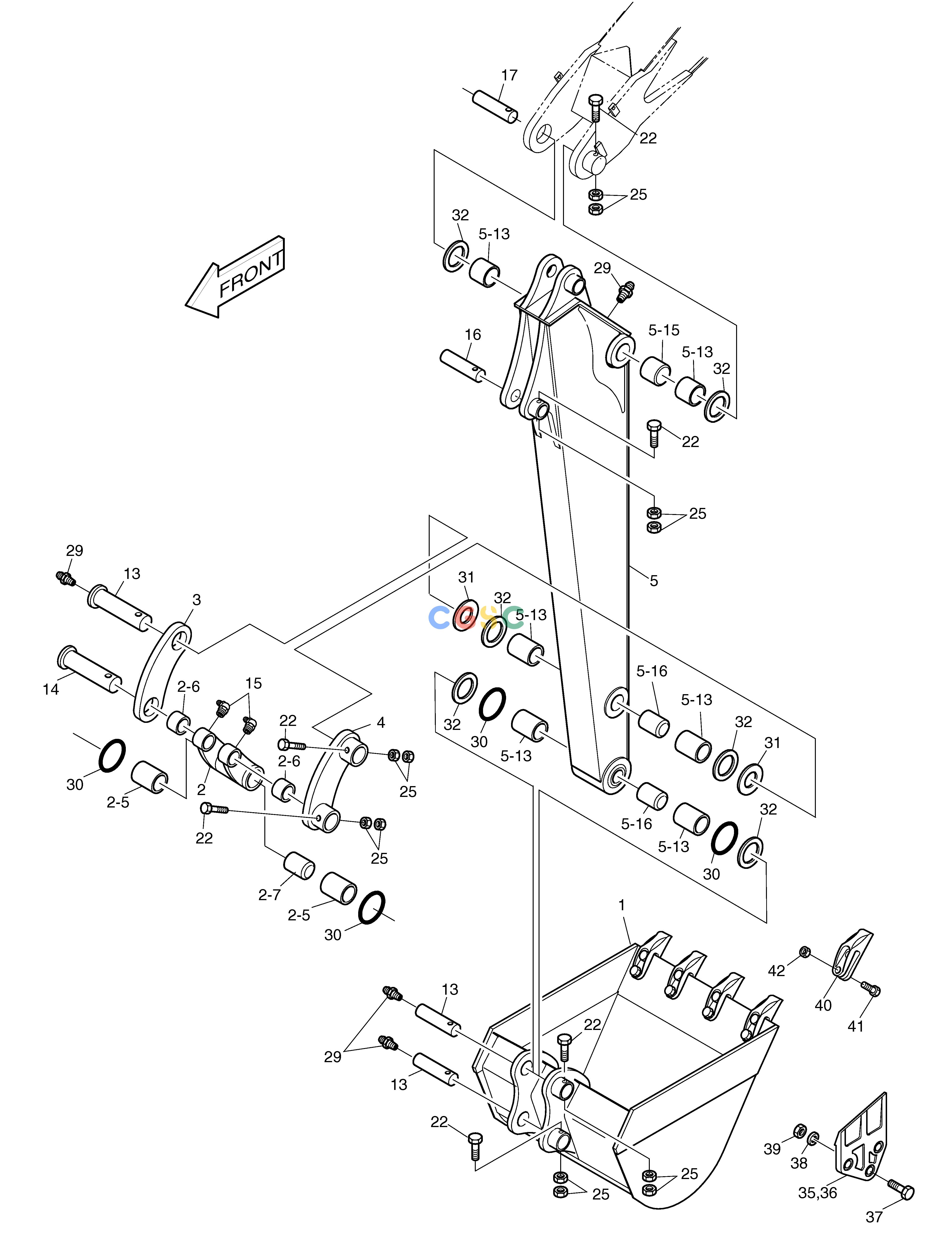

斗山零件查询FRONT-ARM SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
660 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
700-00031
|
[-] |
FRONT ASS'Y
|
|
| 1. |
2704-1527C
|
[1] |
BUCKET
|
|
| 13. |
2123-2309C
|
[3] |
PIN;BUCKET DUMP LINK
|
|
| 14. |
2123-2310B
|
[1] |
PIN;BUCKET CYLINDER ROD
|
|
| 15. |
S6710152
|
[2] |
NIPPLE;GREASE
|
|
| 16. |
2123-2311B
|
[1] |
PIN
|
|
| 17. |
2123-2292B
|
[1] |
PIN;BOOM-ARM
|
|
| 2. |
2155-1330A
|
[1] |
LINK
|
|
| 2-5. |
2110-1365
|
[2] |
BUSH
|
|
| 2-6. |
2110-1362
|
[2] |
BUSH
|
|
| 2-7. |
2114-1915
|
[1] |
SPACER
|
|
| 22. |
S0558853
|
[6] |
BOLT M10X1.5X65
|
|
| 25. |
S4012633
|
[12] |
NUT
|
|
| 29. |
S6710040
|
[4] |
NIPPLE;GREASE
|
|
| 3. |
2155-1331A
|
[1] |
BUCKET;LINK(R.H.)
|
|
| 30. |
S8000511
|
[4] |
O-RING
|
|
| 31. |
2114-1059D229
|
[2] |
SHIM
|
|
| 32. |
2180-1106BD26
|
[6] |
SEAL;DUST
|
|
| 35. |
2713-1206A
|
[1] |
CUTTER;SIDE(R.H)
|
|
| 36. |
2713-1207A
|
[1] |
CUTTER;SIDE(L.H)
|
|
| 37. |
S0515253
|
[6] |
. BOLT
|
|
| 38. |
S5102703
|
[6] |
WASHER
|
|
| 39. |
S4012733
|
[6] |
NUT
|
|
| 4. |
2155-1332A
|
[1] |
BUCKET;LINK(L.H)
|
|
| 40. |
2713-1212A
|
[4] |
TOOTH
|
|
| 41. |
2120-2124
|
[8] |
BOLT
|
|
| 42. |
2121-1301
|
[8] |
NUT
|
|
| 5. |
2701-1533C
|
[1] |
ARM
|
|
| 5-13. |
2110-1365
|
[6] |
BUSH
|
|
| 5-15. |
2114-1884
|
[1] |
SPACER
|
|
| 5-16. |
2114-1885
|
[2] |
SPACER
|
|
