纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2110[014]) - TRANSMISSION-OIL FILTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
783 次

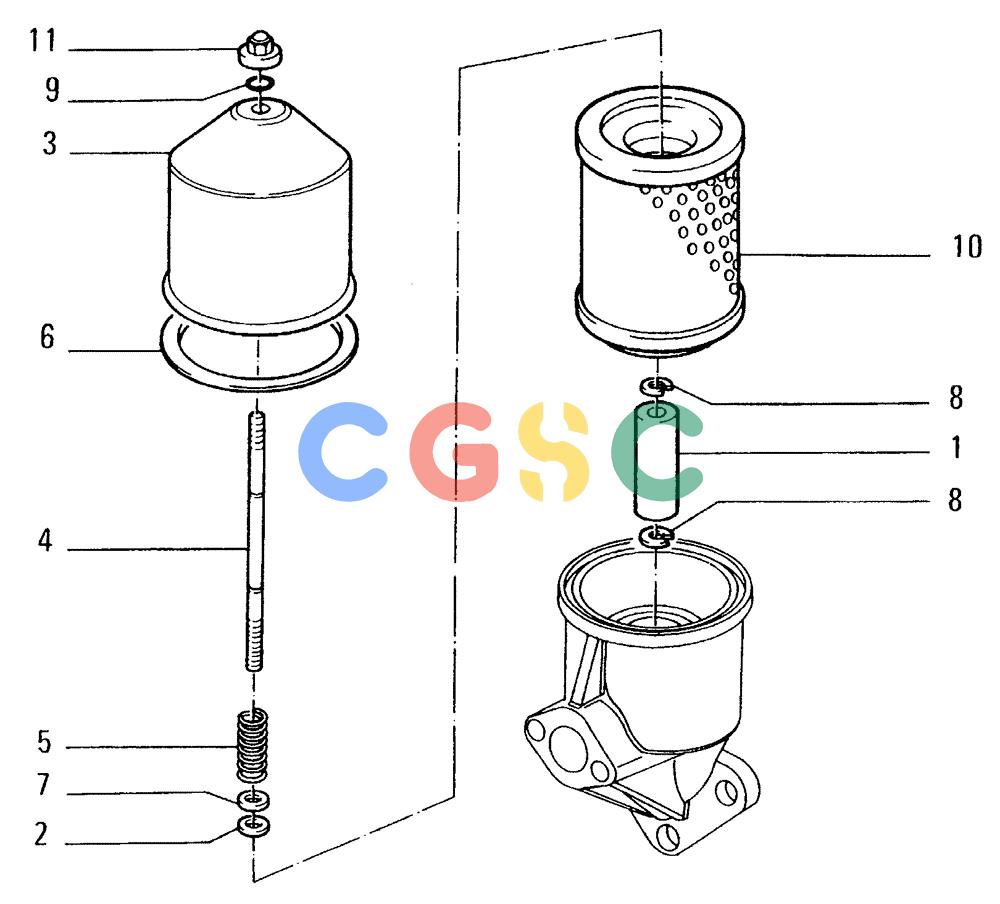

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 581492 | [1] | NIPPLE | LECMAGNETIC ROD |
| 2. | 4964396 | [1] | OIL SEAL,9mm ID x 18mm OD x 3mm Thk | LECSEAL |
| 3. | 4979711 | [1] | FILTER BOWL | LEC |
| 4. | 4979712 | [1] | STUD | LECSCREW |
| 5. | 4979713 | [1] | SPRING | LEC Superseded by part number: 75201466 |
| 6. | 4979714 | [1] | SEAL,113mm ID x 124mm OD x 2.5mm Thk | LECSEAL |
| 7. | 12638601 | [1] | WASHER,M10 x 18 x 2 | BHB Superseded by part number: 14499521 |
| 8. | 13404475 | [2] | O-RING | LECSNAP RING 9,6x1,2 Superseded by part number: 13404476 |
| 9. | 14457280 | [1] | O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro | BHB-114, 70 Duro, .612" ID x .103" Thk Superseded by part number: 14457281 |
| 10. | 79032089 | [1] | ELEMENT | LECOIL FILTER Superseded by part number: 1930743 |
| 11. | 79038352 | [1] | NUT | LEC |
