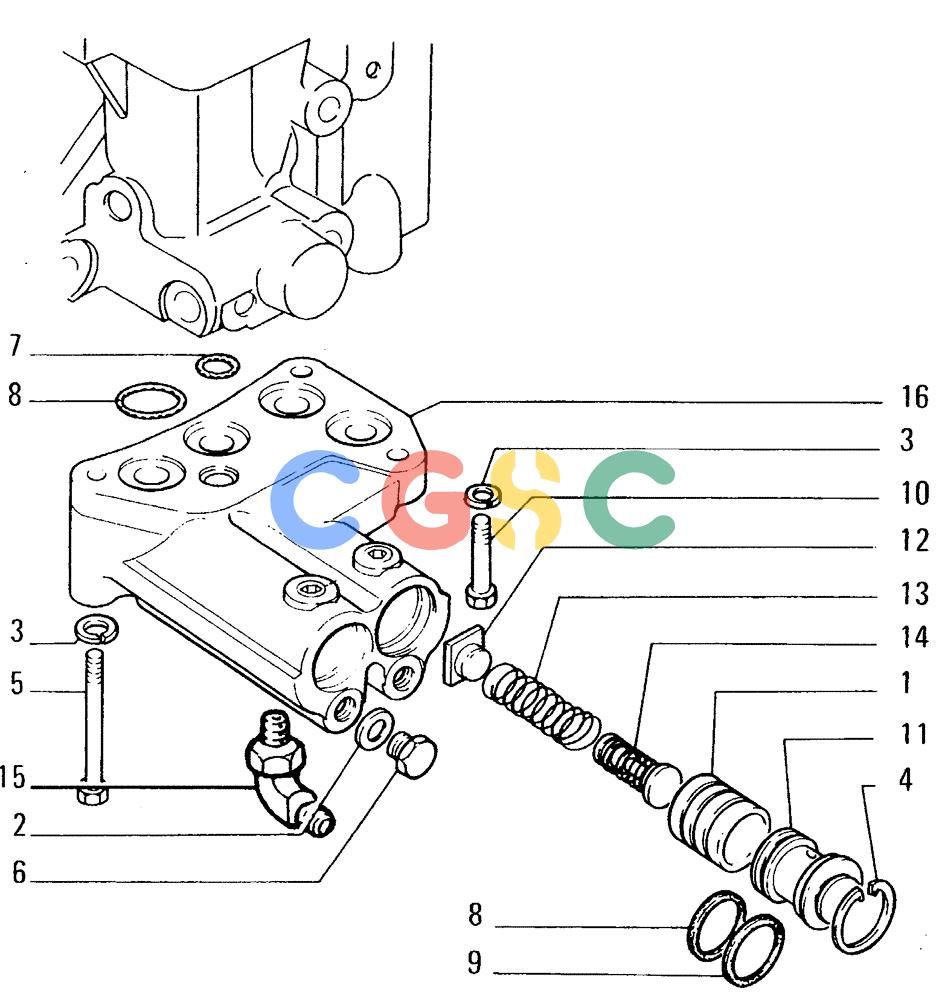

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2110[013]) - TRANSMISSION-CONTROL VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
715 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 586171 | [2] | PISTON | LEC |
| 2. | 4858606 | [2] | SEAL,10.2mm ID x 16mm OD x 1mm Thk | TTFGASKET 10,2x14 |
| 3. | 10516871 | [3] | LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk | HFILOCKWASHER 10x2,5 Superseded by part number: 10571873 |
| 4. | 11058675 | [2] | LOCKING RING | MKTSNAP RING 30,1x1,2 Superseded by part number: 11058676 |
| 5. | 11343731 | [1] | SCREW,Hex, M10 x 1.25 x 65mm, Cl 10.9 | LEC10x1,25x65 Superseded by part number: |
| 6. | 11903111 | [2] | PLUG,M10 x 1.25 x 11, Cl5.8 | JES10x1,25x7 Superseded by part number: 11903114 |
| 8. | 14453681 | [2] | O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro | LEC0-RING 1,78x20x35 Superseded by part number: 5135736 |
| 9. | 14453781 | [2] | O-RING,21.95mm ID x 1.78" Width | MKT-020, Cl 7, .864" ID x .070" Thk (M21.95 ID x 1.78 Thk) Superseded by part number: 5135737 |
| 10. | 15970931 | [2] | BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9 | LEC Superseded by part number: 15970934 |
| 11. | 79040809 | [2] | PLUG | LEC |
| 12. | 79042386 | [2] | CAP WASHER | LECPLATE |
| 13. | 79042388 | [2] | SPRING | LEC |
| 14. | 79042389 | [2] | SPRING | LEC |
| 15. | 79054401 | [1] | HYD CONNECTOR | LECFITTING |
| 16. | 79056942 | [1] | BODY | LEC |
| 7. | 14453181 | [1] | O-RING,0.489" ID x 0.07" Width | TTF-014, Cl 7, .489" ID x .070" Thk (M12.42 ID x 1.78 Thk) |
