斗山零件查询CENTER JOINT SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
845 次

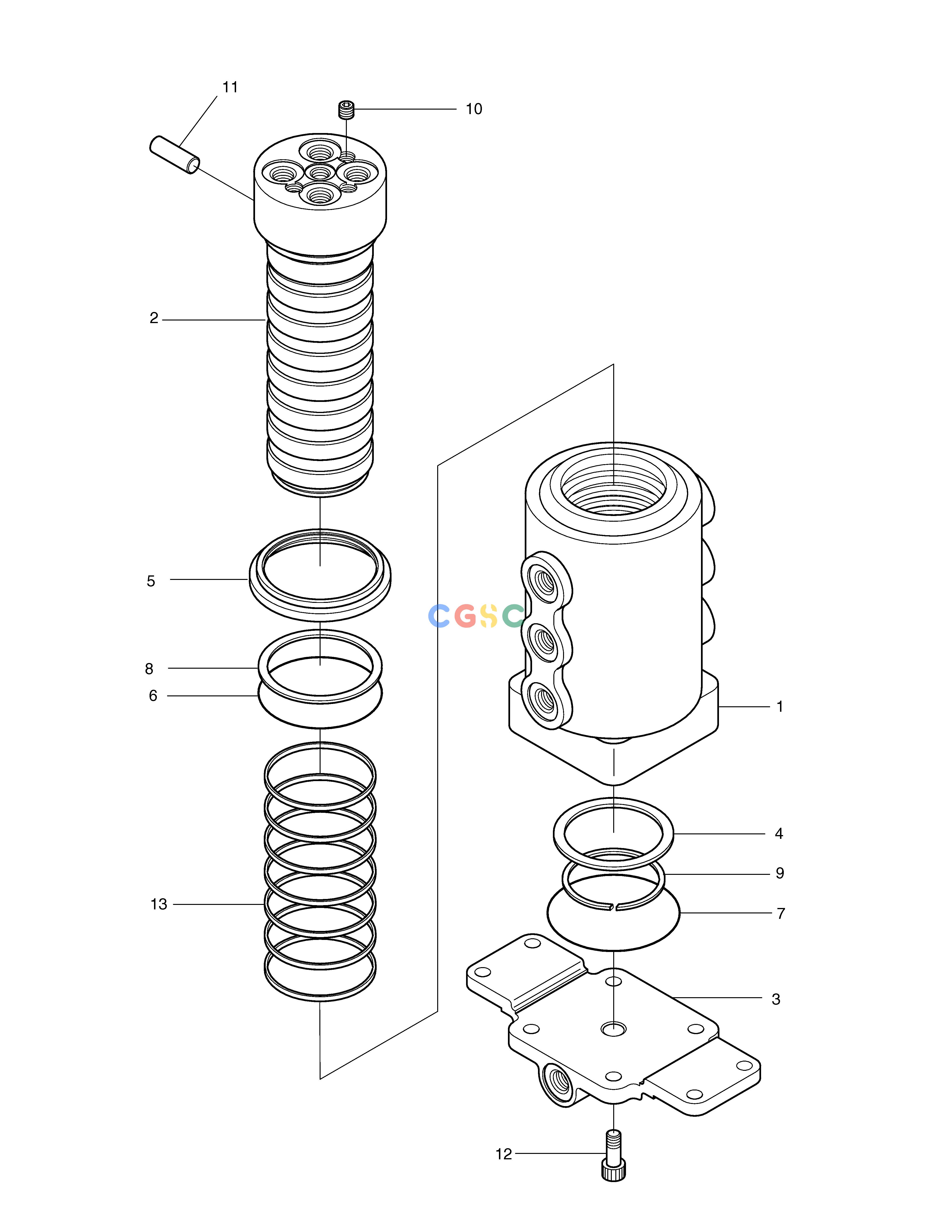

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2480-9028KT
|
[1] |
SEAL KIT
|
|
| -. |
2480-9028A
|
[1] |
JOINT;CENTER
|
|
| 1. |
NA00546
|
[1] |
HUB
|
|
| 10. |
2181-1116D1
|
[3] |
PLUG
|
|
| 11. |
NA00752
|
[1] |
PIN
|
|
| 12. |
S2209061
|
[4] |
BOLT;SOCKET
|
|
| 13. |
NA01100
|
[7] |
. SEAL,SLIPPER
|
|
| 2. |
NA01124
|
[1] |
SHAFT
|
|
| 3. |
NA00392
|
[1] |
COUVERCLE
|
|
| 4. |
114-00263
|
[1] |
SPACER
|
|
| 5. |
115-00061
|
[1] |
PACKING
|
|
| 6. |
S8000601
|
[1] |
O-RING
|
|
| 7. |
S8010750
|
[1] |
O-RING
|
|
| 8. |
S8060600
|
[1] |
RING;BACK UP
|
|
| 9. |
S6500580
|
[1] |
RING;RETAINER
|
|
