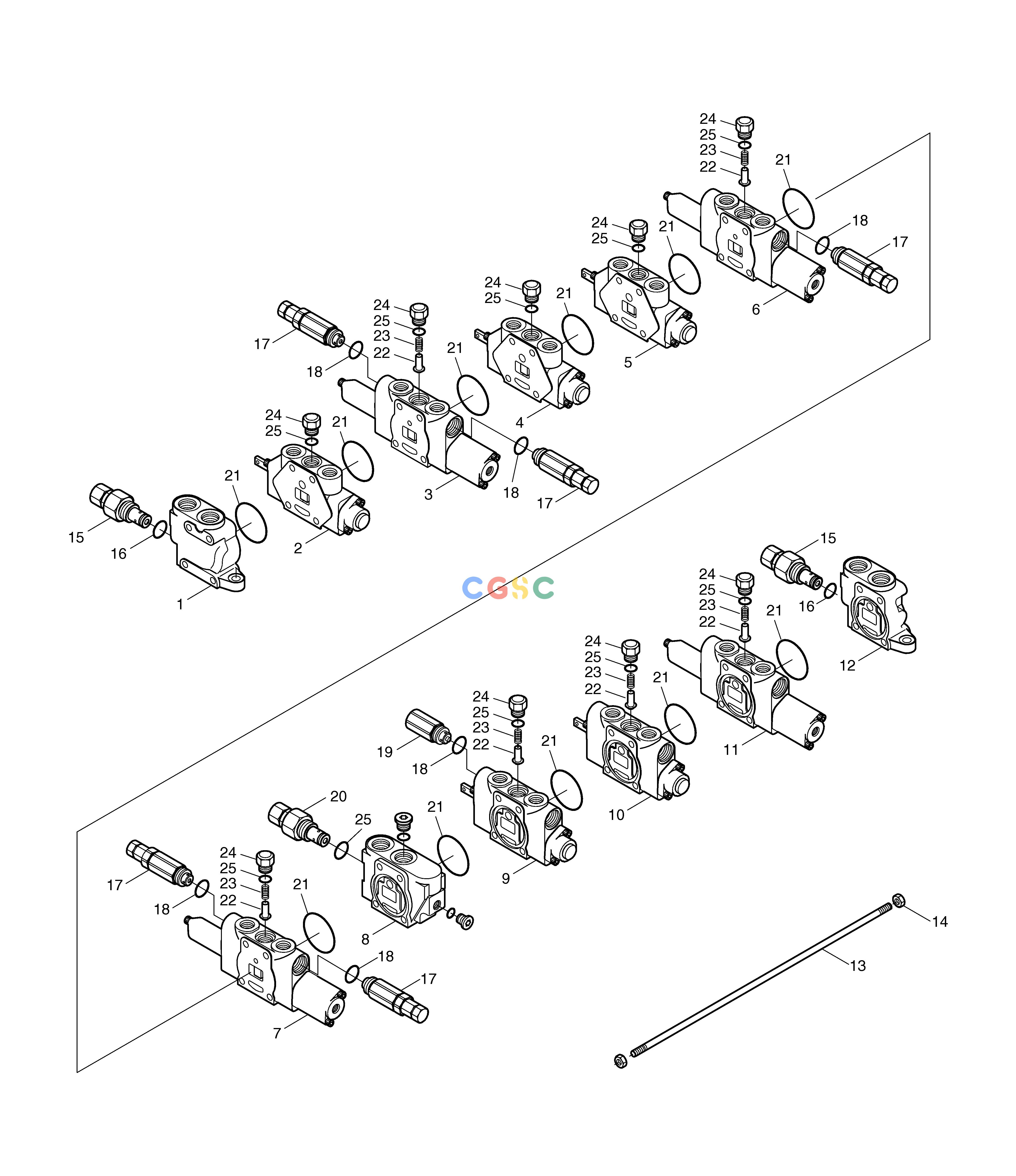

斗山零件查询CONTROL VALVE SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
789 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420-00176C
|
[1] |
CONTROL VALVE
|
|
| 1. |
1.451-00070
|
[1] |
INLET BLOCK ASS'Y
|
|
| 10. |
1.451-00018
|
[1] |
BLOCK ASS'Y;DOZER
|
|
| 11. |
1.451-00021
|
[1] |
BLOCK ASS'Y;SWING
|
|
| 12. |
1.451-00071
|
[1] |
INLET BLOCK ASS'Y
|
|
| 13. |
1.120-00038
|
[4] |
BOLT;THROUGH
|
|
| 14. |
S4010503
|
[8] |
NUT
|
|
| 15. |
1.420-00070
|
[2] |
MAIN RELIEF VALVE
|
|
| 16. |
S8000221
|
[2] |
O-RING
|
|
| 17. |
1.420-00078
|
[5] |
OVER LOAD RELIEF VALVE
|
|
| 18. |
S8000201
|
[6] |
O-RING
|
|
| 19. |
1.420-00025
|
[1] |
ANTI CAVITATION VALVE
|
|
| 2. |
1.451-00171
|
[1] |
BLOCK ASS'Y;TRAVEL(L)
|
|
| 20. |
1.420-00071
|
[1] |
MAIN RELIEF VALVE
|
|
| 21. |
S8010551
|
[11] |
O-RING
|
|
| 22. |
1.426-00025
|
[6] |
POPPET;LOAD CHECK
|
|
| 23. |
1.131-00140
|
[6] |
SPRING;LOAD CHECK
|
|
| 24. |
1.181-00031
|
[9] |
PLUG
|
|
| 25. |
S8000141
|
[10] |
O-RING
|
|
| 3. |
1.451-00010
|
[1] |
BLOCK ASS'Y;ARM
|
|
| 4. |
1.451-00020
|
[1] |
BLOCK ASS'Y;OPT
|
|
| 5. |
1.451-00171
|
[1] |
BLOCK ASS'Y;TRAVEL(L)
|
|
| 6. |
1.451-00016
|
[1] |
BLOCK ASS'Y;BUCKET
|
|
| 7. |
1.451-00012
|
[1] |
BLOCK ASS'Y;BOOM
|
|
| 8. |
1.451-00068
|
[1] |
INLET BLOCK ASS'Y
|
|
| 9. |
1.451-00014
|
[1] |
BLOCK ASS'Y;BOOM SWING
|
|
