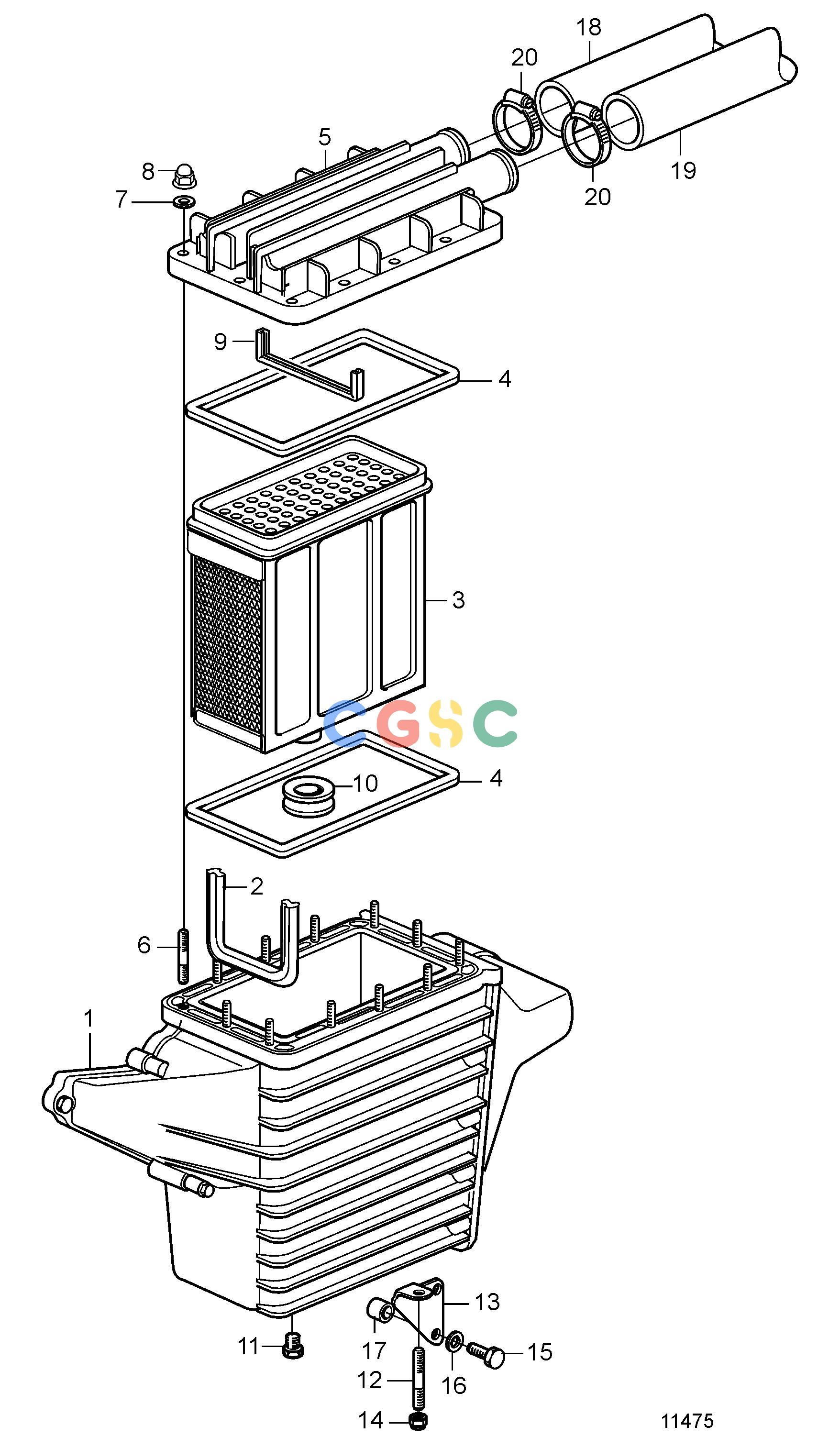

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BCooling SystemAfter Cooler and Installation Components: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
308 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
859354
|
[1] |
Housing
|
|
| 2. |
838831
|
[1] |
Sealing strip
|
|
| 3. |
859362
|
[1] |
Insert
|
|
| 4. |
860920
|
[2] |
Gasket
|
|
| 5. |
860409
|
[1] |
Cover
|
|
| 6. |
953036
|
[12] |
Stud
|
|
| 7. |
955893
|
[12] |
Washer
|
|
| 8. |
968458
|
[12] |
Flange cap nut
|
|
| 9. |
847573
|
[1] |
Sealing strip
|
|
| 10. |
858979
|
[1] |
Sealing ring
|
|
| 11. |
861116
|
[1] |
Plug
|
|
| 12. |
953041
|
[1] |
Stud
|
|
| 13. |
858965
|
[1] |
Bracket
|
|
| 14. |
945408
|
[1] |
Flange nut
|
|
| 15. |
965226
|
[2] |
Flange screw
|
|
| 16. |
955897
|
[2] |
Washer
|
Early type
|
| 17. |
1572568
|
[2] |
Spacer sleeve
|
|
| 18. |
860404
|
[1] |
Hose
|
After cooler-oil cooler.
|
| 19. |
860405
|
[1] |
Hose
|
After cooler-heat exchanger
|
| 20. |
994561
|
[2] |
Hose clamp
|
|
