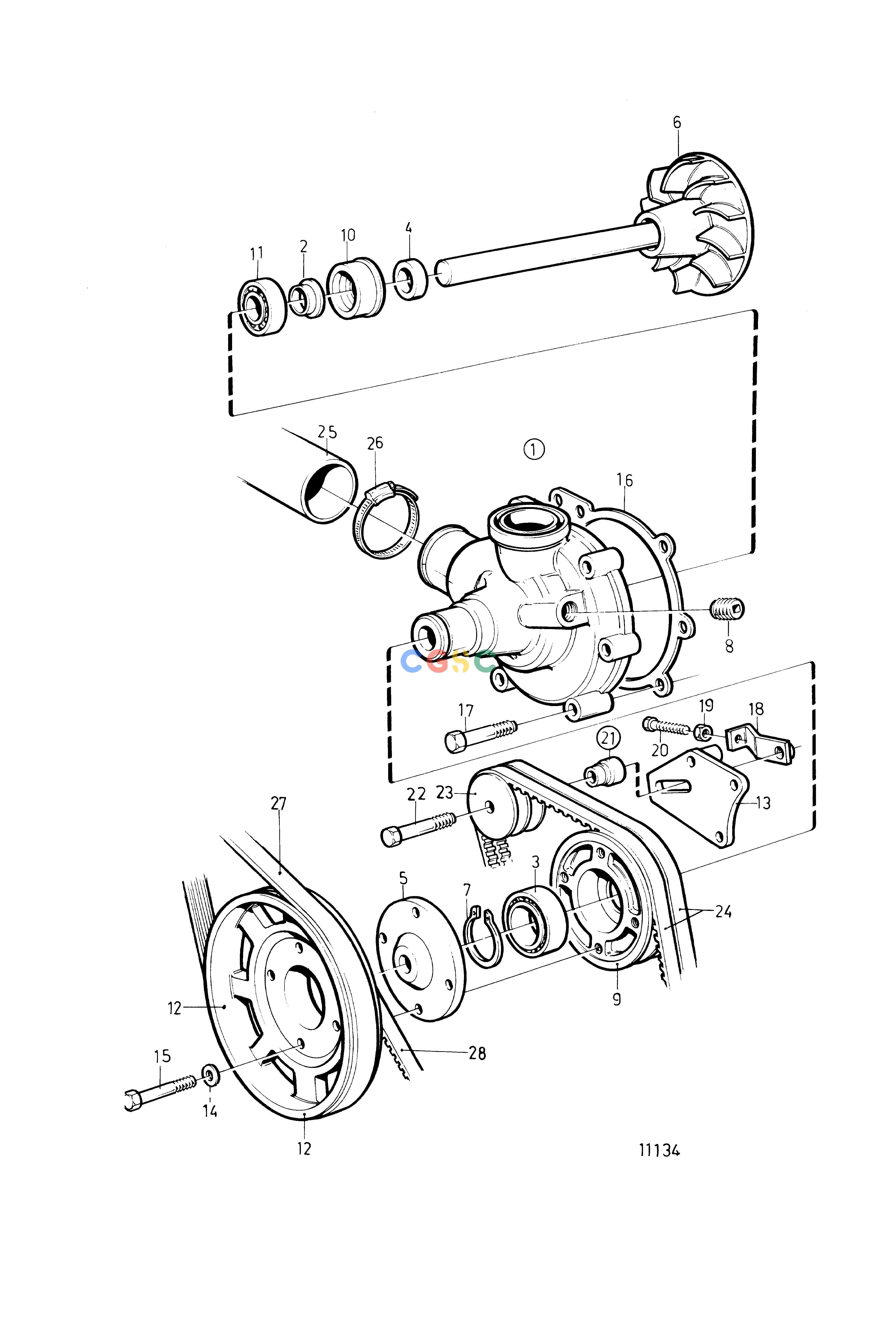

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BCooling SystemCirculation pump with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
704 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860452
|
[1] |
Water pump
|
|
| 2. |
70913
|
[1] |
Deflector
|
|
| 3. |
181538
|
[1] |
Ball bearing
|
|
| 4. |
421306
|
[1] |
Wear ring
|
|
| 5. |
860455
|
[1] |
Hub
|
|
| 6. |
|
|
|
|
| 7. |
914462
|
[1] |
Snap ring
|
|
| 8. |
952077
|
[1] |
Plug
|
|
| 9. |
1542235
|
[1] |
Pulley
|
|
| 10. |
1545283
|
[1] |
Sealing ring
|
|
| 11. |
1660609
|
[1] |
Ball bearing
|
|
| 11. |
876544
|
[1] |
Repair kit
|
See group 10A
|
| 12. |
860454
|
[1] |
Pulley
|
|
| 13. |
860610
|
[1] |
Bracket
|
|
| 14. |
941907
|
[4] |
Spring washer
|
|
| 15. |
947760
|
[4] |
Flange screw
|
|
| 16. |
859027
|
[1] |
Gasket
|
|
| 17. |
947760
|
[6] |
Flange screw
|
|
| 18. |
860658
|
[1] |
Tensioner
|
|
| 19. |
945407
|
[1] |
Flange nut
|
|
| 20. |
1328811
|
[1] |
Screw
|
|
| 21. |
876562
|
[1] |
Mounting kit
|
|
| 22. |
965187
|
[1] |
Flange screw
|
|
| 23. |
860714
|
[1] |
Tension pulley
|
|
| 24. |
966967
|
[1] |
V-belt
|
|
| 25. |
860413
|
[1] |
Hose
|
Circulation pump-heat exchanger
|
| 26. |
994562
|
[1] |
Hose clamp
|
|
| 27. |
860388
|
[1] |
Drive belt
|
|
| 28. |
977542
|
[1] |
V-belt
|
See group 3
|
