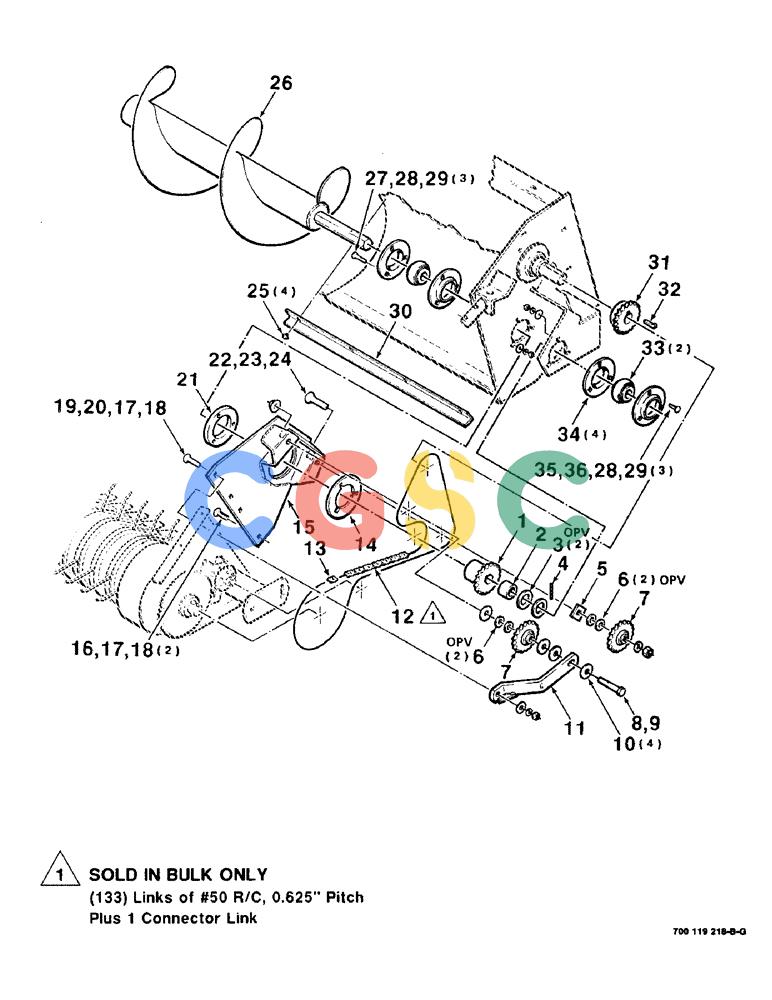

| 1. |
700119329
|
[1] |
SPROCKET
|
CAS
- 50B18 tooth
|
| 2. |
700119309
|
[1] |
SPACER
|
CAS
|
| 3. |
52712
|
[2] |
BUSHING
|
CAS
1-1/2 X 18 GA. NRMB
|
| 4. |
138-143
|
[1] |
LOCK PIN,1/4" x 2 1/4", Slotted
|
CAS
PIN, 1/4" x 2 1/4", Slotted Superseded by part number: 88078
|
| 5. |
700115572
|
[1] |
SQ HOLE WASHER
|
CAS
- special
|
| 6. |
52233
|
[4] |
BUSHING
|
CAS
5/8 X 14 GA. NRMB Superseded by part number: 51200381
|
| 7. |
211623C91
|
[2] |
SPROCKET
|
IH
- idler, 50B17 tooth
|
| 8. |
413-1044
|
[1] |
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
|
CAS
5/8-11 X 2-3/4 C Superseded by part number: 88693
|
| 9. |
231-51410
|
[1] |
FLANGE NUT,Flg, USR, 5/8"-11
|
CAS
Superseded by part number: 86977731
|
| 10. |
396-21066
|
[4] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN Superseded by part number: 87613283
|
| 11. |
700119306
|
[1] |
SUPPORT
|
CAS
STRAP - support, idler
|
| 12. |
1791D
|
[1] |
CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm
|
IH
CHAIN - roller, #50 (10 foot bulk)
|
| 13. |
1310D
|
[1] |
LINK
|
IH
- connector, #50 R/C Superseded by part number: 87034815
|
| 14. |
700119326
|
[1] |
FLANGE
|
CAS
|
| 15. |
700119320
|
[1] |
LARGE PLATE
|
CAS
PLATE - pivot, left
|
| 16. |
433-816
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
|
CAS
1/2-13 X 1 RHSNB Superseded by part number: 280486
|
| 17. |
80679
|
[3] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 18. |
425-108
|
[3] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, , Hex 1/2"-13, G5 Superseded by part number: 280431
|
| 19. |
433-824
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
|
CAS
1/2-13 X 1-1/2 RHSNB Superseded by part number: 280420, 72187237
|
| 20. |
495-21056
|
[1] |
WASHER,1/2"
|
CAS
1/2 HARDENED PLAIN WASHER Superseded by part number: 72187265, 80700
|
| 21. |
700119327
|
[1] |
SPACER
|
CAS
- pivot
|
| 22. |
433-1032
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5
|
CAS
5/8-11 X 2 RHSNB Superseded by part number: 280742
|
| 23. |
492-11062
|
[1] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| 24. |
425-1010
|
[1] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 25. |
256873
|
[4] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 26. |
700119310
|
[1] |
AUGER
|
CAS
- left
|
| 27. |
433-628
|
[3] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5
|
CAS
3/8-16 X 1-3/4 RHSNB Superseded by part number: 86508775
|
| 28. |
492-11038
|
[6] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 29. |
425-106
|
[6] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 30. |
700119328
|
[1] |
STRIPPER
|
CAS
- auger
|
| 31. |
86132
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET - 50B17 tooth
|
| 32. |
61424
|
[1] |
KEY
|
CAS
1/4 X 1/4 X 1-1/4 GIB KEY
|
| 33. |
700709621
|
[2] |
SPHERICAL BEARING,31.78mm Hex x 72mm OD x 25mm W
|
CAS
- spherical, hex bore Superseded by part number: 47442495
|
| 34. |
T27207
|
[4] |
FLANGED BEARING
|
CAS
FLANGE - bearing Superseded by part number: 617863R1
|
| 35. |
434-616
|
[3] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 X 1 RHSNB Superseded by part number: 80280503
|
| 36. |
496-11041
|
[3] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
