纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2110[022]) - TRANSMISSION-COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
559 次

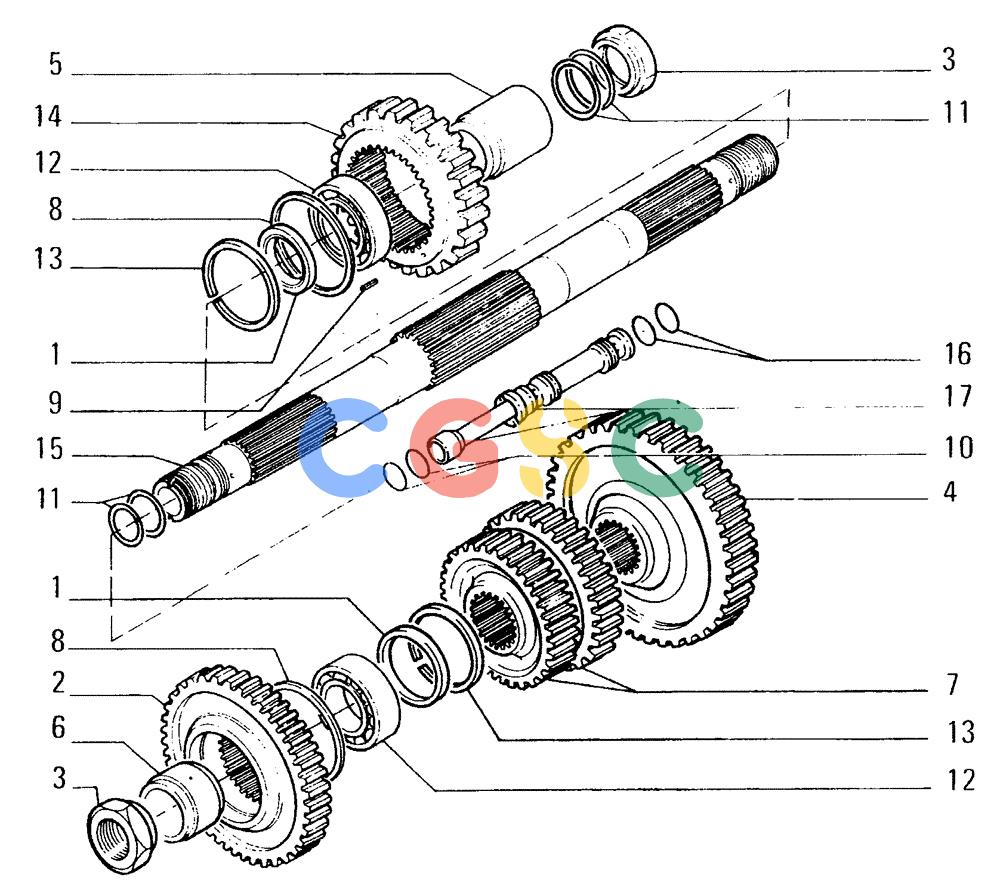

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 581371 | [2] | THRUST PLATE | LECRING |
| 2. | 590533 | [1] | GEAR | LEC59T |
| 3. | 4951301 | [2] | NUT | LEC Superseded by part number: 5119147 |
| 4. | 4962186 | [1] | GEAR | LEC65T |
| 5. | 4962194 | [1] | SPACER | LEC |
| 6. | 4962196 | [1] | SPACER | LEC |
| 7. | 4982115 | [1] | GEAR | LEC51T & 47T |
| 8. | 11071376 | [2] | SNAP RING,M90, Ext | LECRING, RETAINING, M90, Ext Superseded by part number: 300639 |
| 9. | 14163670 | [2] | ROLL PIN,M4 x 14, Slotted | TTFSPRING PIN 4.4x14 |
| 10. | 14457281 | [4] | O-RING,0.612" ID x 0.103" Width | TTF-114, Cl 7, .612" ID x .103" Thk |
| 11. | 14463881 | [4] | O-RING,1.359" ID x 0.139" Width | IMO-220, Cl 7, 1.359" ID x .139" Thk (M34.52ID x 3.53 Thk) Superseded by part number: 17289281 |
| 12. | 86516079 | [2] | BALL BEARING,50mm ID x 80mm OD x 16mm W | NHBEARING 50x80 |
| 13. | 76002522 | [2] | CIRCLIP | LECRING |
| 14. | 79032302 | [1] | GEAR | LEC37T |
| 15. | 79032803 | [1] | SHAFT | LEC Superseded by part number: 76027779 |
| 16. | 79051013 | [4] | SEAL,20.168mm OD x 1.143mm Width | LECSNAP RING - IN ALTERNATIVE Superseded by part number: 79086720 |
| 16. | 79086720 | [4] | SEAL,Split, 17mm ID x 19.8mm OD x 1.57mm Thk | LECSNAP RING - IN ALTERNATIVE |
| 17. | 79060757 | [2] | PIN,19.8mm OD x 98mm L | LEC |
