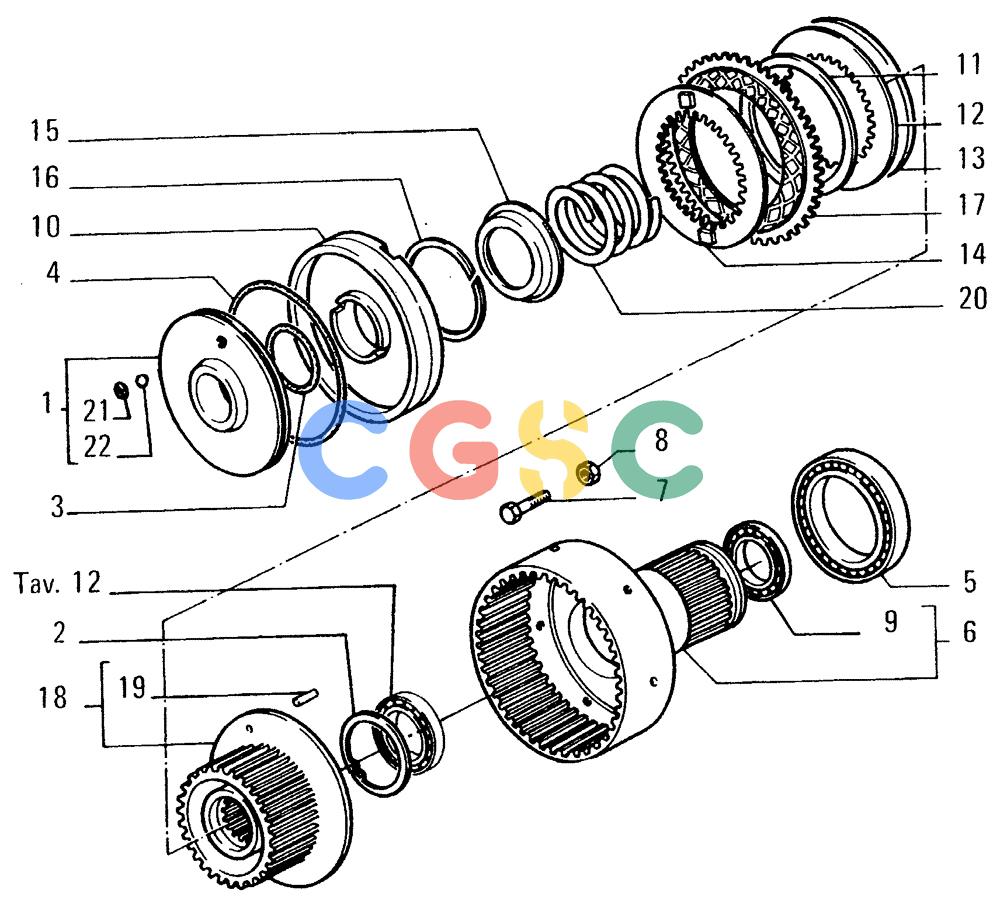

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2110[024]) - TRANSMISSION-COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
352 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4983917 | [1] | PISTON | LEC |
| 2. | 11062476 | [1] | SNAP RING,M90, Int | TTFRING, LOCKING, M90, Int Superseded by part number: |
| 3. | 14459781 | [1] | O-RING,55.24mm ID x 60.479mm OD x 2.62mm Thk | LEC0-RING -139, Cl 7, 2.175" ID x .103" Thk |
| 4. | 14467781 | [1] | O-RING,0.139" Thk x 6.234" ID, -259, Cl 7, 75 Duro | LEC-259, Cl 7, 6.234" ID x .139" Thk (M158.3 ID x 3.53 Thk) Superseded by part number: 70925787 |
| 5. | 24907860 | [1] | CYLINDRICAL ROLLER BEARING,100mm ID x 150mm OD x 24mm W | LECBEARING 100x150 |
| 6. | 79026693 | [1] | DRUM | LEC- OUTER ASSEMBLY |
| 7. | 79026695 | [2] | BOLT,Hex, M8 x 32mm | LEC |
| 8. | 79026845 | [2] | NUT | LEC |
| 9. | 79032204 | [1] | NEEDLE BEARING,50mm ID x 80mm OD x 28mm W | LECBEARING |
| 10. | 79036885 | [1] | PISTON | LEC |
| 11. | 79038905 | [8] | SPRING CLIP | LEC |
| 12. | 79040802 | [8] | CLUTCH DISC | LECDISC |
| 13. | 79040803 | [1] | DISC,127.96mm ID x 195mm OD x 3mm Thk | LEC |
| 14. | 79041947 | [1] | DISC,121.48mm ID x 195mm OD x 2.5mm Thk | LEC |
| 15. | 79041950 | [1] | CUP | LEC |
| 16. | 79041951 | [1] | SNAP RING | LECSNAP RING |
| 17. | 79057506 | [8] | DISC | LEC- IN ALTERNATIVE Superseded by part number: 79079550 |
| 17. | 79079550 | [8] | DISC,145mm ID x 208mm OD x 3.5mm Thk | LEC |
| 18. | 79071781 | [1] | DRUM | LEC- ASSEMBLY |
| 19. | 79071789 | [3] | NEEDLE ROLLER | LEC |
| 20. | 79077584 | [1] | SPRING | LEC |
| 21. | 4962201 | [1] | CUP | LEC |
| 22. | 20063450 | [1] | BALL | LEC6.350 Superseded by part number: 20419320 |
