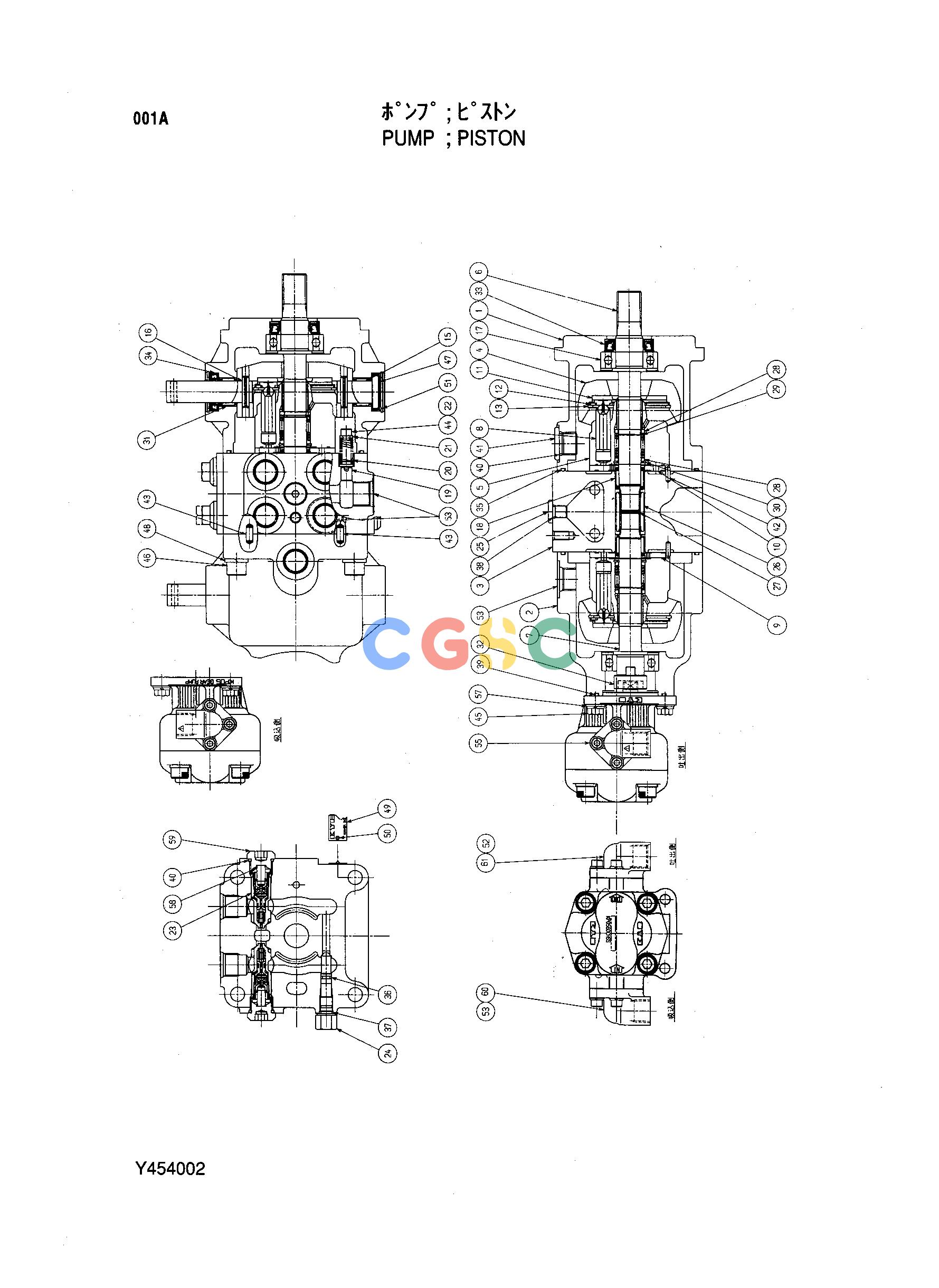

日立零件查询（CG15D）PUMP;PISTON Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
448 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y454002 | [1] | PUMP;PISTON | Y454002 |
| 1. | +++++++ | [1] | CASE | |
| 2. | +++++++ | [1] | CASE | |
| 3. | +++++++ | [1] | BLOCK | |
| 4. | Y406992 | [2] | PLATE | |
| 5. | +++++++ | [2] | BLOCK;CYL. | |
| 6. | Y406993 | [1] | SHAFT | |
| 7. | Y406994 | [1] | SHAFT | |
| 8. | +++++++ | [18] | PISTON | |
| 9. | Y406997 | [1] | PLATE;VALVE | |
| 10. | Y406998 | [1] | PLATE;VALVE | |
| 11. | Y406999 | [2] | PLATE;THRUST | |
| 12. | +++++++ | [2] | RETAINER | |
| 13. | Y407000 | [2] | RING;RETAINING | |
| 14. | Y407001 | [2] | PIN | |
| 15. | Y407002 | [2] | TRUNNION | |
| 16. | 0411621 | [4] | PIN;SPRING | |
| 17. | Y407003 | [2] | BRG.;BALL | |
| 18. | 0725207 | [2] | BRG.;NEEDLE | |
| 19. | Y407004 | [1] | POPPET | |
| 20. | Y407005 | [1] | SPRING | |
| 21. | Y407006 | [1] | HOLDER | |
| 22. | Y407007 | [2] | COLLAR | |
| 23. | Y407008 | [4] | VALVE | |
| 24. | Y407009 | [2] | BOLT | |
| 25. | 0436608 | [1] | PLUG | |
| 26. | Y407010 | [1] | COUPLING | |
| 27. | Y407011 | [1] | RING;RETAINING | |
| 28. | +++++++ | [4] | HOLDER | |
| 29. | +++++++ | [2] | SPRING | |
| 30. | +++++++ | [2] | RING;RETAINING | |
| 31. | Y407012 | [4] | BRG.;NEEDLE | |
| 32. | Y407013 | [1] | COUPLING | |
| 33. | Y407014 | [1] | SEAL;OIL | |
| 34. | Y407015 | [2] | SEAL;OIL | |
| 35. | A810120 | [2] | O-RING | |
| 36. | 4506407 | [2] | O-RING | |
| 37. | 4506320 | [2] | O-RING | |
| 38. | 957366 | [1] | O-RING | |
| 39. | A810060 | [1] | O-RING | |
| 40. | 4506418 | [5] | O-RING | |
| 41. | Y407016 | [1] | PLUG | |
| 42. | 0396703 | [2] | PIN | |
| 43. | 0396814 | [4] | PIN | |
| 44. | 0224921 | [2] | BOLT;SOCKET | |
| 45. | Y407017 | [4] | BOLT;SEMS | |
| 46. | 0144904 | [4] | BOLT;SOCKET | |
| 47. | Y407018 | [2] | PLUG | |
| 48. | A590912 | [4] | WASHER;SPRING | |
| 49. | +++++++ | [1] | NAME-PLATE | |
| 50. | +++++++ | [2] | SCREW;DRIVE | |
| 51. | 446751 | [4] | RING;RETAINING | |
| 52. | +++++++ | [1] | PLUG | |
| 53. | 0224922 | [7] | PLUG | |
| 55. | Y407019 | [1] | PUMP;GEAR | |
| 57. | Y407020 | [4] | WASHER | |
| 58. | Y407021 | [4] | SPRING | |
| 59. | Y407022 | [4] | PLUG | |
| 60. | Y407023 | [1] | ELBOW | |
| 60A. | 984338 | [1] | O-RING | |
| 61. | Y407024 | [1] | ELBOW | |
| 61A. | 984338 | [1] | O-RING | |
