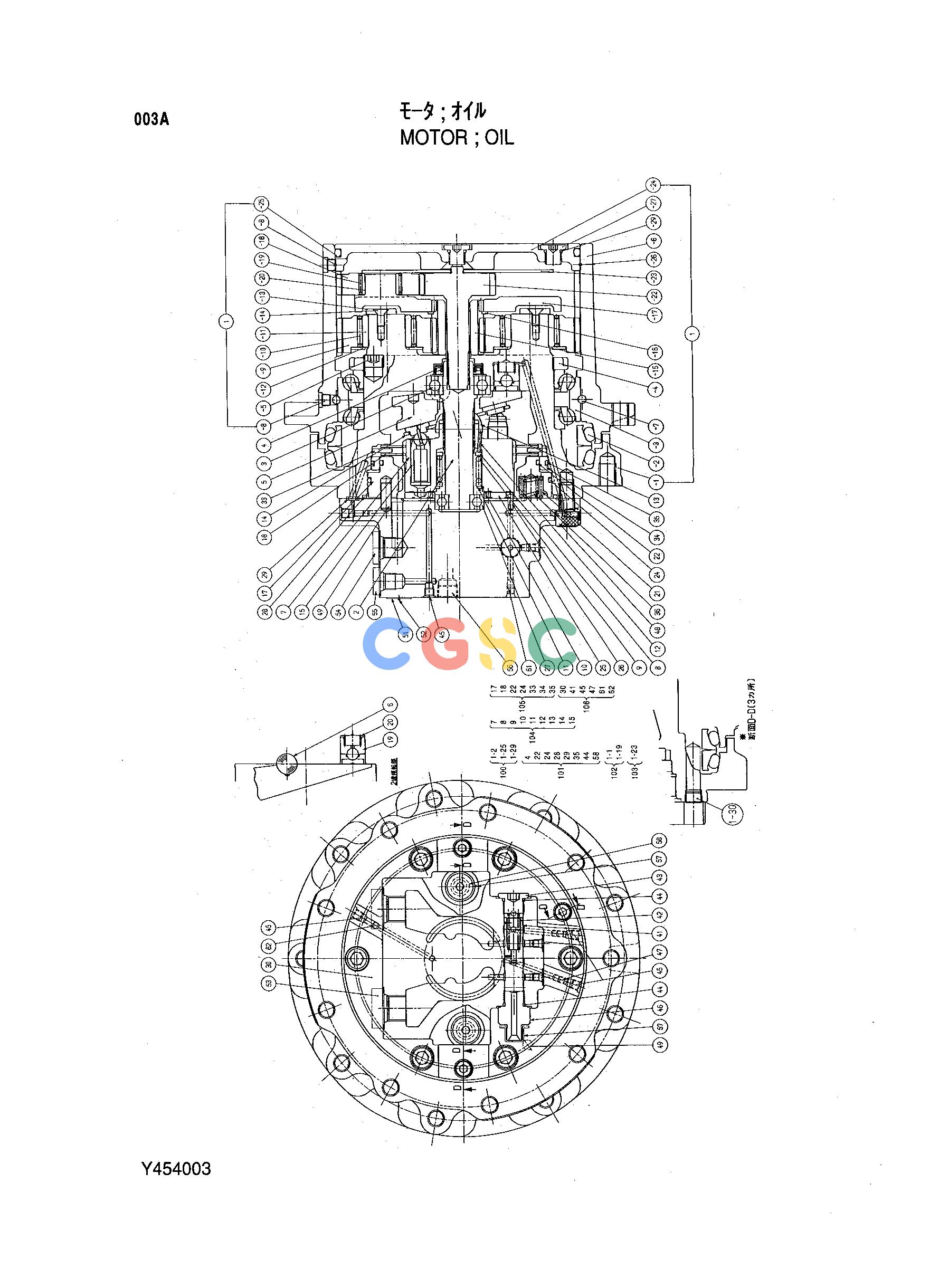

日立零件查询（CG15D）MOTOR;OIL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
879 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y454003 | [1] | MOTOR;OIL | Y454003 |
| 1. | Y406930 | [1] | T.MISSION | |
| 1-1. | +++++++ | [1] | HOLDER | |
| 1-2. | 0397801 | [2] | SEAL | |
| 1-3. | 0397802 | [1] | BRG. | |
| 1-4. | 0397803 | [1] | NUT | |
| 1-5. | 0732202 | [2] | PLUG | |
| 1-6. | +++++++ | [1] | HOUSING | |
| 1-7. | 0111818 | [99] | BALL;STEEL | |
| 1-8. | 94-2010 | [2] | PLUG | |
| 1-9. | 0732203 | [4] | GEAR;PLANETARY | |
| 1-10. | 0732204 | [4] | BRG.;NEEDLE | |
| 1-11. | 0732205 | [4] | RACE;INNER | |
| 1-12. | 0732206 | [4] | WASHER;THRUST | |
| 1-13. | 0397809 | [1] | PLATE;THRUST | |
| 1-14. | 0397810 | [4] | SCREW | |
| 1-15. | 0732207 | [1] | GEAR;SUN | |
| 1-16. | 0251310 | [1] | RING;RETAINING | |
| 1-17. | Y406932 | [1] | HOLDER | |
| 1-18. | Y407055 | [3] | GEAR;PLANETARY | |
| 1-19. | 0397814 | [3] | ROLLER | |
| 1-20. | 0732209 | [3] | RACE;INNER | |
| 1-22. | Y406934 | [1] | GEAR;DRIVE | |
| 1-23. | +++++++ | [1] | PLATE;THRUST | |
| 1-23. | +++++++ | [1] | PLATE;THRUST | |
| 1-23. | +++++++ | [1] | PLATE;THRUST | |
| 1-24. | 0831803 | [1] | COVER | |
| 1-25. | A811190 | [1] | O-RING | |
| 1-26. | 0397822 | [1] | WIRE | |
| 1-27. | 0436608 | [2] | PLUG | |
| 1-29. | 957366 | [2] | O-RING | |
| 1-30. | 94-2011 | [3] | PLUG | |
| 2. | 0397901 | [1] | SHAFT | |
| 3. | 0725206 | [1] | BRG.;BALL | |
| 4. | Y406935 | [1] | SEAL;OIL | |
| 5. | Y406957 | [1] | PLATE;SWASH | |
| 6. | 0732302 | [2] | BALL;STEEL | |
| 7. | +++++++ | [1] | BLOCK;CYL. | |
| 8. | +++++++ | [1] | COLLAR | |
| 9. | +++++++ | [1] | SPRING | |
| 10. | +++++++ | [1] | WASHER | |
| 11. | +++++++ | [1] | RING;RETAINING | |
| 12. | +++++++ | [3] | PIN | |
| 13. | +++++++ | [1] | HOLDER | |
| 14. | +++++++ | [1] | PLATE | |
| 15. | +++++++ | [9] | PISTON | |
| 17. | +++++++ | [1] | PISTON | |
| 18. | +++++++ | [2] | DISK | |
| 19. | +++++++ | [2] | PISTON | |
| 20. | 0629805 | [2] | SPRING | |
| 21. | 0832001 | [8] | SPRING | |
| 22. | A811125 | [1] | O-RING | |
| 24. | A811145 | [1] | O-RING | |
| 25. | 0732003 | [1] | PLATE;VALVE | |
| 26. | 0396703 | [1] | PIN | |
| 27. | 0397915 | [1] | BRG.;BALL | |
| 28. | 0158833 | [1] | O-RING | |
| 29. | 4506407 | [4] | O-RING | |
| 30. | +++++++ | [1] | PLATE | |
| 33. | +++++++ | [1] | PLATE;FRICTION | |
| 34. | +++++++ | [1] | COLLAR | |
| 35. | A811135 | [1] | O-RING | |
| 36. | 0832002 | [8] | SPRING | |
| 41. | +++++++ | [1] | SPOOL | |
| 42. | 0436602 | [1] | SPRING | |
| 43. | 0311336 | [1] | PLUG | |
| 44. | 4509180 | [2] | O-RING | |
| 45. | +++++++ | [4] | PLUG | |
| 46. | 0732304 | [1] | PLUG | |
| 47. | +++++++ | [4] | ORIFICE | |
| 48. | 0398007 | [6] | BOLT;SOCKET | |
| 49. | 0397910 | [4] | PIN | |
| 51. | +++++++ | [1] | NAME-PLATE | |
| 52. | +++++++ | [2] | SCREW;DRIVE | |
| 53. | +++++++ | [2] | PLUG | |
| 54. | +++++++ | [1] | PLUG | |
| 55. | +++++++ | [1] | PLUG | |
| 56. | 94-2012 | [2] | PLUG | |
| 57. | +++++++ | [1] | PLUG | |
| 58. | 957366 | [2] | O-RING | |
| 59. | 0436608 | [2] | PLUG | |
| 61. | +++++++ | [4] | PLUG | |
| 62. | +++++++ | [1] | ORIFICE | |
| 100. | Y406541 | [1] | KIT;SEAL | |
| 101. | Y406542 | [1] | KIT;SEAL | |
| 102. | Y406939 | [1] | KIT;FLANGE | |
| 103. | Y406940 | [1] | KIT;PLATE | |
| 104. | Y406941 | [1] | KIT;BLOCK | |
| 105. | Y406942 | [1] | KIT;BRAKE | |
| 106. | Y406958 | [1] | KIT;PLATE | |
