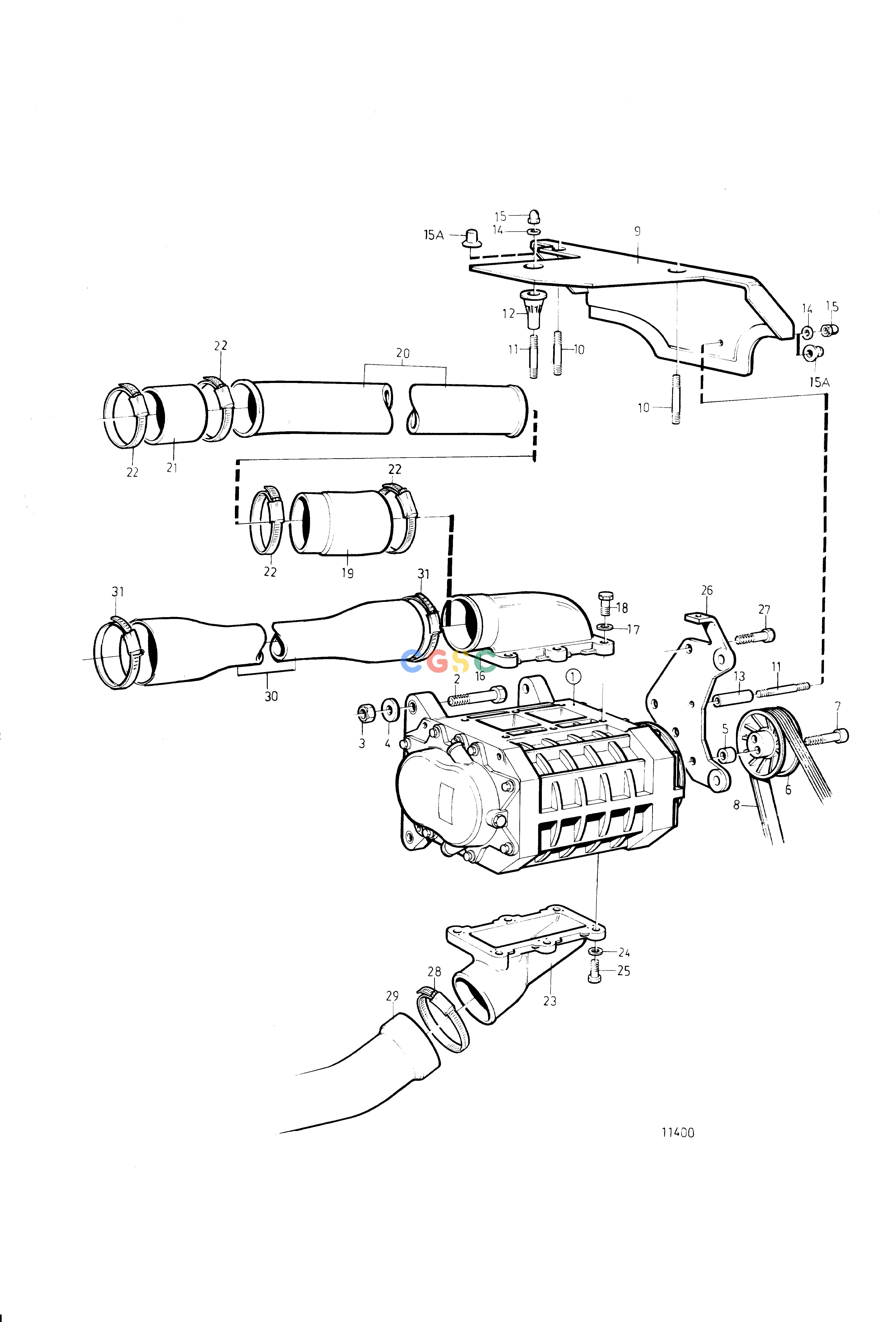

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BCooling SystemCompressor and Belt Protector with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
109 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860360
|
[1] |
Compressor
|
|
| 2. |
965220
|
[4] |
Flange screw
|
|
| 3. |
971098
|
[4] |
Flange lock nut
|
|
| 4. |
960148
|
[4] |
Washer
|
|
| 5. |
849845
|
[1] |
Spacer sleeve
|
|
| 6. |
855507
|
[1] |
Tension pulley
|
|
| 7. |
959245
|
[1] |
Hex. socket screw
|
|
| 8. |
860388
|
[1] |
Drive belt
|
|
| 9. |
860778
|
[1] |
Belt protector
|
|
| 10. |
953031
|
[2] |
Stud
|
|
| 11. |
968975
|
[2] |
Stud
|
|
| 12. |
860818
|
[1] |
Spacer
|
|
| 13. |
833244
|
[1] |
Spacer sleeve
|
|
| 14. |
955893
|
[4] |
Washer
|
Early type
|
| 15. |
968458
|
[4] |
Flange cap nut
|
Early type
|
| 15A. |
861019
|
[4] |
Lock plug
|
|
| 16. |
860398
|
[1] |
Connecting pipe
|
|
| 17. |
955893
|
[6] |
Washer
|
|
| 18. |
946934
|
[6] |
Flange screw
|
|
| 19. |
860922
|
[1] |
Hose
|
Early type
|
| 20. |
860514
|
[1] |
Tube
|
Early type
|
| 21. |
860515
|
[1] |
Hose
|
Early type
|
| 22. |
961674
|
[4] |
Hose clamp
|
|
| 23. |
860400
|
[1] |
Connecting pipe
|
|
| 24. |
955893
|
[6] |
Washer
|
|
| 25. |
946934
|
[5] |
Flange screw
|
L=20mm
|
| 25. |
968873
|
[1] |
Screw
|
L=35mm
|
| 26. |
860371
|
[1] |
Bracket
|
|
| 27. |
946329
|
[3] |
Flange screw
|
|
| 28. |
853012
|
[1] |
Hose clamp
|
|
| 29. |
860389
|
[1] |
Hose
|
Air filter-compressor
|
| 30. |
861017
|
[1] |
Pneumatic hose
|
Late type
|
| 31. |
961674
|
[2] |
Hose clamp
|
|
