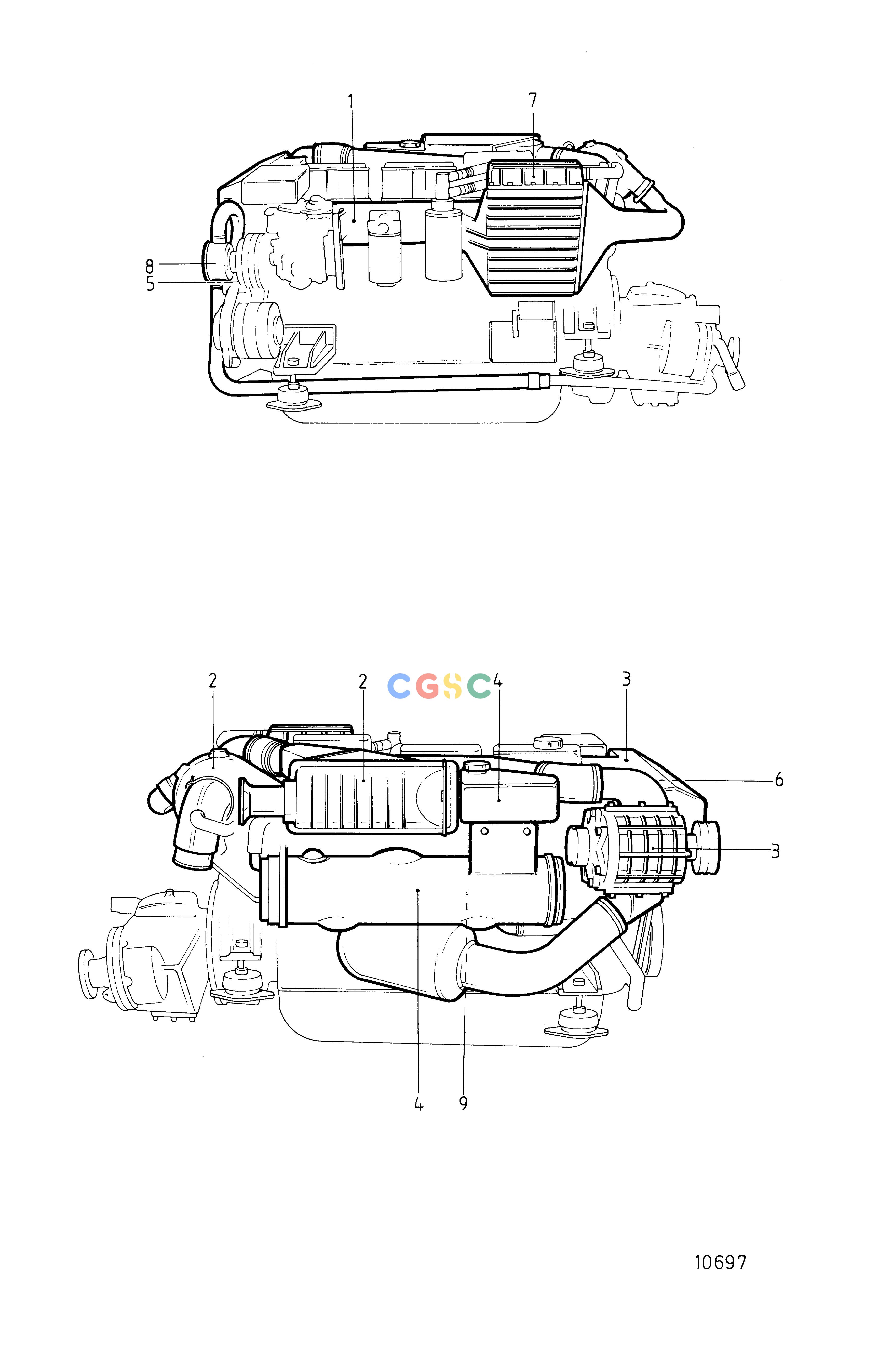

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BCooling SystemCooling System, Induction- and Exhaust ManifoldEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
190 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7745930_017
|
|
inlet- and exhaust manifold with installation comps
|
|
| 1. |
|
|
|
|
| 2. |
7745930_018
|
|
turbo and air filter with installation comps
|
|
| 2. |
|
|
|
|
| 3. |
7745930_019
|
|
compressor and belt protector with installation comps
|
|
| 3. |
|
|
|
|
| 4. |
7745930_021
|
|
heat exchanger with installation comps
|
|
| 4. |
|
|
|
|
| 5. |
7745930_022
|
|
circulation pump with installation comps
|
|
| 5. |
|
|
|
|
| 6. |
7745930_023
|
|
thermostat housing with installation comps
|
|
| 6. |
|
|
|
|
| 7. |
7745930_024
|
|
after cooler with installation comps
|
|
| 7. |
|
|
|
|
| 8. |
7745930_025
|
|
sea water pump with installation comps
|
|
| 8. |
|
|
|
|
| 9. |
7745930_028
|
|
oil cooler with installation comps
|
|
| 9. |
|
|
|
|
