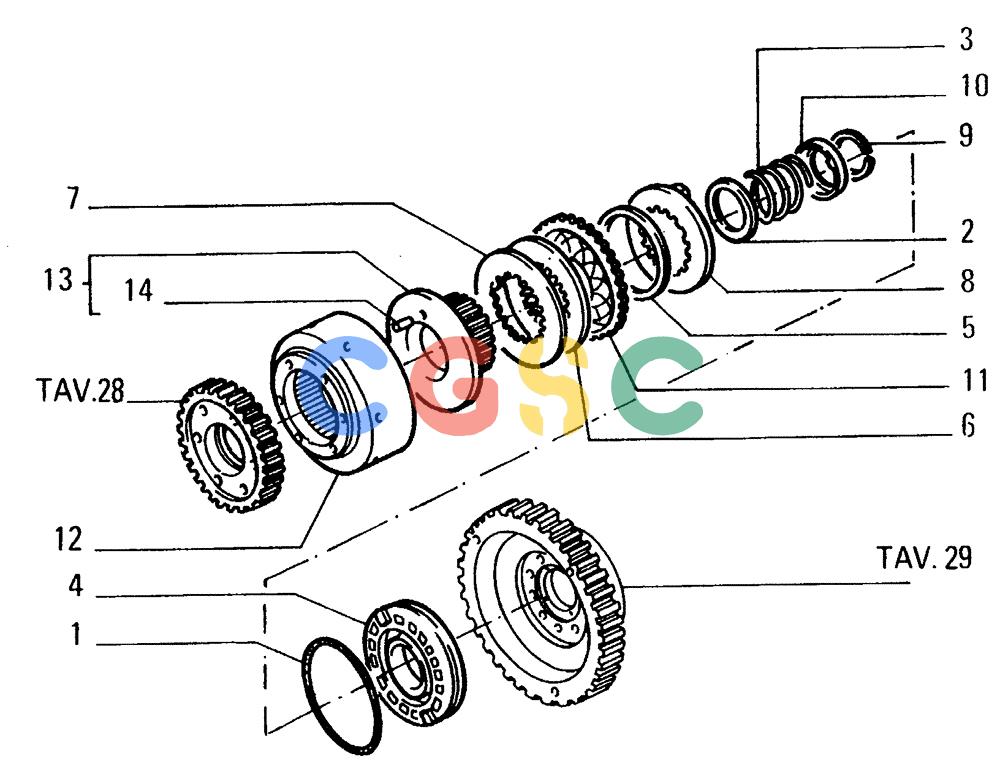

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2110[026]) - TRANSMISSION-COMPONENTS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
152 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 14468181 | [1] | O-RING,0.139" Thk x 7.234" ID, -263, Cl 7, 75 Duro | LEC-263, Cl 7, 7.234" ID x .139" Thk (M183.7 ID x 3.53 Thk) Superseded by part number: 70924927 |
| 2. | 79032653 | [1] | CUP,87mm ID x 105mm OD x 1mm Thk | LEC |
| 3. | 79032672 | [1] | SPRING | LEC |
| 4. | 79036886 | [1] | PISTON | LEC |
| 5. | 79038905 | [6] | SPRING CLIP | LEC |
| 6. | 79040802 | [6] | CLUTCH DISC | LECDISC |
| 7. | 79040803 | [1] | DISC,127.96mm ID x 195mm OD x 3mm Thk | LEC |
| 8. | 79041947 | [1] | DISC,121.48mm ID x 195mm OD x 2.5mm Thk | LEC |
| 9. | 79041951 | [1] | SNAP RING | LECSNAP RING |
| 10. | 79041952 | [1] | CUP,80.3mm ID x 109mm OD x 1mm Thk | LEC |
| 11. | 79057506 | [6] | DISC | LEC-IN ALTERNATIVE Superseded by part number: 79079550 |
| 11. | 79079550 | [6] | DISC,145mm ID x 208mm OD x 3.5mm Thk | LEC |
| 12. | 79070615 | [1] | DRUM | LEC |
| 13. | 79071783 | [1] | DRUM | LEC-ASSEMBLY |
| 14. | 79072959 | [3] | NEEDLE ROLLER,Needle, 3.5mm OD x 11.8mm L | LEC |
