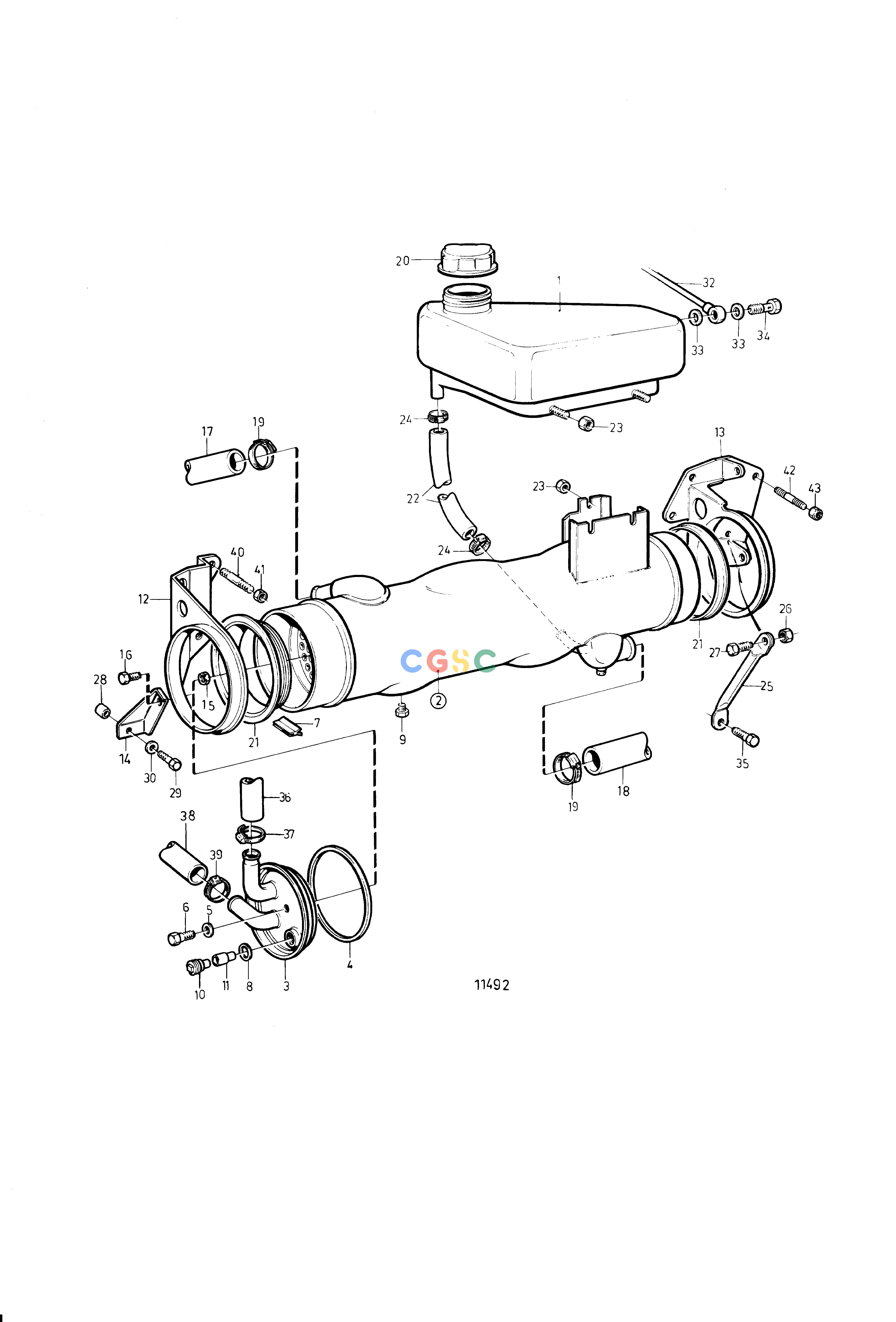

沃尔沃零件查询KAD42A; KAMD42A; HS1A; MS5BCooling SystemHeat Exchanger with Installation Components: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
594 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860517
|
[1] |
Expansion tank
|
|
| 2. |
860411
|
[1] |
Heat exchanger
|
|
| 3. |
860755
|
[1] |
Cap
|
|
| 4. |
925027
|
[1] |
O-ring
|
|
| 5. |
964106
|
[1] |
Gasket
|
|
| 6. |
963567
|
[1] |
Hexagon screw
|
|
| 7. |
860127
|
[3] |
Sealing strip
|
|
| 8. |
958227
|
[1] |
O-ring
|
|
| 9. |
861116
|
[1] |
Plug
|
|
| 10. |
858754
|
[1] |
Anchorage
|
|
| 11. |
838929
|
[1] |
Anode
|
Early type
|
| 12. |
860391
|
[1] |
Bracket
|
|
| 13. |
860392
|
[1] |
Bracket
|
|
| 14. |
860451
|
[1] |
Stay
|
|
| 15. |
948645
|
[1] |
Flange lock nut
|
|
| 16. |
946440
|
[1] |
Flange screw
|
|
| 17. |
860412
|
[1] |
Hose
|
Thermostat housing-heat exchanger
|
| 18. |
860413
|
[1] |
Hose
|
Circulation pump-heat exchanger
|
| 19. |
994562
|
[4] |
Hose clamp
|
|
| 20. |
1542591
|
[1] |
Pressure cap
|
|
| 21. |
838733
|
[2] |
Back-up ring
|
|
| 22. |
943369
|
[1] |
Rubber hose
|
L=260mm
|
| 23. |
949278
|
[3] |
Flange lock nut
|
|
| 24. |
943473
|
[2] |
Hose clamp
|
|
| 25. |
860450
|
[1] |
Stay
|
|
| 26. |
948645
|
[1] |
Flange lock nut
|
|
| 27. |
945444
|
[1] |
Flange screw
|
|
| 29. |
965226
|
[1] |
Flange screw
|
|
| 30. |
940143
|
[1] |
Toothed washer
|
|
| 32. |
860662
|
[1] |
Air vent hose
|
Expansion tank-thermostat housing
|
| 33. |
11994
|
[2] |
Gasket
|
|
| 34. |
969299
|
[1] |
Hollow screw
|
|
| 35. |
965193
|
[1] |
Flange screw
|
|
| 36. |
860406
|
[1] |
Hose
|
Heat exchanger-exhaust bend
|
| 37. |
994560
|
[1] |
Hose clamp
|
|
| 38. |
860405
|
[1] |
Hose
|
After cooler-heat exchanger
|
| 39. |
994560
|
[1] |
Hose clamp
|
|
| 40. |
17378
|
[2] |
Stud
|
L=170mm
|
| 41. |
971095
|
[2] |
Flange nut
|
|
| 42. |
953002
|
[4] |
Stud
|
L=125mm
|
| 43. |
971095
|
[4] |
Flange nut
|
|
