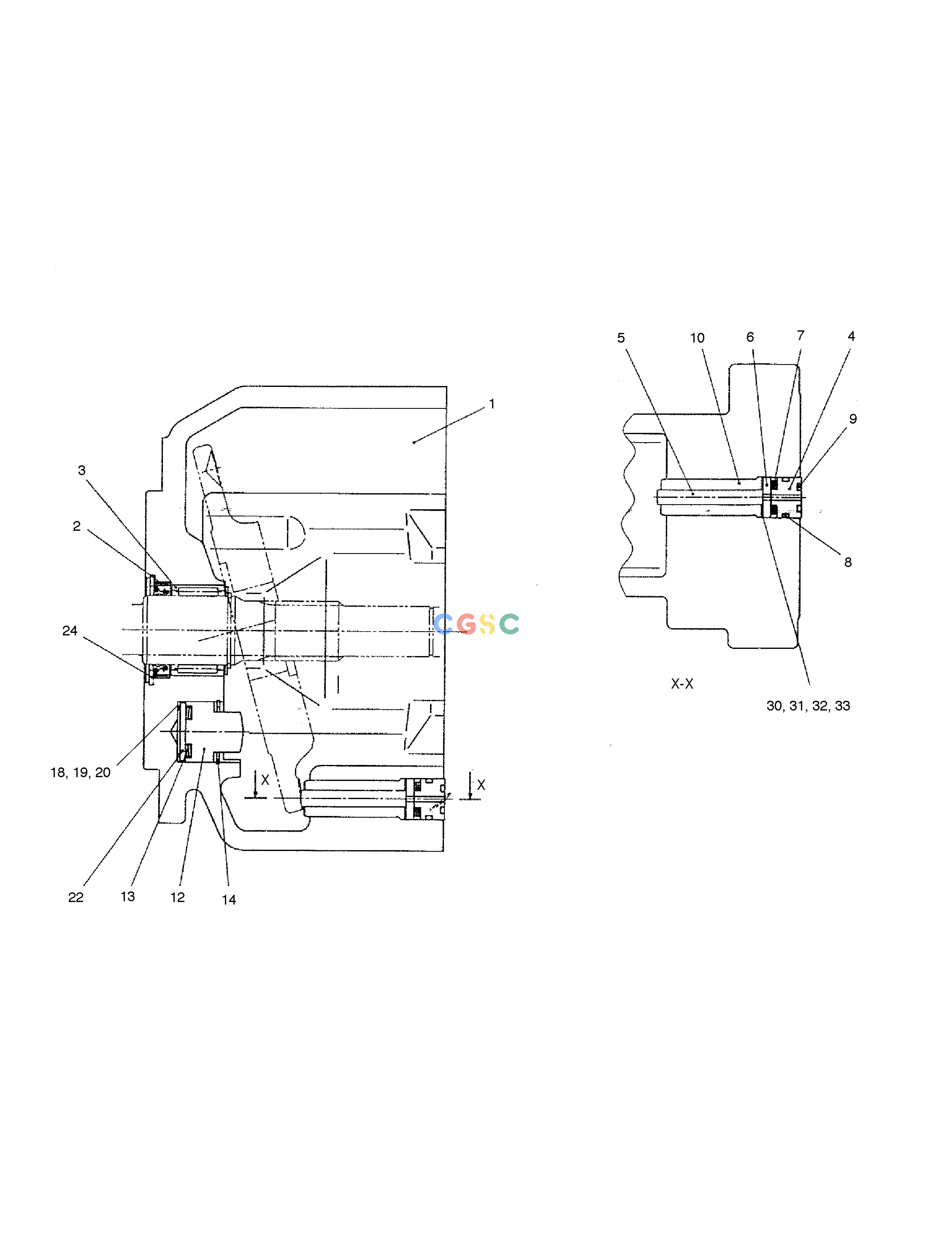

斗山零件查询HOUSING ASS'Y SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
720 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2.410-00154
|
[1] |
HOUSING
|
|
| 1. |
2.410-00156
|
[1] |
HOUSING
|
|
| 10. |
2.425-00075
|
[1] |
SLEEVE
|
|
| 12. |
2.429-00152
|
[1] |
GUIDE
|
|
| 13. |
2.114-01357
|
[2] |
WASHER;CONICAL SPRING
|
|
| 14. |
2.115-00543
|
[1] |
RING;RETAINER C TYPE
|
|
| 18. |
2.114-01358
|
[1] |
SHIM
|
|
| 19. |
2.114-01359
|
[1] |
SHIM
|
|
| 2. |
2.180-01231
|
[1] |
SEAL;OIL
|
|
| 20. |
2.114-01360
|
[1] |
SHIM
|
|
| 22. |
2.540-00023
|
[1] |
PIECE;DISTANCE
|
|
| 24. |
S6510380
|
[1] |
RING;RETAINER C-TYPE
|
|
| 3. |
2.109-00338
|
[1] |
BEARING
|
|
| 30. |
2.114-01361
|
[1] |
SHIM
|
|
| 31. |
2.114-01362
|
[1] |
SHIM
|
|
| 32. |
2.114-00414
|
[1] |
SHIM
|
|
| 33. |
2.114-01363
|
[1] |
SHIM
|
|
| 4. |
2.452-00011
|
[1] |
PISTON
|
|
| 5. |
2.123-00303
|
[1] |
PIN;PARALLEL
|
|
| 6. |
2.540-00022
|
[1] |
PIECE;DISTANCE
|
|
| 7. |
2.114-00978
|
[3] |
WASHER;SPRING
|
|
| 8. |
S8000111
|
[1] |
O-RING
|
|
| 9. |
S8000071
|
[1] |
O-RING
|
|
