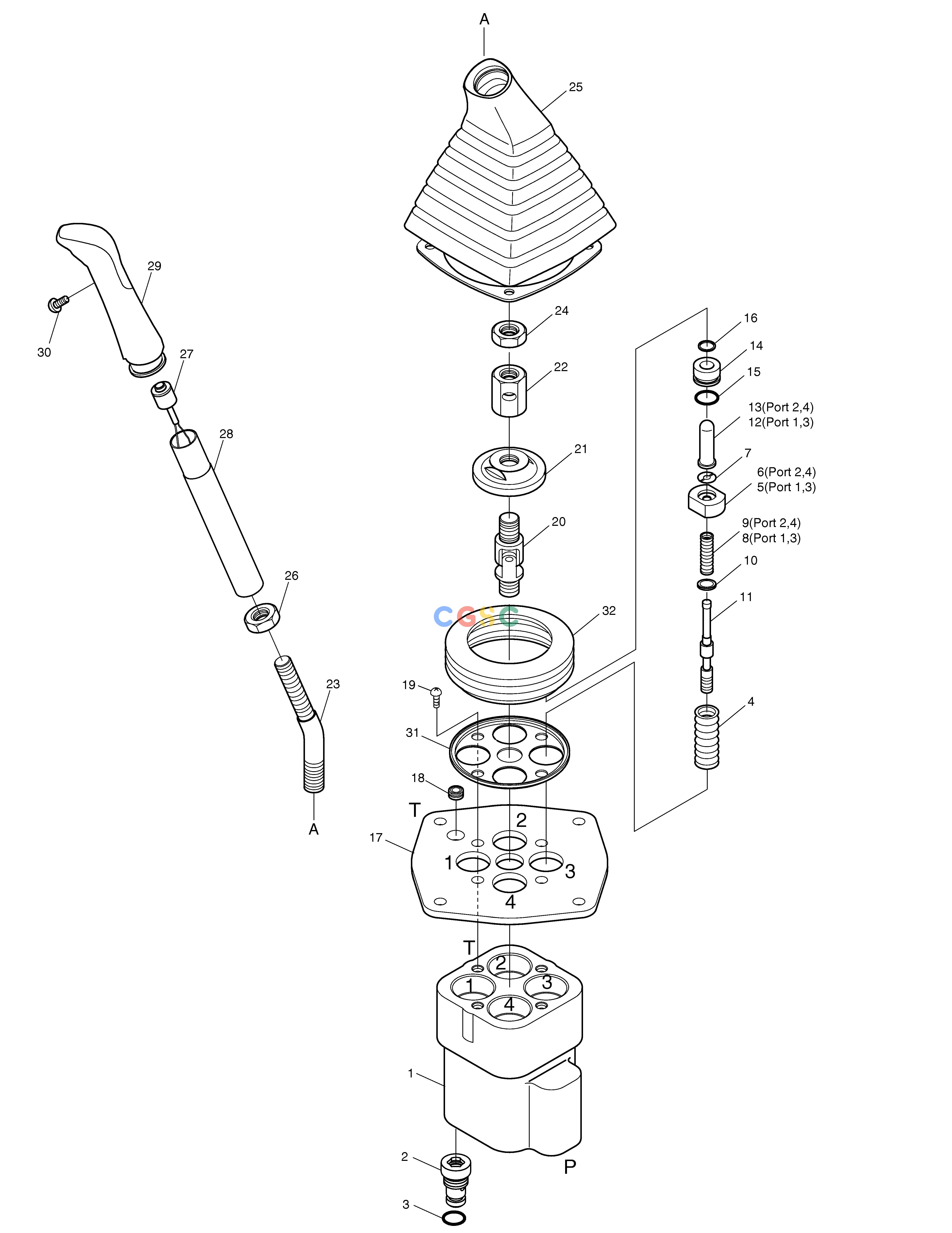

斗山零件查询JOYSTICK SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
203 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2420-9615
|
[1] |
JOYSTICK(R.H)
|
|
| -. |
2420-9616
|
[1] |
JOYSTICK(L.H)
|
|
| 1. |
J97A5001
|
[1] |
BODY
|
|
| 10. |
AJV12D103
|
[4] |
SEAT;SPRING
|
|
| 11. |
J96H2004
|
[4] |
SPOOL
|
|
| 12. |
J98E1005
|
[2] |
PUSH;ROD
|
|
| 13. |
J98E1006
|
[2] |
ROD;PUSH
|
|
| 14. |
J97A5013
|
[4] |
PLUG
|
|
| 15. |
P0020
|
[4] |
O-RING
|
|
| 16. |
RSY12
|
[4] |
SEAL;ROD
|
|
| 17. |
J97A5014
|
[1] |
PLATE
|
|
| 18. |
J97A5015
|
[1] |
BUSING
|
|
| 19. |
MB0620
|
[4] |
MACHINE SCREW
|
|
| 2. |
J98E1001
|
[4] |
PLUG
|
|
| 20. |
J95C1012
|
[1] |
JOINT ASS`Y
|
|
| 21. |
J97A5016
|
[1] |
SWASH PLATE
|
|
| 22. |
J95C1014
|
[1] |
NUT;HEX.
|
|
| 23. |
J97A1001
|
[1] |
CONNECTOR
|
|
| 24. |
HNM14-1
|
[1] |
NUT
|
|
| 25. |
J97A1002
|
[1] |
BOOT(R.H.)
|
|
| 25. |
J97A1003
|
[1] |
BOOT(L.H)
|
|
| 26. |
HNM12-1
|
[1] |
NUT
|
|
| 27. |
J97A1004
|
[1] |
SWITCH ASS'Y
|
|
| 28. |
J97A1005
|
[1] |
INSERT
|
|
| 29. |
J97A1006
|
[1] |
HANDLE ASS'Y
|
|
| 3. |
P008
|
[4] |
O-RING P8
|
|
| 30. |
SAM103
|
[1] |
SCREW
|
|
| 31. |
J97A5017
|
[1] |
PLATE
|
|
| 32. |
J97A5018
|
[1] |
BOOT
|
|
| 4. |
J98E1002
|
[4] |
SPRING
|
|
| 5. |
J97A5003
|
[2] |
SEAT;SPRING
|
|
| 6. |
J97A5004
|
[2] |
SEAT;SPRING
|
|
| 7. |
J97A5005
|
[4] |
STOPPER
|
|
| 8. |
J98E1003
|
[2] |
SPRING
|
|
| 9. |
J98E1004
|
[2] |
SPRING
|
|
