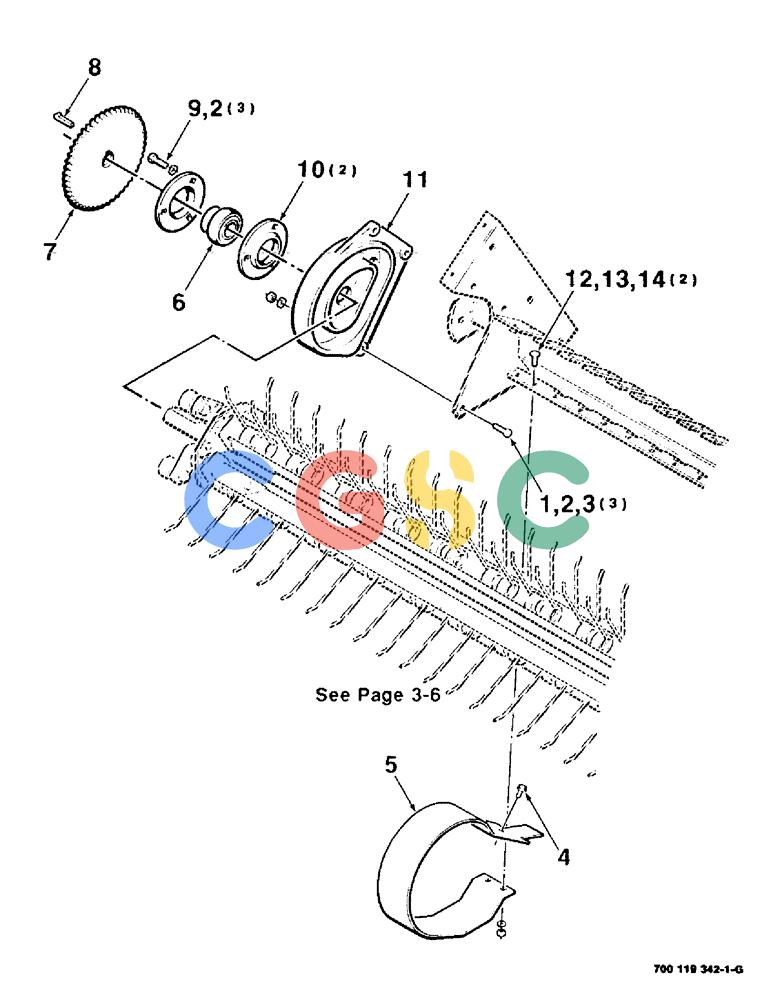

凯斯零件查询(8545) - CASE IH RECTANGULAR BALER (1/89-12/99) (3-04) - PICKUP AND CAM ASSEMBLY - RIGHT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
354 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-620
|
[3] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 72187207, 88011
|
| 2. |
492-11038
|
[6] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 3. |
425-106
|
[3] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 4. |
409-7512
|
[1] |
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
|
CAS
Hex Flg, 5/16-18 x 3/4", Serr Superseded by part number: 145913, 72187186
|
| 5. |
700112389
|
[1] |
SHIELD
|
CAS
WRAPPER - end
|
| 6. |
571588R92
|
[1] |
BALL BEARING,1.3755" ID x 72 mm OD x 1"
|
IH
- spherical Superseded by part number: 47066
|
| 7. |
700119343
|
[1] |
PINION
|
L
SPROCKET WA - 50B44 tooth
|
| 8. |
761379
|
[1] |
BUCKET TOOTH KEY
|
IH
5/16 X 5/16 X 1-3/4 GIB KEY Superseded by part number: Q3930
|
| 9. |
413-616
|
[3] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 10. |
T27207
|
[2] |
FLANGED BEARING
|
CAS
FLANGE - bearing Superseded by part number: 617863R1
|
| 11. |
700116125
|
[1] |
HOUSING
|
CAS
TRACK - cam
|
| 12. |
433-512
|
[2] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 13. |
492-11031
|
[2] |
LOCK WASHER,5/16"
|
CAS
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 14. |
425-105
|
[2] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
