日立零件查询（CG15D）CYL.;DUMP Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
877 次

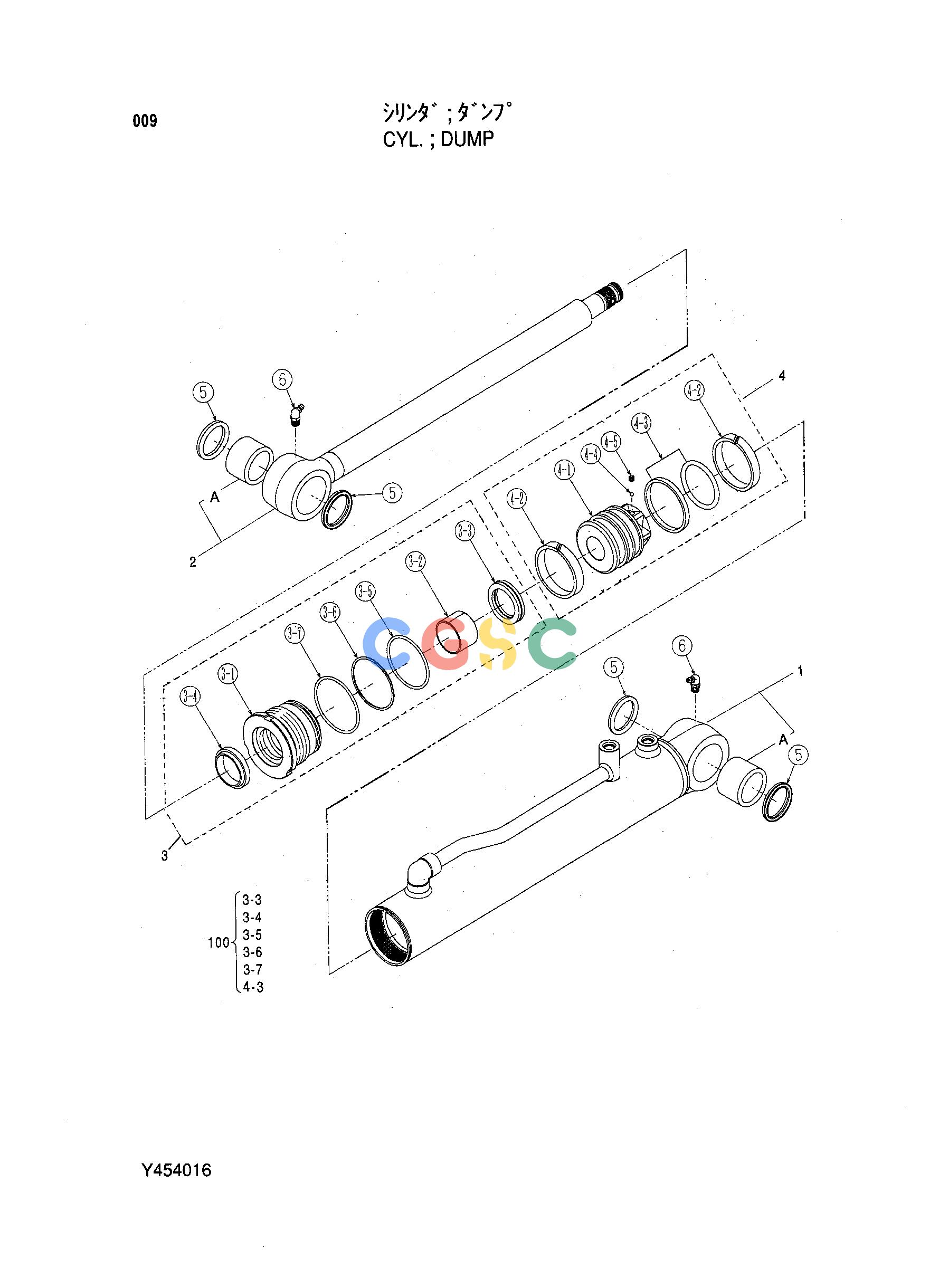

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y454016 | [1] | CYL.;DUMP | Y454016 |
| 1. | Y406959 | [1] | TUBE;CYL. | |
| 1A. | 4421736 | [1] | BUSHING;PIN | |
| 2. | Y406960 | [1] | ROD;PISTON | |
| 2A. | 4421736 | [1] | BUSHING;PIN | |
| 3. | 0800503 | [1] | HEAD;CYL. | |
| 3-1. | 0800504 | [1] | HEAD;CYL. | |
| 3-2. | 0430303 | [1] | BUSHING | |
| 3-3. | 0430304 | [1] | PACKING;U-RING | |
| 3-4. | 0800104 | [1] | RING;WIPER | |
| 3-5. | 0430806 | [1] | O-RING | |
| 3-6. | 0430807 | [1] | RING;BACK-UP | |
| 3-7. | 0430809 | [1] | O-RING | |
| 4. | 0800505 | [1] | PISTON | |
| 4-1. | 0800506 | [1] | PISTON | |
| 4-2. | 0652001 | [2] | RING;SLIDE | |
| 4-3. | 0430815 | [1] | RING;SEAL | |
| 4-4. | 0429917 | [1] | BALL;STEEL | |
| 4-5. | 0429918 | [1] | SCREW;SET | |
| 5. | Y406964 | [4] | SEAL;DUST | |
| 6. | 0429921 | [2] | FITTING;GREASE | |
| 100. | Y406538 | [1] | KIT;SEAL | |
