日立零件查询（CG15D）VALVE;SOLENOID Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
392 次

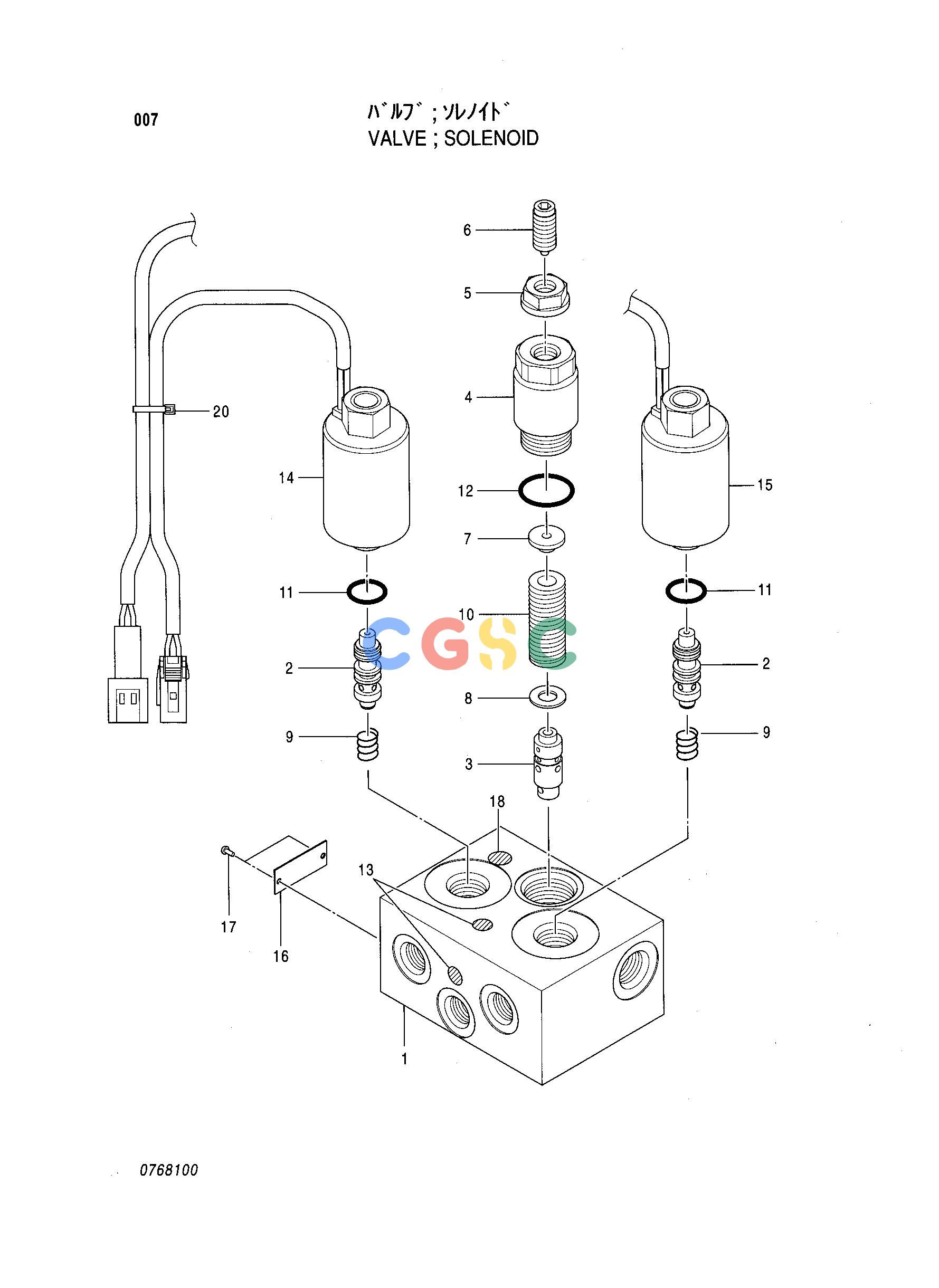

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 4415398 | [1] | VALVE;SOLENOID | 0768100 |
| 1. | +++++++ | [1] | BODY | |
| 2. | +++++++ | [2] | SPOOL | |
| 3. | +++++++ | [1] | SPOOL | |
| 4. | 0685601 | [1] | GUIDE | |
| 5. | 0499108 | [1] | NUT | |
| 6. | 0499105 | [1] | SCREW;ADJUSTING | |
| 7. | 0685602 | [1] | SEAT;SPRING | |
| 8. | 0685603 | [1] | SEAT;SPRING | |
| 9. | 0768101 | [2] | SPRING | |
| 10. | 0768102 | [1] | SPRING | |
| 11. | 4509180 | [2] | O-RING | |
| 12. | 4506420 | [1] | O-RING | |
| 13. | +++++++ | [4] | PLUG | |
| 14. | 0768103 | [1] | SOLENOID | |
| 15. | 0768104 | [1] | SOLENOID | |
| 16. | +++++++ | [1] | NAME-PLATE | |
| 17. | +++++++ | [2] | SCREW;DRIVE | |
| 18. | +++++++ | [2] | PLUG | |
| 20. | 0685705 | [1] | BAND | |
