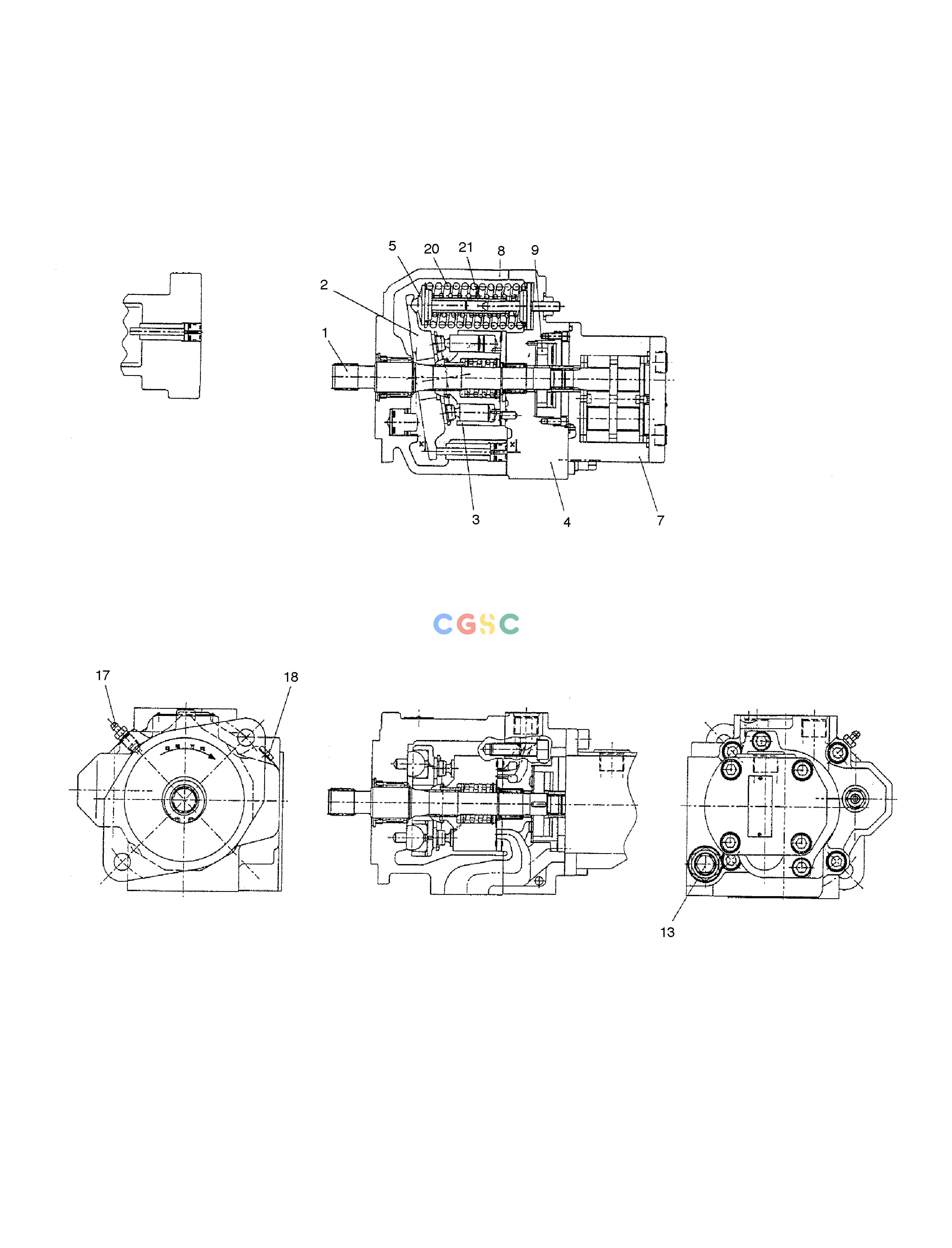

斗山零件查询MAIN PUMP SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
642 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
401-00421A
|
[1] |
MAIN PUMP
|
|
| 1. |
2.405-00242
|
[1] |
SHAFT ASS'Y
|
|
| 13. |
2.421-00265
|
[1] |
VALVE;RELIEF
|
|
| 17. |
2.421-00061
|
[1] |
BREATHER;AIR
|
|
| 18. |
2.181-00331
|
[1] |
PLUG
|
|
| 2. |
2.150-00014
|
[1] |
HANGER ASS'Y
|
|
| 20. |
2.129-00022
|
[1] |
SPRING ASS'Y
|
|
| 21. |
2.129-00023
|
[1] |
SPRING
|
|
| 3. |
2.409-00248
|
[1] |
ROTARY GROUP
|
|
| 4. |
2.403-00342
|
[1] |
COVER ASS'Y
|
|
| 5. |
2.429-00145
|
[1] |
SPRING SEAT ASS'Y
|
|
| 7. |
2.401-00056
|
[1] |
GEAR PUMP
|
|
| 8. |
2.410-00154
|
[1] |
HOUSING
|
|
| 9. |
2.401-00057
|
[1] |
PUMP;PILOT
|
|
