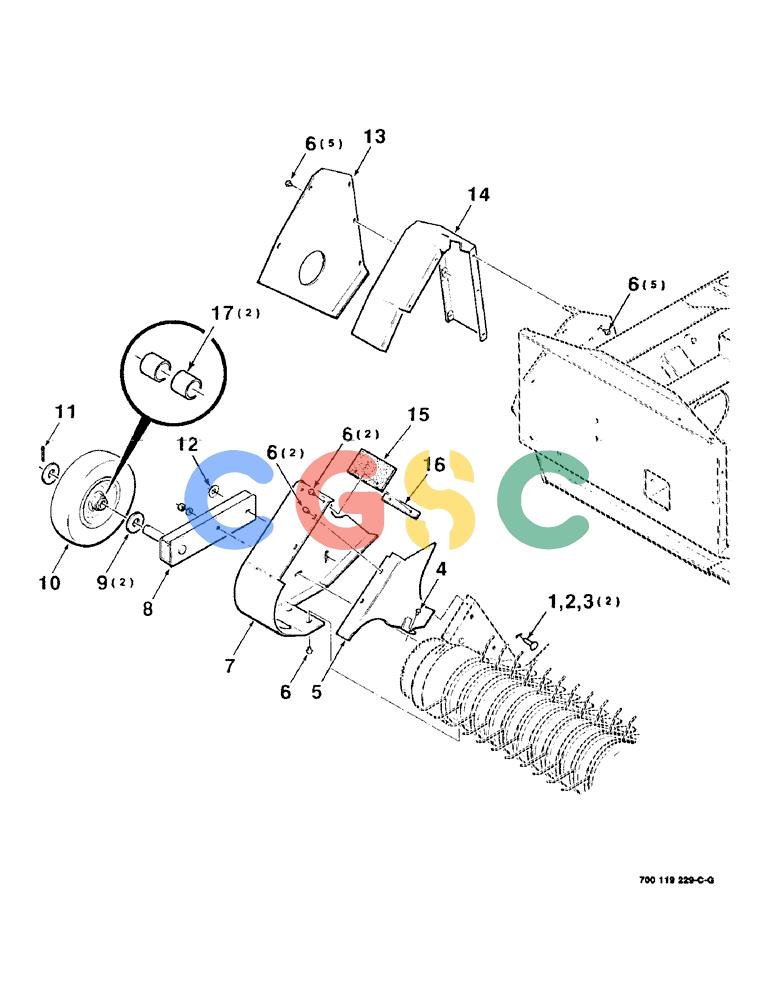

凯斯零件查询(8545) - CASE IH RECTANGULAR BALER (1/89-12/99) (3-10) - PICKUP SHIELDS AND GAUGE WHEEL ASSEMBLY - RIGHT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
690 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
433-820
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
1/2-13 X 1-1/4 RHSNB Superseded by part number: 87868
|
| 2. |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| 3. |
425-108
|
[2] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, , Hex 1/2"-13, G5 Superseded by part number: 280431
|
| 4. |
409-7512
|
[1] |
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
|
CAS
Hex Flg, 5/16-18 x 3/4", Serr Superseded by part number: 145913, 72187186
|
| 5. |
700119376
|
[1] |
SHIELD
|
CAS
- lower, right
|
| 6. |
256873
|
[15] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 7. |
700119371
|
[1] |
SHIELD
|
HFI
- lower, outer
|
| 8. |
700112269
|
[1] |
STRUT
|
CAS
- gauge, wheel
|
| 9. |
495-21106
|
[2] |
WASHER,1"
|
CAS
1 HARDENED PLAIN WASHER Superseded by part number: 87374
|
| 10. |
700707953
|
[1] |
RIM
|
CAS
WHEEL - gauge (Includes item 17) Superseded by part number: 705574, 84351108
|
| 11. |
432-1224
|
[1] |
COTTER PIN,3/16" x 1-1/2"
|
CAS
3/16" x 1 1/2" Superseded by part number: 80754
|
| 12. |
495-21056
|
[1] |
WASHER,1/2"
|
CAS
1/2 HARDENED PLAIN WASHER Superseded by part number: 72187265, 80700
|
| 13. |
700119365
|
[1] |
SHIELD
|
HFI
- upper, outer
|
| 14. |
700119359
|
[1] |
SHIELD
|
HFI
- cap
|
| 15. |
700119363
|
[1] |
SHIELD
|
CAS
- rubber
|
| 16. |
700119367
|
[1] |
STRAP
|
CAS
- shield
|
| 17. |
700712011
|
[2] |
BUSHING
|
CAS
|
