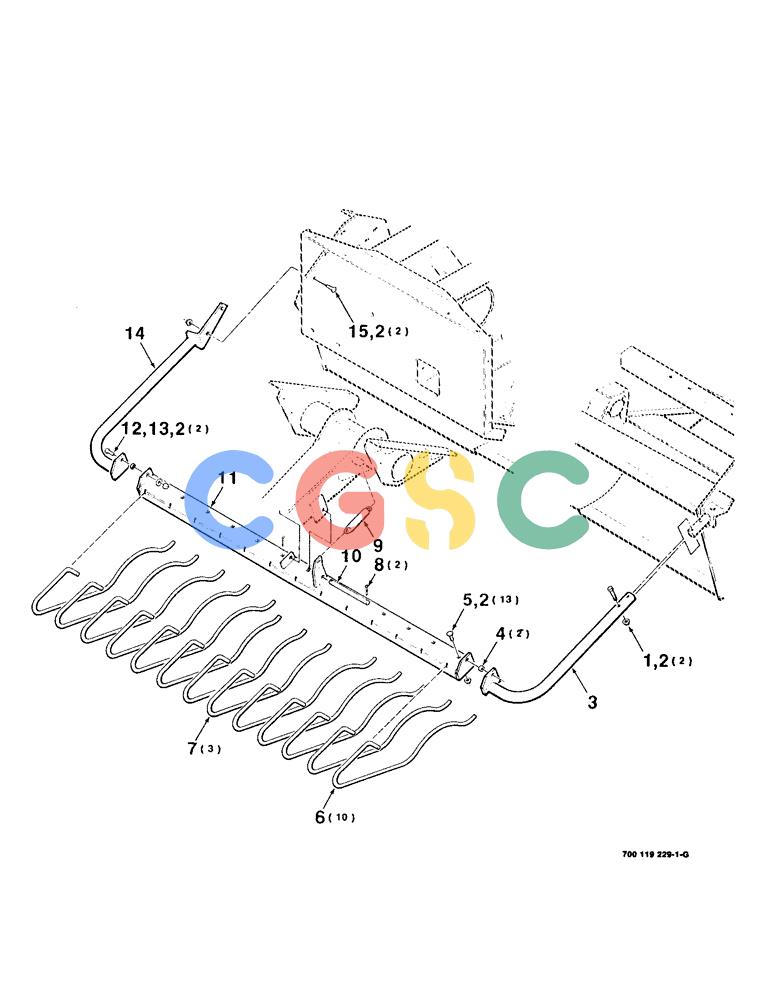

凯斯零件查询(8545) - CASE IH RECTANGULAR BALER (1/89-12/99) (3-14) - WINDGUARD ASSEMBLY - PICKUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
589 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-628
|
[2] |
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 72187210, 9706689
|
| 2. |
232-5316
|
[19] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 3. |
700119816
|
[1] |
SHIELD
|
CAS
ARM - support, left
|
| 4. |
6823769
|
[2] |
SPACER
|
CAS
|
| 5. |
433-620
|
[13] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5 Superseded by part number: 86508773
|
| 6. |
700709004
|
[10] |
TINE
|
CAS
- outer
|
| 7. |
700709003
|
[3] |
TINE
|
CAS
- inner
|
| 8. |
432-1024
|
[2] |
COTTER PIN,5/32" x 1 1/2"
|
CAS
5/32" x 1 1/2" Superseded by part number: 72187233, 88350
|
| 9. |
7758220
|
[1] |
SPRING
|
CAS
- tension
|
| 10. |
700119366
|
[1] |
PIN
|
CAS
- center
|
| 11. |
700119337
|
[1] |
SUPPORT
|
CAS
- tine
|
| 12. |
413-616
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 88206, 72187206
|
| 13. |
495-11041
|
[2] |
WASHER,0.406" ID x 0.812" OD x 0.065" W
|
CAS
Superseded by part number: 87016
|
| 14. |
700119812
|
[1] |
SHIELD
|
CAS
ARM - support, right
|
| 15. |
434-616
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
3/8-16 x 1 RHSNB Superseded by part number: 80280503
|
