日立零件查询（CG45）CYLINDER HEAD Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
791 次

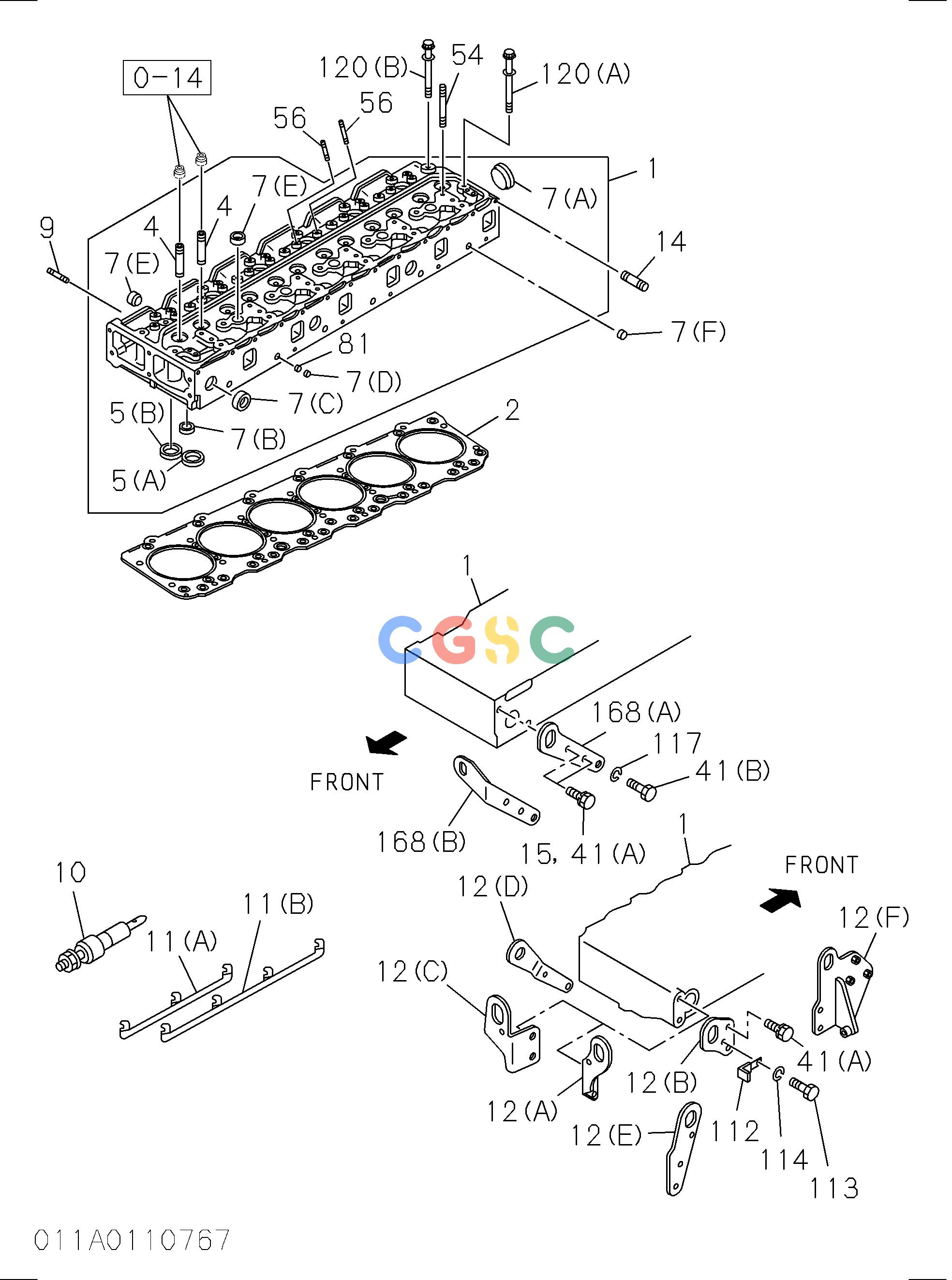

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1111106142 | [1] | HEAD ASM; CYL | |
| 2. | 1111411950 | [1] | GASKET; CYL HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 4. | 5117210010 | [12] | GUIDE; VLV | |
| 5(A). | 1117150540 | [6] | SEAT; VLV INSERT | INLET |
| 5(B). | 1117110430 | [6] | SEAT; VLV INSERT | EXHAUST |
| 7(A). | 1096000051 | [1] | CUP; SEALING,CYL HEAD | 0D=45 |
| 7(B). | 9111291280 | [3] | CUP; SEALING,CYL HEAD | 0D=20 |
| 7(C). | 5112190150 | [3] | CUP; SEALING,CYL HEAD | 0D=32 |
| 7(D). | 5096000130 | [6] | CUP; SEALING,CYL HEAD | 0D=12.3 |
| 7(E). | 1096000160 | [11] | CUP; SEALING,CYL HEAD | 0D=25 |
| 7(F). | 9111296010 | [5] | CUP; SEALING,CYL HEAD | 0D=12.5 |
| 9. | 9041108250 | [6] | STUD; INL MANIF | |
| 9. | 9041108250 | [3] | STUD; INL MANIF | |
| 10. | 9825139289 | [6] | PLUG; GLOW | 20.5V |
| 10. | 1825130430 | [6] | PLUG; GLOW | 20.5V |
| 11(A). | 5197320011 | [1] | CONNECTOR; GLOW PLUG | |
| 11(B). | 5197320021 | [1] | CONNECTOR; GLOW PLUG | |
| 12(B). | 9117776221 | [1] | HANGER; ENG,RR | |
| 14. | 9096300260 | [12] | STUD; EXH MANIF | M8X86 L=99 |
| 41(A). | 0500410220 | [1] | BOLT; ENG HANGER | |
| 41(A). | 0286810200 | [2] | BOLT; ENG HANGER | |
| 41(B). | 0208014250 | [1] | BOLT; ENG HANGER | A |
| 41(A). | 0286810200 | [1] | BOLT; ENG HANGER | |
| 41(A). | 0500410220 | [2] | BOLT; ENG HANGER | |
| 54. | 9098301630 | [4] | STUD; ROCKER ARM | M8X83 L=96 |
| 56. | 1093000180 | [12] | STUD; NOZZLE HOLDER | M8X40 L=58 |
| 81. | 9096600340 | [6] | PLUG; PLATE,DRILLED PASSAGE | |
| 112. | 9099167550 | [1] | CLIP; HANGER,GLOW HARNESS | |
| 113. | 0208006100 | [1] | BOLT; CLIP | A |
| 113. | 0280806100 | [1] | BOLT; CLIP | |
| 114. | 9091505060 | [1] | WASHER; LK,CLIP | |
| 117. | 9091505140 | [1] | WASHER; LK,HANGER | |
| 120(A). | 1090701010 | [20] | BOLT; CYL HD TO HSG | M12X113 |
| 120(B). | 1090701000 | [6] | BOLT; CYL HD TO HSG | M12X100 |
| 168(A). | 5117770551 | [1] | HANGER; ENG,FRT | |
