日立零件查询（CG45）CYLINDER BLOCK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
460 次

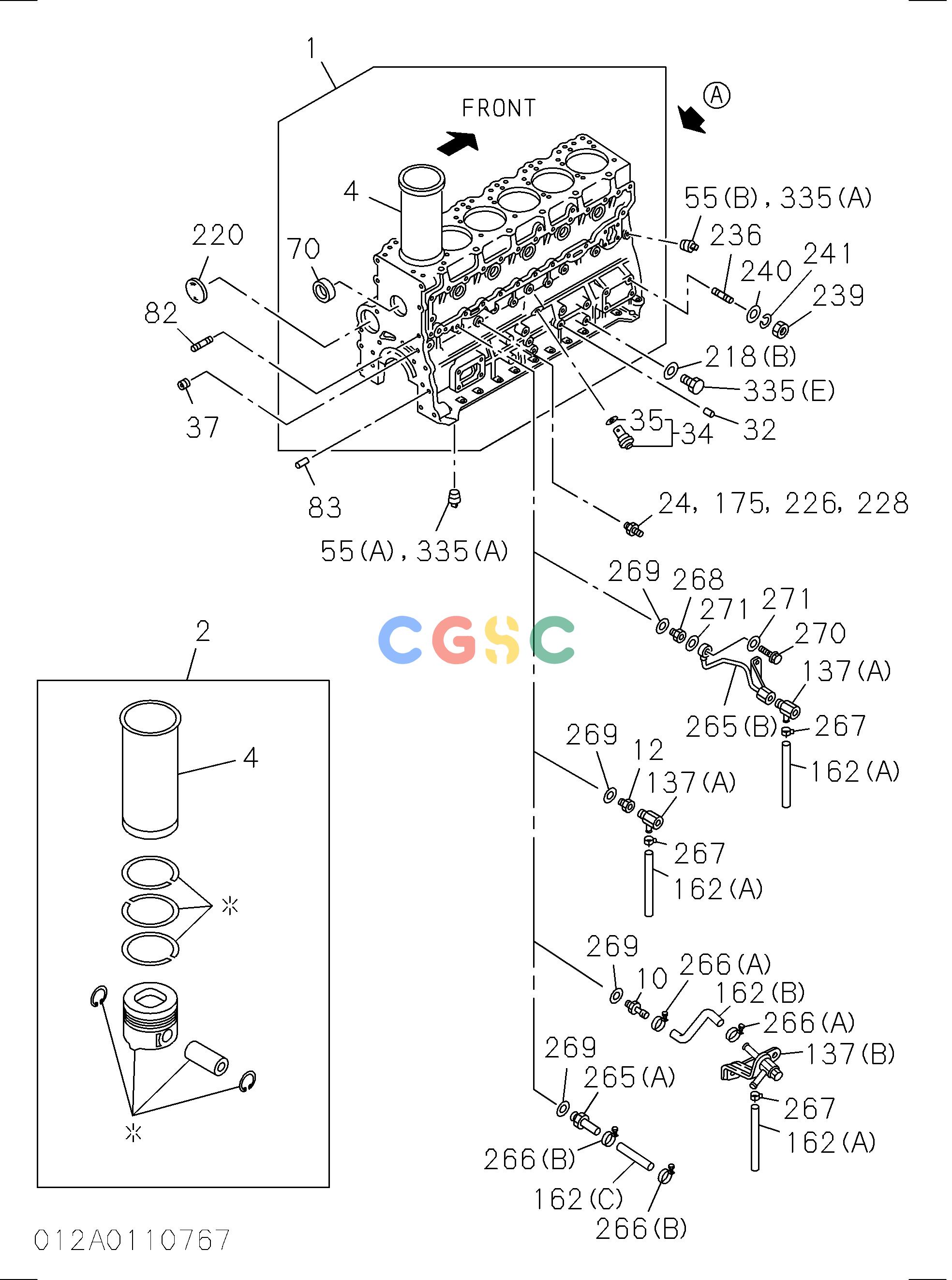

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1112104483 | [1] | BLOCK ASM; CYL | |
| 2. | 1878115290 | [6] | LINER SET; ENG CYL | GRADE=1 |
| 2. | 1878115300 | [6] | LINER SET; ENG CYL | GRADE=2 |
| 2. | 1878115310 | [6] | LINER SET; ENG CYL | GRADE=3 |
| 2. | 1878115320 | [6] | LINER SET; ENG CYL | GRADE=4 |
| 4. | 1112612400 | [6] | LINER; C/BL | OD GRD=1,ID GRD=AXALSO INCLUDED IN LINER SET. |
| 4. | 1112612410 | [6] | LINER; C/BL | OD GRD=1,ID GRD=CXALSO INCLUDED IN LINER SET. |
| 4. | 1112612420 | [6] | LINER; C/BL | OD GRD=2,ID GRD=AXALSO INCLUDED IN LINER SET. |
| 4. | 1112612430 | [6] | LINER; C/BL | OD GRD=2,ID GRD=CXALSO INCLUDED IN LINER SET. |
| 4. | 1112612440 | [6] | LINER; C/BL | OD GRD=3,ID GRD=AXALSO INCLUDED IN LINER SET. |
| 4. | 1112612450 | [6] | LINER; C/BL | OD GRD=3,ID GRD=CXALSO INCLUDED IN LINER SET. |
| 4. | 1112612460 | [6] | LINER; C/BL | OD GRD=4,ID GRD=AXALSO INCLUDED IN LINER SET. |
| 4. | 1112612470 | [6] | LINER; C/BL | OD GRD=4,ID GRD=CXALSO INCLUDED IN LINER SET. |
| 8. | 1090004691 | [14] | BOLT; BRG CAP | |
| 12. | 1096660360 | [1] | CONNECTOR; DRAIN COCK,WATER | |
| 28. | 1112191630 | [1] | COVER; OIL PORT | |
| 30. | 8941480790 | [2] | PIN; CYL HD GASKET SETTING | OD=16 |
| 34. | 8970233390 | [1] | VALVE; OIL RELIEF | |
| 35. | 5096230350 | [1] | GASKET; RELIEF VLV | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 37. | 1096050681 | [2] | PLUG; OIL GALLERY | PT1/2 |
| 38. | 1097400780 | [1] | PIN; TIMING GEAR CASE | |
| 55(A). | 1096050660 | [1] | PLUG; OIL GALLERY | PT3/8 |
| 70. | 1096000520 | [2] | CUP; SEALING,FRT & RR | OD=60 |
| 71(A). | 1112920200 | [3] | GASKET; COVER TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 71(A). | 8943673681 | [3] | GASKET; COVER TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 72(C). | 5112901451 | [1] | COVER; TAPPET CHAMBER | |
| 72(B). | 8970285250 | [2] | COVER; TAPPET CHAMBER | |
| 74(A). | 1090520221 | [2] | BOLT; COVER TO C/BL | L=84 |
| 74(A). | 8943675301 | [4] | BOLT; COVER TO C/BL | L=56 |
| 80. | 1096000121 | [3] | CUP; SEALING,TAPPET CHAMBER | |
| 82. | 5093000231 | [1] | STUD; FLYWHEEL HSG | |
| 83. | 9081510180 | [2] | PIN; FLYWHEEL HSG | |
| 113. | 5112190140 | [2] | CUP; SEALING | OD=28 |
| 130. | 5112570011 | [1] | DOWEL; BRG CAP | |
| 136. | 9112246021 | [1] | BUSHING; DRIVE SHAFT,OIL PUMP | |
| 137(A). | 1096800240 | [1] | COCK; DRAIN,WATER | |
| 162(A). | 9099147010 | [1] | HOSE; WATER DRAIN,C/BL | L=510 S.B.L=10000 |
| 179. | 9095720080 | [6] | GASKET; COVER TO BOLT | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 218(A). | 9095714140 | [1] | GASKET; PLUG,C/BL SIDE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 218(A). | 9095720140 | [1] | GASKET; PLUG,C/BL SIDE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 218(B). | 9095714120 | [1] | GASKET; PLUG,C/BL SIDE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 220. | 9098600190 | [1] | PLUG; PLATE,CM/SHF,RR | |
| 223. | 9099023040 | [1] | CONNECTOR; OIL PRESSURE | PT1/8-1/4 |
| 228. | 5096540130 | [1] | NIPPLE; ELEC TIMER | PT1/8 |
| 236. | 1093000550 | [1] | STUD; ENG FOOT | L=30.5 |
| 242. | 0501408200 | [2] | BOLT; COVER,OIL PORT | A |
| 242. | 0286808200 | [2] | BOLT; COVER,OIL PORT | |
| 267. | 8970157541 | [1] | CLIP; DRAIN HOSE | |
| 269. | 1096301150 | [1] | GASKET; NIPPLE,C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 279. | 0208010200 | [2] | BOLT; BRKT,ENG STOPPER | A |
| 279. | 0286810200 | [2] | BOLT; BRKT,ENG STOPPER | |
| 279. | 0286810200 | [2] | BOLT; BRKT,ENG STOPPER | |
| 280. | 9091505100 | [2] | WASHER; LK,BRKT | |
| 281(A). | 5197890030 | [1] | BRACKET; CABLE,ENG STOPPER | |
| 335(A). | 5096050180 | [10] | PLUG; C/BL,SIDE | PT1/8 |
| 335(C). | 1096050791 | [1] | PLUG; C/BL,SIDE | |
| 335(D). | 9992023140 | [1] | PLUG; C/BL,SIDE | |
| 335(E). | 9992023120 | [1] | PLUG; C/BL,SIDE | |
