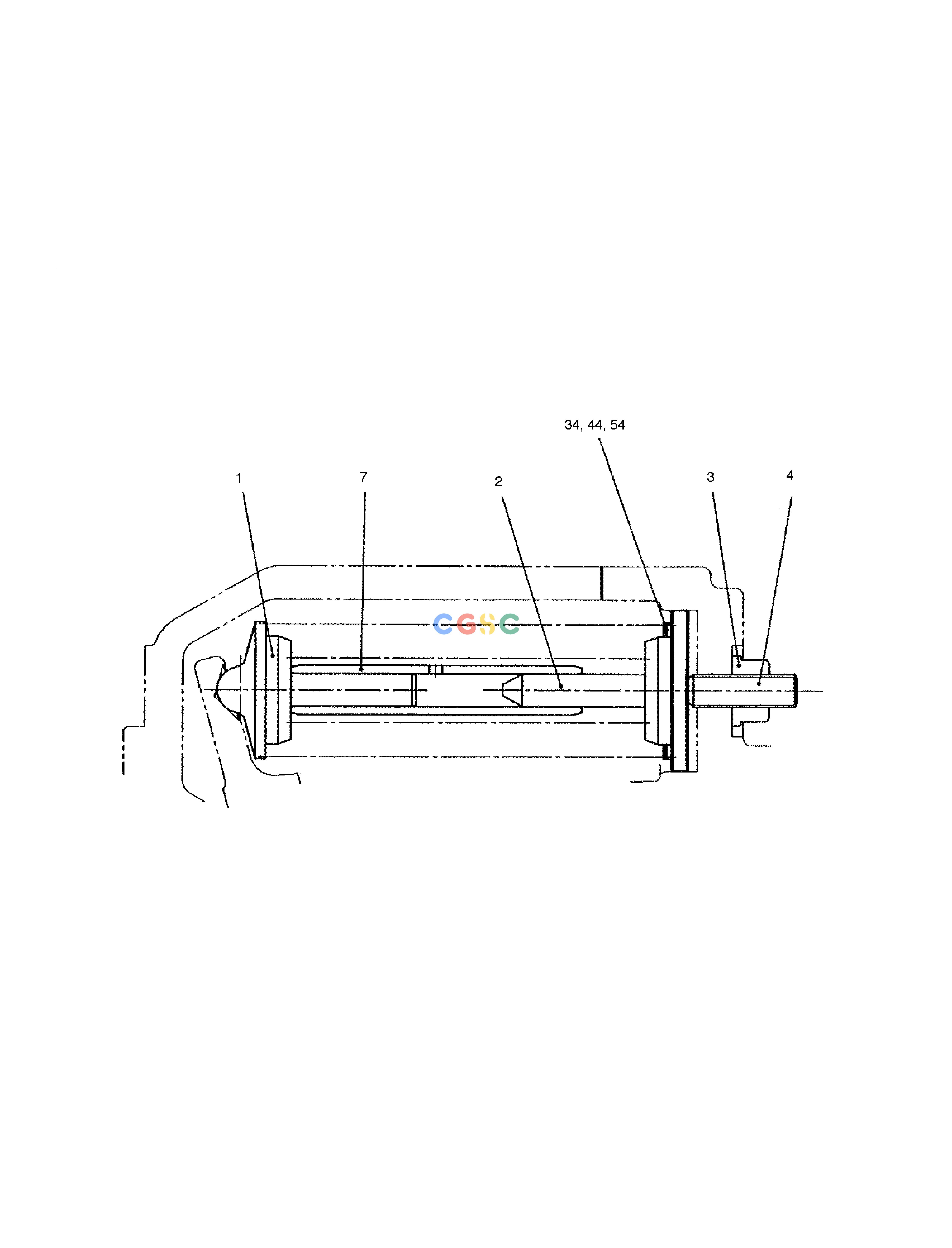

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 2.429-00145 | [1] | SPRING SEAT ASS'Y | |
| 1. | 2.429-00149 | [1] | SEAT;SPRING | |
| 2. | 2.429-00150 | [1] | SEAT;SPRING | |
| 3. | 2.121-00266 | [1] | NUT;LOCK | |
| 34. | 2.114-00350 | [2] | SHIM | |
| 4. | S3524101 | [1] | SCREW;SET | |
| 44. | 2.114-00349 | [2] | SHIM | |
| 54. | 2.114-01356 | [2] | SHIM | |
| 7. | 2.429-00151 | [1] | GUIDE;SPRING |
