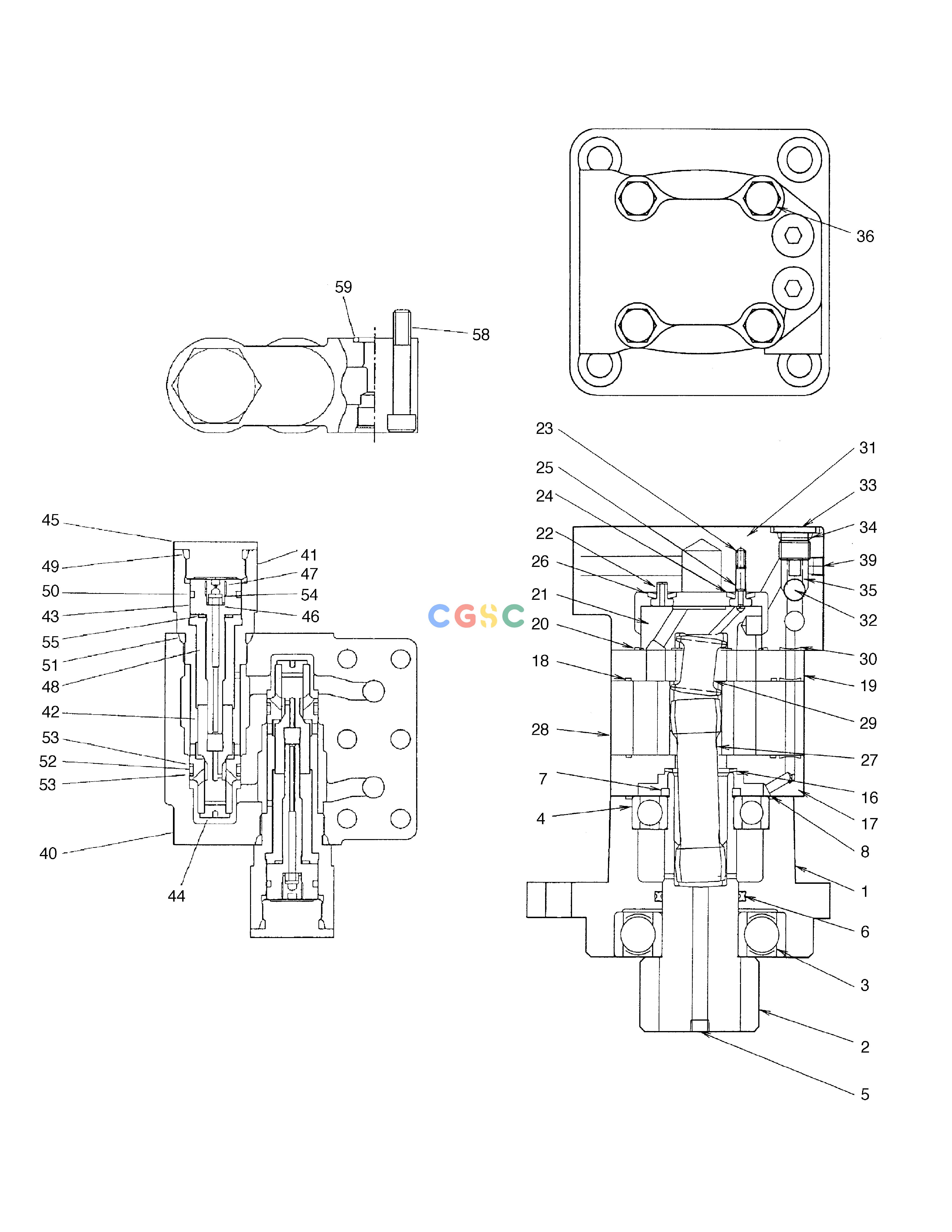

斗山零件查询SWING MOTOR SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
978 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
MA5511
|
[1] |
SEAL KIT(6.8.16.8.20.24.26.30.34)
|
|
| . |
MA5507
|
[1] |
SEAL KIT;RELIEF V/V(49.50.51.52.53)
|
|
| -. |
2401-9253
|
[1] |
SWING MOTOR
|
|
| 1. |
AD0613C
|
[1] |
HOUSING;BEARING
|
|
| 16. |
9050
|
[1] |
SEAL
|
|
| 17. |
7390-1
|
[1] |
PLATE;WEAR
|
|
| 18. |
9022S-6
|
[2] |
O-RING
|
|
| 19. |
8432S-4
|
[1] |
PLATE;VALVE
|
|
| 2. |
AD0875B
|
[1] |
GEAR;PINION
|
|
| 20. |
9022S-2
|
[1] |
O-RING
|
|
| 21. |
8435S-6
|
[1] |
VALVE
|
|
| 22. |
8915-1
|
[1] |
PLATE;BALANCE
|
|
| 23. |
7383
|
[2] |
SPRING
|
|
| 24. |
9135-1
|
[1] |
SEAL;INNER FACE
|
|
| 25. |
14351
|
[2] |
PIN
|
|
| 26. |
9135-2
|
[1] |
SEAL;OUTER FACE
|
|
| 27. |
AD0690C-4
|
[1] |
DRIVE;2K
|
|
| 28. |
7403CH-403
|
[1] |
ROLLER;SEAT
|
|
| 29. |
8433
|
[1] |
DRIVE;VALVE
|
|
| 3. |
AA0006A-5
|
[1] |
BEARING;BALL
|
|
| 30. |
9022S-12
|
[3] |
O-RING
|
|
| 31. |
8355S-41
|
[1] |
HOUSING
|
|
| 32. |
AA0013A-1
|
[2] |
BALL;STEEL
|
|
| 33. |
AH0110A
|
[2] |
PLUG
|
|
| 34. |
A40001-14
|
[2] |
O-RING(IBP-14)
|
|
| 35. |
AH0111A-2
|
[2] |
SPRING
|
|
| 36. |
14300
|
[4] |
BOLT;HEX.
|
|
| 39. |
A42041
|
[1] |
PLUG;SOCKET
|
|
| 4. |
AD0160A
|
[1] |
BEARING;BALL
|
|
| 40. |
AH0347D
|
[1] |
BODY;VALVE
|
|
| 41. |
AH0307B
|
[2] |
CARTRIDGE
|
|
| 42. |
AH0308B
|
[2] |
PLUNGER
|
|
| 43. |
AH0335B
|
[2] |
PISTON
|
|
| 44. |
AH0312A
|
[2] |
PLUG;ORIFICE
|
|
| 45. |
AH0310B
|
[2] |
PLUG
|
|
| 46. |
AH0338A
|
[2] |
COLLAR
|
|
| 47. |
AH0313B-4
|
[2] |
PLUG;ORIFICE
|
|
| 48. |
AH0311A-0
|
[2] |
SPRING
|
|
| 49. |
A40001-25
|
[2] |
O-RING
|
|
| 5. |
A42041
|
[1] |
PLUG;SOCKET
|
|
| 50. |
AH0318A
|
[2] |
CAP;SEAL
|
|
| 51. |
A40001-28
|
[2] |
O-RING
|
|
| 52. |
A40001-20
|
[2] |
O-RING
|
|
| 53. |
AA0008A-20
|
[4] |
RING;BACK-UP
|
|
| 54. |
AH0339A
|
[2] |
ELEMENT;FILTER
|
|
| 55. |
AH0349A-0
|
[-] |
SHIM
|
|
| 58. |
AA0033A-50
|
[6] |
BOLT
|
|
| 59. |
A40001-16
|
[2] |
O-RING
|
|
| 6. |
AD0121A
|
[1] |
RING;X
|
|
| 7. |
7384-3
|
[1] |
RING;RETAINING
|
|
| 8. |
9022S-6
|
[1] |
O-RING
|
|
| A. |
AD0876B
|
[1] |
PINION GEAR ASS'Y
|
|
| B. |
2-160DOS-E3379
|
[1] |
MOTOR ASS'Y
|
|
| C. |
AH0352B-150
|
[2] |
RELIEF VALVE
|
|
