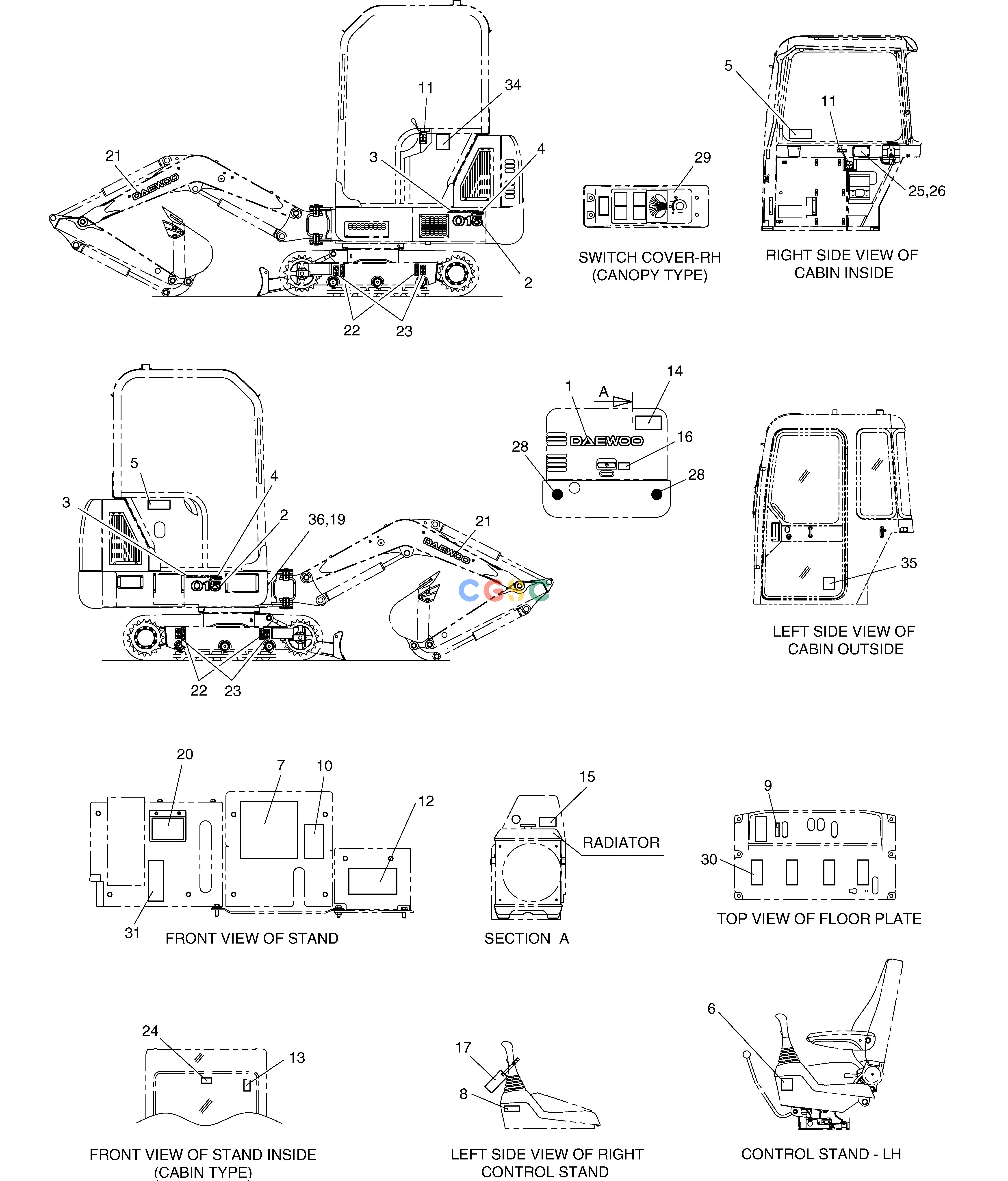

斗山零件查询NAME PLATE-EUROPE SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
667 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
190-00553
|
[-] |
NAME PLATE-EUROPE
|
|
| 1. |
2190-3385D7
|
[1] |
PLATE;NAME(DAEWOO)
|
|
| 10. |
190-00094
|
[1] |
PLATE;NAME(CAUTION)
|
|
| 11. |
2190-2633
|
[1] |
PLATE;NAME
|
|
| 12. |
190-00092
|
[1] |
PLATE;NAME
|
|
| 13. |
190-00093
|
[1] |
PLATE;NAME(SLIDE WINDOW)
|
|
| 14. |
190-00163
|
[1] |
PLATE;NAME
|
|
| 15. |
190-00097
|
[1] |
NAME PLATE
|
|
| 16. |
190-00557
|
[1] |
PLATE;NAME
|
|
| 17. |
190-00098
|
[1] |
PLATE;NAME
|
|
| 19. |
2122-1002D2
|
[4] |
RIVET
|
|
| 2. |
190-00556
|
[2] |
PLATE;NAME
|
|
| 20. |
190-00771A
|
[1] |
PLATE;NAME(FUSE BOX)
|
|
| 21. |
2190-3385D11
|
[2] |
PLATE;NAME(DAEWOO)
|
|
| 22. |
2190-2476
|
[4] |
PLATE;NAME(TIE DOWN)
|
|
| 23. |
2190-2477
|
[4] |
PLATE;NAME(LIFTING)
|
|
| 24. |
190-00101
|
[1] |
PLATE;NAME(HAMMER)
|
|
| 25. |
2190-3425C
|
[1] |
PLATE;NAME(TOPS)
|
|
| 26. |
2122-1002D2
|
[4] |
RIVET
|
|
| 28. |
190-00282
|
[2] |
PLATE;NAME(SWING AREA)
|
|
| 29. |
190-00397
|
[1] |
PLATE;NAME
|
|
| 3. |
2190-3575
|
[2] |
NAME;PLATE
|
|
| 30. |
2190-2314D1
|
[5] |
TAPE;ANTI-SKID
|
|
| 31. |
2190-1256
|
[1] |
PLATE;NAME(SWING LOCK)
|
|
| 34. |
190-00730D6
|
[1] |
PLATE;NAME(SOUND POWER)
|
|
| 35. |
190-01059D6
|
[1] |
PLATE;NAME(SOUND POWER)
|
|
| 36. |
190-01104
|
[1] |
PLATE;NAME(SERIAL)
|
|
| 4. |
190-00568
|
[2] |
PLATE;NAME(PLUS)
|
|
| 5. |
6190-1026
|
[1] |
PLATE;NAME
|
|
| 6. |
2190-3309
|
[1] |
PLATE;NAME(LEVER LOCK)
|
|
| 7. |
190-00589B
|
[1] |
PLATE;NAME
|
|
| 8. |
2190-2878
|
[1] |
PLATE;NAME
|
|
| 9. |
2190-3133
|
[1] |
PLATE;NAME(BOOM SWING)
|
|
