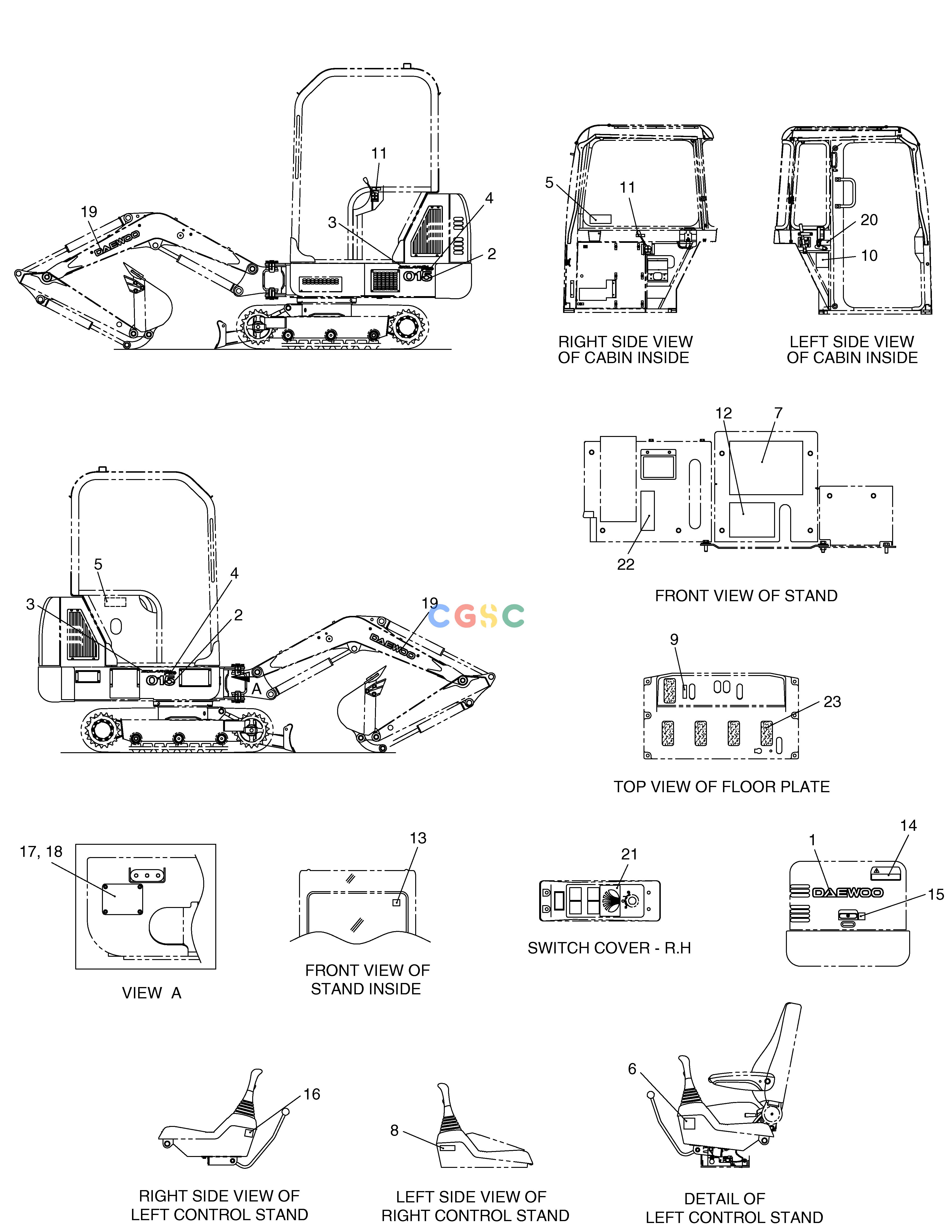

斗山零件查询NAME PLATE-KOREA SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
635 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
190-00527
|
[-] |
NAME PLATE
|
|
| 1. |
2190-3385D7
|
[1] |
PLATE;NAME(DAEWOO)
|
|
| 10. |
190-00639
|
[1] |
PLATE;NAME
|
|
| 11. |
2190-2633
|
[1] |
PLATE;NAME
|
|
| 12. |
2190-1842A
|
[1] |
PLATE;NAME
|
|
| 13. |
2190-3325
|
[1] |
PLATE;NAME
|
|
| 14. |
2190-3306
|
[1] |
PLATE;NAME
|
|
| 15. |
2190-3302
|
[1] |
PLATE;NAME
|
|
| 16. |
2190-3374
|
[1] |
PLATE;NAME
|
|
| 17. |
2190-2890A
|
[1] |
PLATE;NAME
|
|
| 18. |
2122-1002D2
|
[4] |
RIVET
|
|
| 19. |
2190-3385D11
|
[2] |
PLATE;NAME(DAEWOO)
|
|
| 2. |
190-00556
|
[2] |
PLATE;NAME
|
|
| 20. |
2190-3326
|
[1] |
PLATE;NAME
|
|
| 21. |
190-00397
|
[1] |
PLATE;NAME
|
|
| 22. |
2190-1256
|
[1] |
PLATE;NAME(SWING LOCK)
|
|
| 23. |
2190-2314D1
|
[5] |
TAPE;ANTI-SKID
|
|
| 3. |
2190-3575
|
[2] |
NAME;PLATE
|
|
| 4. |
190-00568
|
[2] |
PLATE;NAME(PLUS)
|
|
| 5. |
6190-1026
|
[1] |
PLATE;NAME
|
|
| 6. |
2190-3309
|
[1] |
PLATE;NAME(LEVER LOCK)
|
|
| 7. |
190-00636A
|
[1] |
PLATE;NAME
|
|
| 8. |
2190-2878
|
[1] |
PLATE;NAME
|
|
| 9. |
2190-3133
|
[1] |
PLATE;NAME(BOOM SWING)
|
|
