斗山零件查询SPARE PARTS SOLAR 015PLUS (S/N 20001~) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
290 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

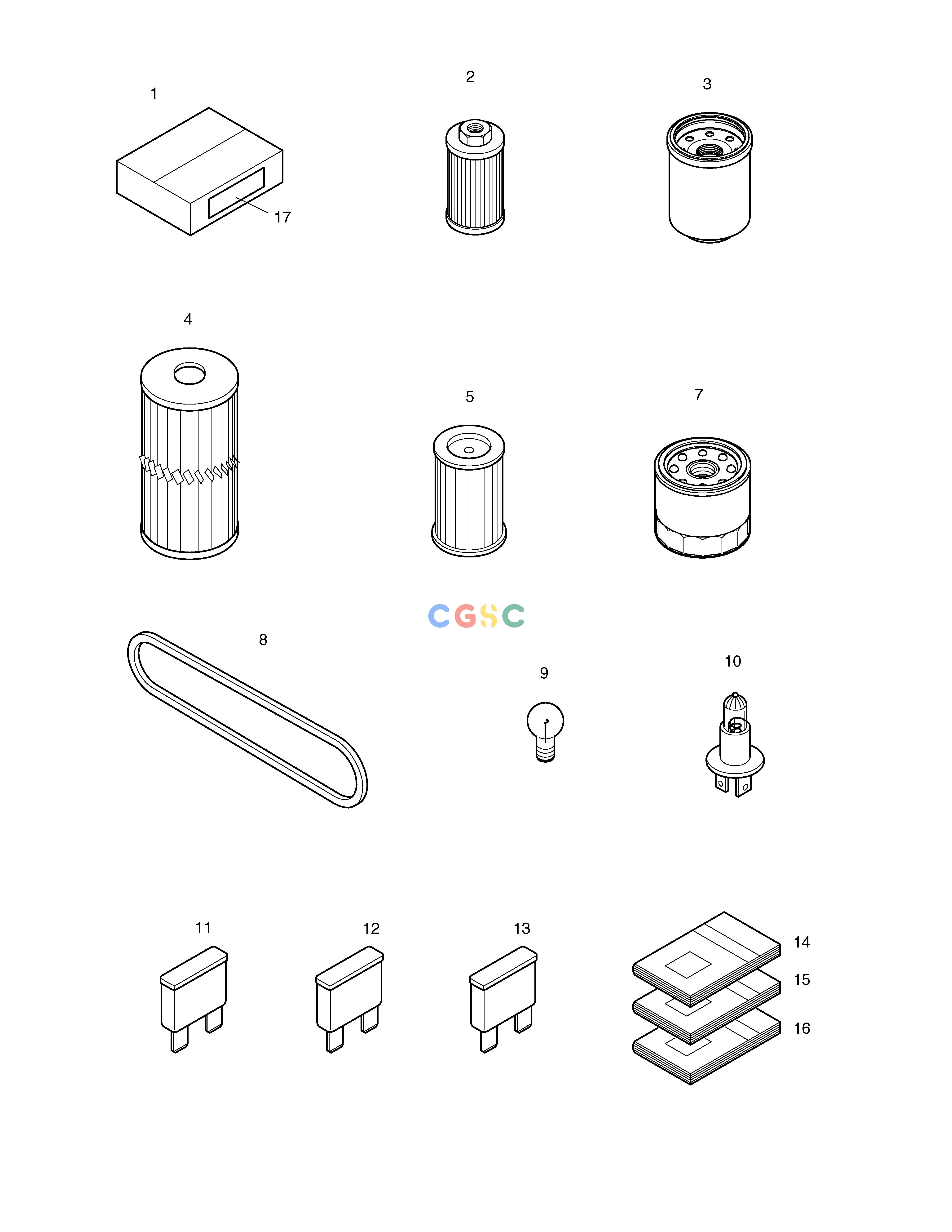

918-00108
|
[-] |
SPARE PARTS
|
|
| 1. |
2512-9007
|
[1] |
BOX;SPARE
|
|
| 10. |
2515-1016D2
|
[1] |
BULB
|
|
| 11. |
2527-1016
|
[2] |
FUSE,BLADE 10A
|
|
| 12. |
2527-1017
|
[2] |
FUSE,BLADE 15A
|
|
| 13. |
2527-1018
|
[2] |
FUSE,BLADE 20A
|
|
| 14. |
021-00018EF
|
[1] |
PARTS LIST
|
|
| 15. |
022-00018E
|
[1] |
OPERATION MANUAL
|
|
| 16. |
023-00053
|
[1] |
MAINTENANCE MANUAL
|
|
| 17. |
190-00567A
|
[1] |
PLATE;NAME
|
|
| 2. |
471-00042
|
[1] |
FILTER;SUCTION
|
|
| 3. |
471-00034
|
[1] |
FILTER;RETURN
|
|
| 4. |
474-00026
|
[1] |
ELEMENT;AIRCLEANER
|
|
| 5. |
474-00030
|
[1] |
FILTER;FUEL
|
MM435190
|
| 7. |
471-00077
|
[1] |
FILTER;ENGINE OIL
|
30A40-00103
|
| 8. |
2106-1018D5
|
[1] |
BELT;ENGINE FAN
|
MD079696
|
| 9. |
515-00001
|
[4] |
BULB 12V 1.2W
|
|
