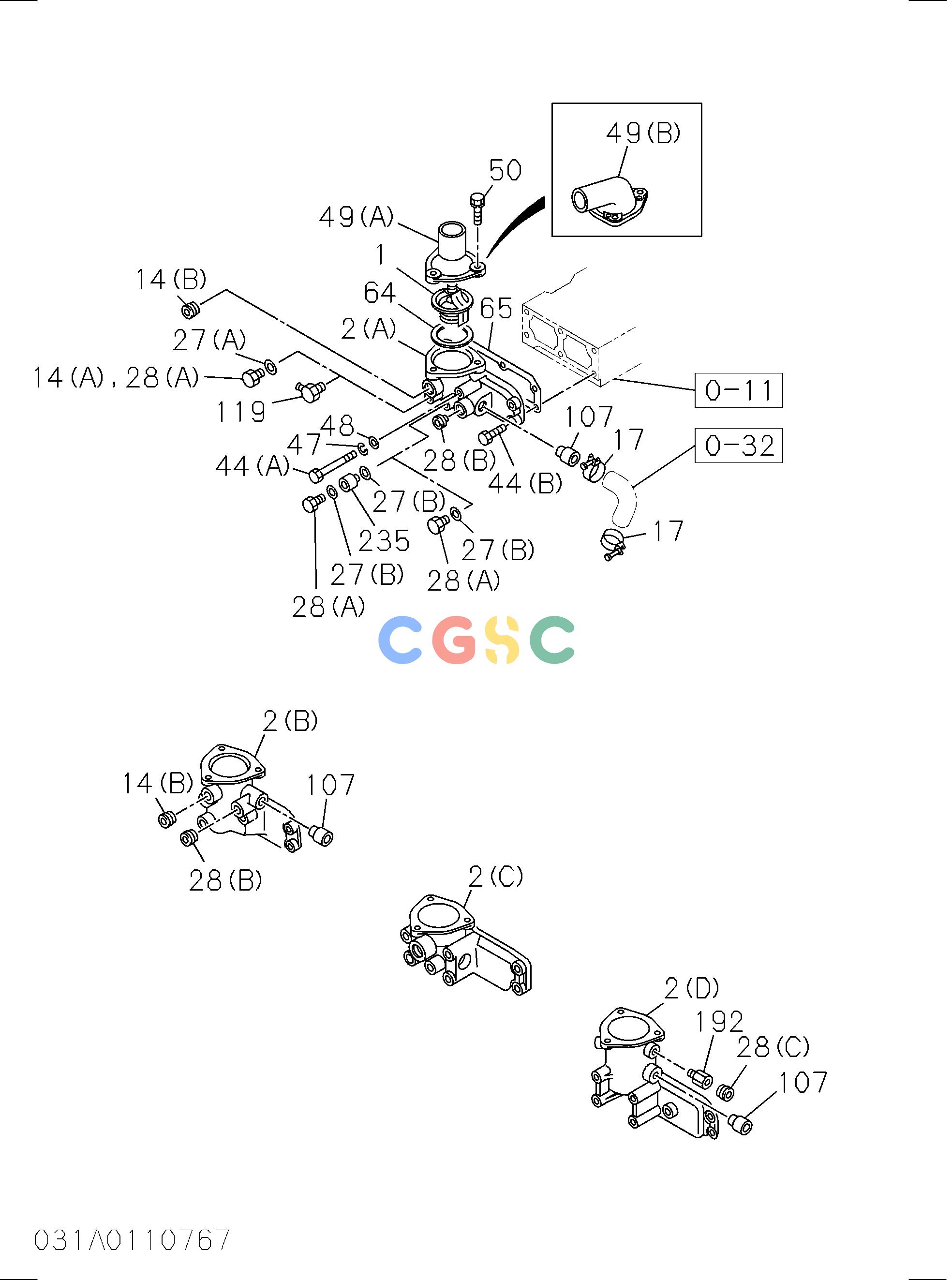

日立零件查询（CG45）THERMOSTAT AND HOUSING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
811 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1137700700 | [1] | THERMOSTAT | 82-95ﾟC |
| 2(A). | 5137160260 | [1] | HOUSING; THERMOSTAT | |
| 14(A). | 9096610050 | [1] | PLUG; SW | M16X8 |
| 14(B). | 9096640050 | [1] | PLUG; SW | PT3/4 |
| 17. | 5097040460 | [2] | CLIP; WATER HOSE | |
| 27. | 9095714160 | [1] | GASKET; SW | ID=16.2 OD=24 |
| 28(B). | 9096620340 | [1] | PLUG; HTR | M25 |
| 44(A). | 0108060950 | [3] | BOLT; HSG TO HD | |
| 44(B). | 0501410350 | [3] | BOLT; HSG TO HD | A |
| 44(B). | 0286810350 | [3] | BOLT; HSG TO HD | |
| 47. | 9091505100 | [3] | WASHER; LK,THERMOSTAT HSG | |
| 48. | 9091605100 | [3] | WASHER; PL,THERMOSTAT HSG | |
| 49(A). | 1137130370 | [1] | PIPE; WATER OUTLET | |
| 50. | 0501408250 | [3] | BOLT; OUTLET PIPE | |
| 64. | 1137430160 | [1] | GASKET; OUTLET PIPE TO HSG | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 65. | 1137410100 | [1] | GASKET; HSG TO HD | C ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 65. | 1137410130 | [1] | GASKET; HSG TO HD | C ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 65. | 8972357891 | [1] | GASKET; HSG TO HD | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 107. | 5137210152 | [1] | PIPE; WATER,BYPASS | |
| 107. | 8972533621 | [1] | PIPE; WATER,BYPASS | |
