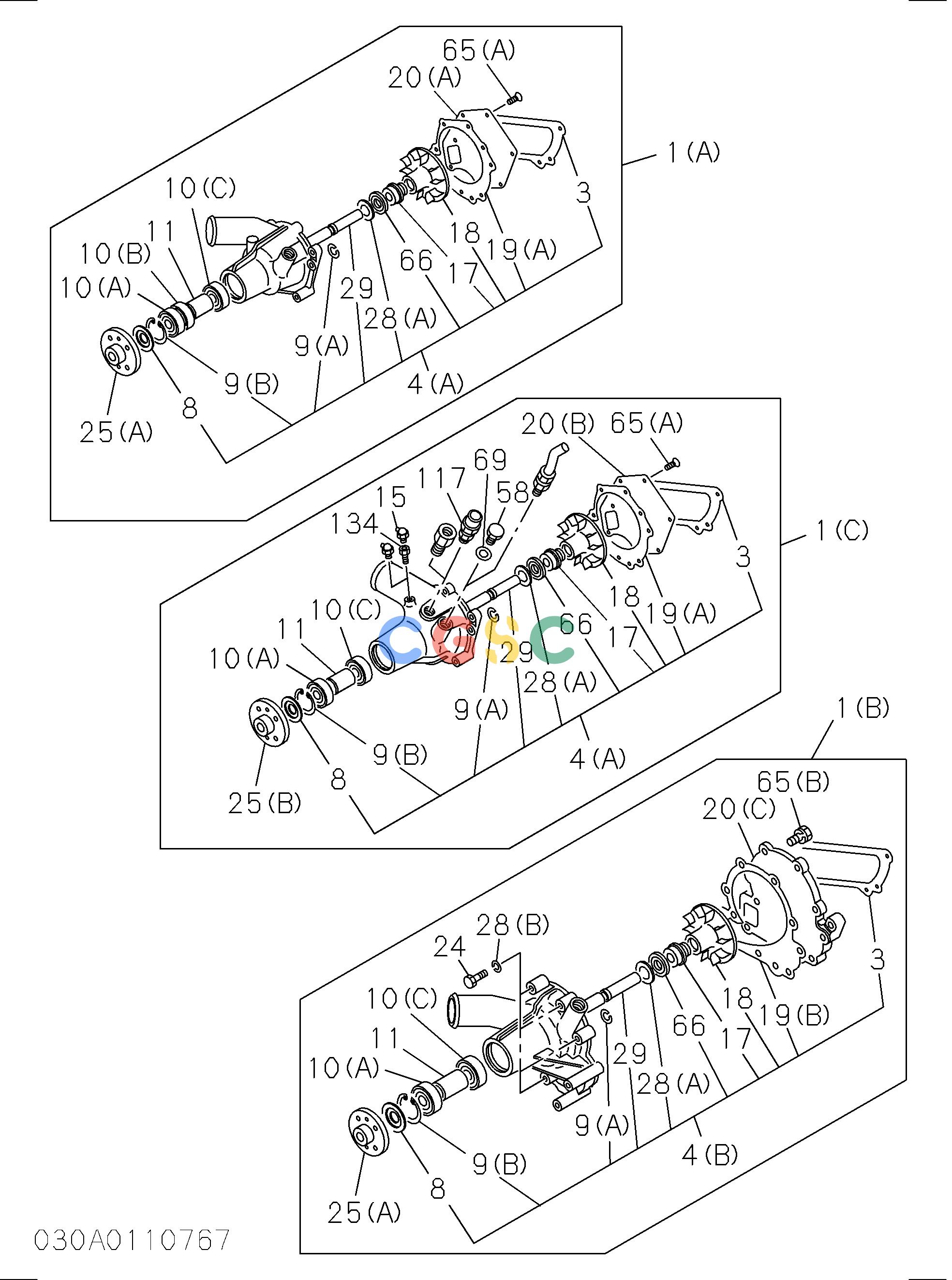

日立零件查询（CG45）WATER PUMP AND CORROSION RESISTOR Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
115 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(A). | 1136500181 | [1] | PUMP ASM; WATER,W/GASKET | |
| 3. | 1136140131 | [1] | GASKET; PUMP TO C/BL | C ALSO INCLUDED IN GASKET SET(ENGINE) |
| 3. | 8943706610 | [1] | GASKET; PUMP TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 4(A). | 1878107741 | [1] | REPAIR KIT; WATER PUMP | |
| 4(A). | 1878112530 | [1] | REPAIR KIT; WATER PUMP | |
| 7. | 5136410171 | [1] | PULLEY; WATER PUMP | A 2-GROOVE |
| 7. | 1136411650 | [1] | PULLEY; WATER PUMP | 2-GROOVE |
| 8. | 5136390010 | [1] | THROWER; DUST,WATER PUMP | |
| 9(A). | 9099521430 | [1] | RING; SNAP,WATER PUMP | |
| 9(B). | 9091801520 | [2] | RING; SNAP,WATER PUMP | |
| 10(A). | 5098000510 | [1] | BEARING; WATER PUMP | |
| 10(C). | 5098000500 | [1] | BEARING; WATER PUMP | |
| 11. | 5136340020 | [2] | SPACER; BRG,WATER PUMP | |
| 17. | 5136200062 | [1] | SEAL UNIT; WATER PUMP | |
| 17. | 1136200230 | [1] | SEAL UNIT; WATER PUMP | |
| 18. | 9136218020 | [2] | IMPELLER; WATER PUMP | |
| 18. | 9136218020 | [1] | IMPELLER; WATER PUMP | |
| 18. | 9136218020 | [2] | IMPELLER; WATER PUMP | |
| 19(A). | 9136136130 | [2] | GASKET; COVER TO BODY | |
| 20(A). | 9136128020 | [1] | COVER; WATER PUMP | |
| 24. | 5090300101 | [1] | BOLT; WATER PUMP | A M10X75 |
| 24. | 0280810700 | [1] | BOLT; WATER PUMP | |
| 24. | 0500410500 | [2] | BOLT; WATER PUMP | A |
| 24. | 0280810500 | [2] | BOLT; WATER PUMP | |
| 24. | 0500410350 | [1] | BOLT; WATER PUMP | A |
| 24. | 0286810350 | [1] | BOLT; WATER PUMP | |
| 25(A). | 5136420072 | [2] | CENTER; WATER PUMP | |
| 28(A). | 1095030700 | [2] | WASHER; WATER PUMP | |
| 29. | 5136310090 | [1] | SHAFT; WATER PUMP | |
| 29. | 1136310740 | [1] | SHAFT; WATER PUMP | |
| 65(A). | 9030908200 | [3] | SCREW; COVER,WATER PUMP | |
| 66. | 5096250550 | [1] | SEAL; SECONDARY | |
| 117. | 1096601192 | [1] | CONNECTOR; BYPASS | |
| 117. | 8972498951 | [1] | CONNECTOR; BYPASS | |
