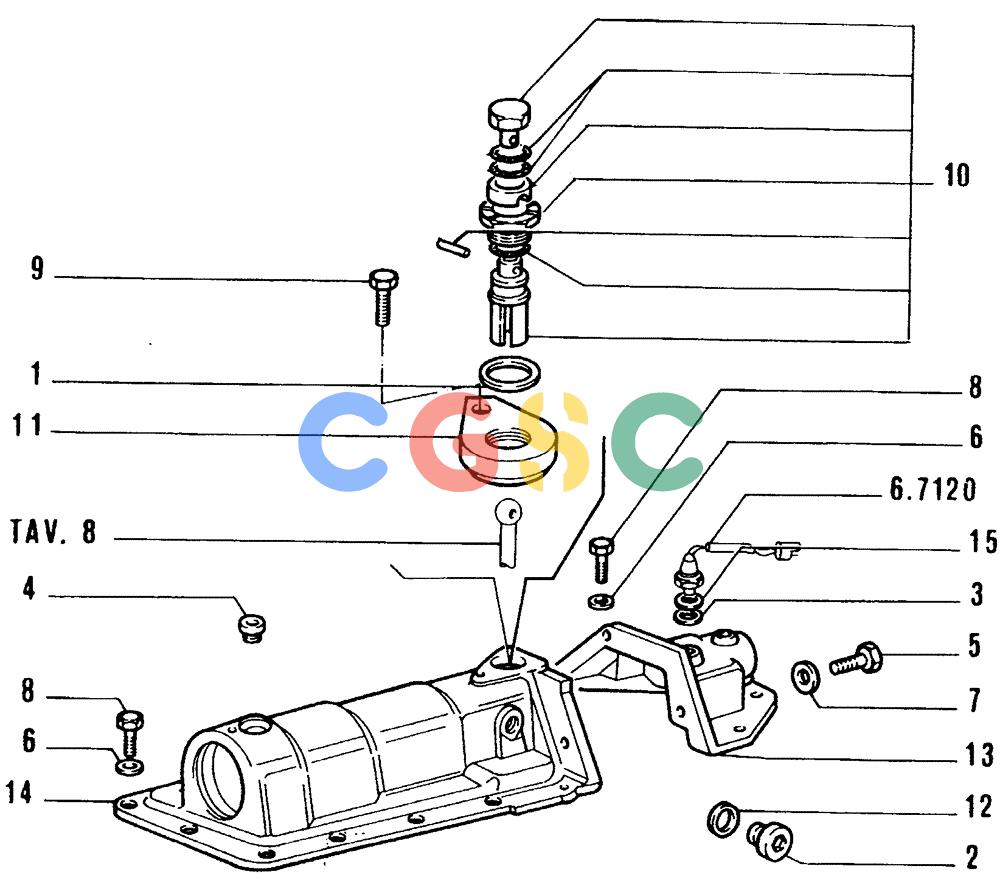

纽荷兰零件查询(FD14E) - CRAWLER DOZER (1.2770[009]) - REAR TRANSMISSION-STEERING BRAKE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
353 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 10264950 | [2] | SEAL | MKT30,3x36 |
| 2. | 10276711 | [4] | PLUG | MKT35x1,5x13 Superseded by part number: 10276740 |
| 3. | 10279760 | [1] | SEALING WASHER,14.2mm ID x 20mm OD x 0.5mm Thk | JESGASKET 14,2x20 |
| 4. | 10118740 | [4] | PLUG,M14 x 1.5 x 15, Brass | LEC |
| 5. | 11408334 | [6] | BOLT,Hex, M14 x 1.5 x 35, 10.9, Full Thd | TTFSCREW Superseded by part number: 11408331 |
| 6. | 14496731 | [30] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 7. | 14496831 | [6] | WASHER,15mm ID x 28mm OD x 2.5mm Thk | LEC14,4x28 |
| 8. | 15540934 | [30] | SCREW,Hex, M12 x 1.25 x 55mm, Cl 10.9 | JES Superseded by part number: 15540931 |
| 9. | 16043434 | [2] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | LEC Superseded by part number: 16043431 |
| 10. | 79014392 | [2] | SLIDE GUIDE | LECGUIDE - ASSEMBLY |
| 11. | 79083878 | [2] | SUPPORT | LEC |
| 12. | 79086162 | [4] | SEAL,36.45mm ID x 44.6mm OD x 3.4mm Thk | LEC |
| 13. | 79086554 | [1] | COVER | LEC- FRONT RIGHT |
| 13. | 79086555 | [1] | COVER | LEC- FRONT LEFT |
| 14. | 79087786 | [1] | COVER | LEC- REAR RIGHT |
| 14. | 79087787 | [1] | COVER | LEC- REAR LEFT |
| 15. | 79086880 | [1] | SEAL,14.3mm ID x 20mm OD x 0.2mm Thk | LEC |
