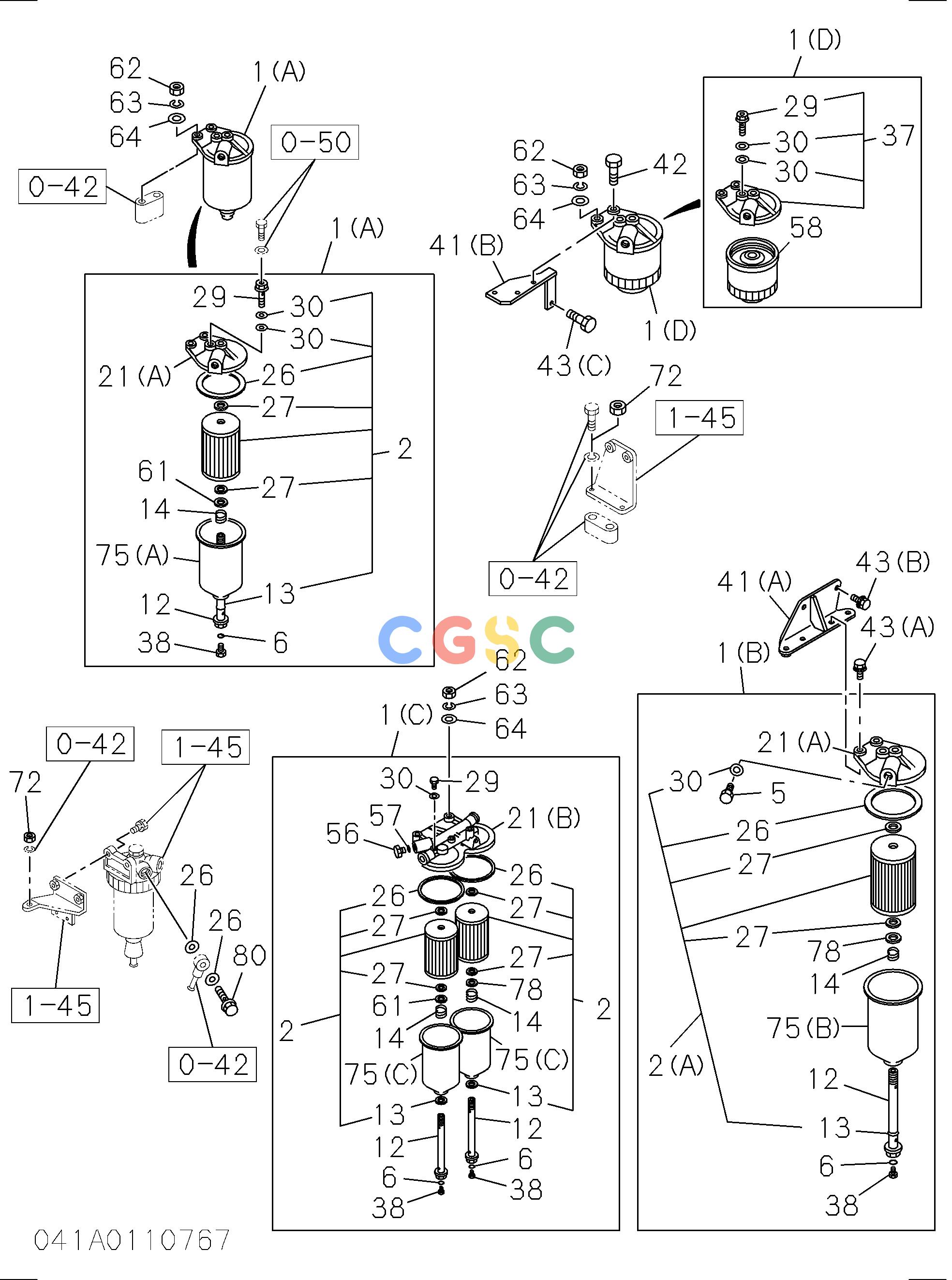

日立零件查询（CG45）FUEL FILTER AND BRACKET Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
788 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1(A). | 1132003322 | [1] | FILTER ASM; FUEL | |
| 2. | 9885111911 | [1] | ELEMENT KIT; FUEL FILTER | |
| 6. | 9099202550 | [1] | GASKET; FUEL FILTER | |
| 12. | 1132310330 | [1] | BOLT; CENTER,FUEL FILTER | |
| 13. | 9097205410 | [1] | GASKET; CENTER BOLT | |
| 14. | 9097421090 | [1] | SPRING; ELEMENT SUPPORT,FUEL FILTER | |
| 21(A). | 9132128040 | [1] | COVER; UPR,FUEL FILTER | |
| 26. | 9132136010 | [1] | GASKET; COVER TO BODY | |
| 27. | 9097205420 | [2] | GASKET; ELEMENT | |
| 29. | 1132600470 | [1] | VALVE; OVERFLOW | |
| 30. | 1096300850 | [2] | GASKET; OVERFLOW VLV | |
| 38. | 9098620680 | [1] | PLUG; DRAIN | |
| 61. | 9096510680 | [1] | SEAT; SPR ELEMENT | |
| 62. | 9091104100 | [2] | NUT; FUEL FILTER | |
| 63. | 9091505100 | [2] | WASHER; LK,FUEL FILTER | |
| 64. | 9091605100 | [2] | WASHER; PL,FUEL FILTER | |
| 75(A). | 5132110151 | [1] | BODY; FUEL FILTER | |
